RU20LHV-QR (1977)

Toyota Dyna

Production Aug 1977 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)HRF,SRF

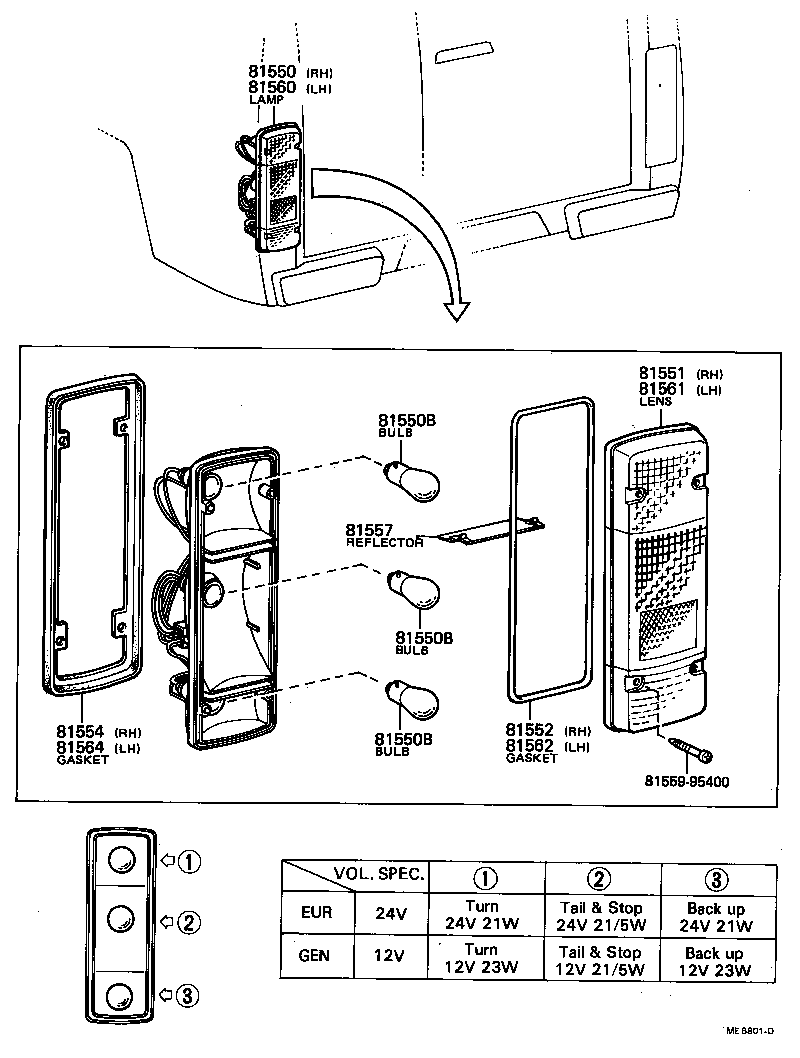

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81552 81554 81557 8155995400 81560 81561 81562 81564
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-92607

BU20,RU20..(HRF,SRF)..GEN

12V

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 23W,12V 23W

 4
99132-21210

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 23W,12V 23W

 4
99132-21210

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 23W,12V 23W

 4
99132-21210

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 21/5W,12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-92605

BU20,RU20..(HRF,SRF)..GEN

AMBER-RED-CLEAR

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95400

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-92605

BU20,JU20,RU20..HRF,SRF

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81550-92607

BU20,RU20..(HRF,SRF)..GEN

12V

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81551-92605

BU20,RU20..(HRF,SRF)..GEN

AMBER-RED-CLEAR

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-95400

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-92605

BU20,JU20,RU20..HRF,SRF

 1
Common parts
81559-95400
