RU20L-QR (1977)

Toyota Dyna

Production Aug 1977 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU20,RU20..T1,TW1

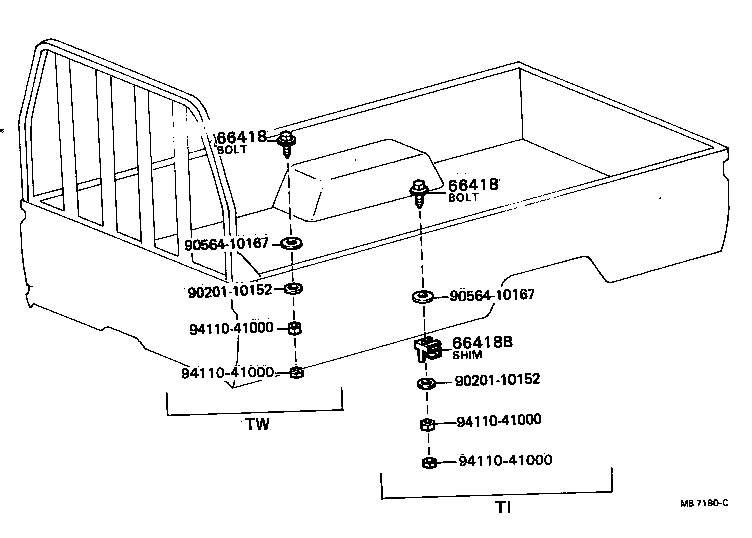

Click highlighted areas on diagram

diagram 66418 66418 66418B 9020110152 9020110152 9056410167 9056410167 9411041000 9411041000 9411041000 9411041000
Part # Description Qty Price
66418 - BOLT, MOUNTING
66418-95400

BU20,RU20..T1,TW1

TYPE A

 4
90119-10004

BU20,RU20..T1,TW1

TYPE B

 6
66418 - BOLT, MOUNTING
66418-95400

BU20,RU20..T1,TW1

TYPE A

 4
90119-10004

BU20,RU20..T1,TW1

TYPE B

 6
66418B - SHIM, MOUNTING
66439-95400

BU20,RU20..T1,TW1

 1
Common parts
90201-10152
90564-10167
94110-41000
