RU20L-QR (1977)

Toyota Dyna

Production Aug 1977 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU20,RU20..T1,TW1

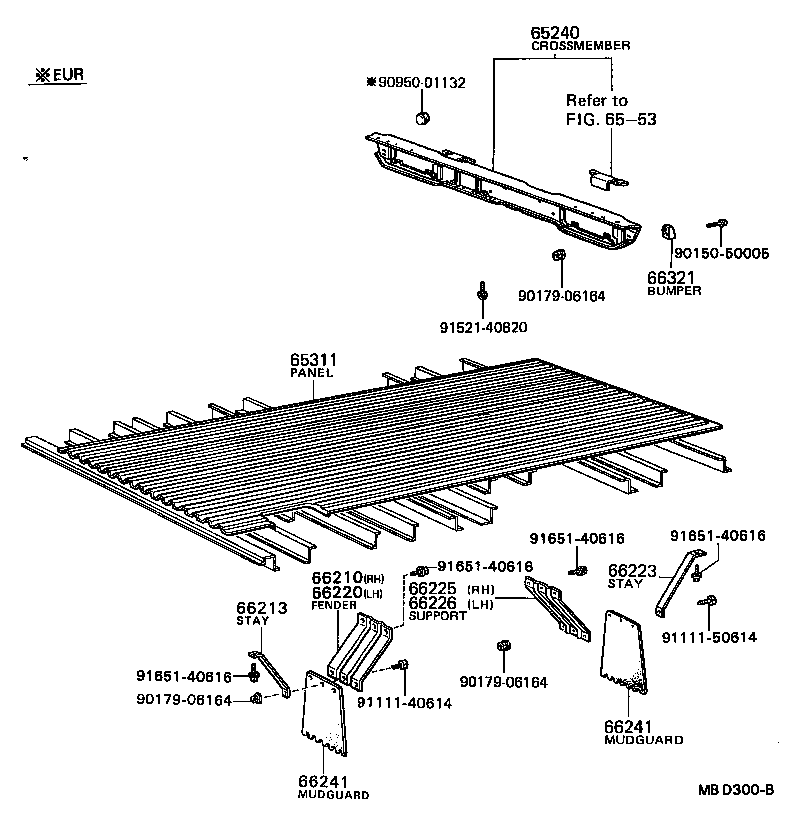

Click highlighted areas on diagram

diagram 65240 65311 6553 66210 66213 66220 66223 66225 66226 66241 66241 66321 9015050005 9017906164 9017906164 9017906164 9095001132 9111140614 9111150614 9152140820 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95418

BU20,RU20..T1,TW1

 1
65311 - PANEL, FLOOR, CENTER
65311-95407

BU20,RU20..T1

 1
66223 - STAY, REAR FENDER REAR PLATE
66223-95405

BU20,RU20..T1,TW1

 2
66225 - SUPPORT, REAR MUDGUARD, RH
66225-95012

BU20,RU20..T1,TW1

 1
66226 - SUPPORT, REAR MUDGUARD, LH
66225-95012

BU20,RU20..T1,TW1

 1
66241 - MUDGUARD, REAR
66241-95600

BU20,JU20,RU20..ST

 2
66241 - MUDGUARD, REAR
66241-95600

BU20,JU20,RU20..ST

 2
66321 - BUMPER, GATE RUBBER
66321-95013

BU20,RU20..T1,TW1

 2
Common parts
90150-50005
90179-06164
90950-01132
91111-40614
91111-50614
91521-40820
91651-40616
Linked diagrams
6553
