RU20L-KRP (1979)

Toyota Dyna

Production Dec 1979 - Apr 1981
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8104)H

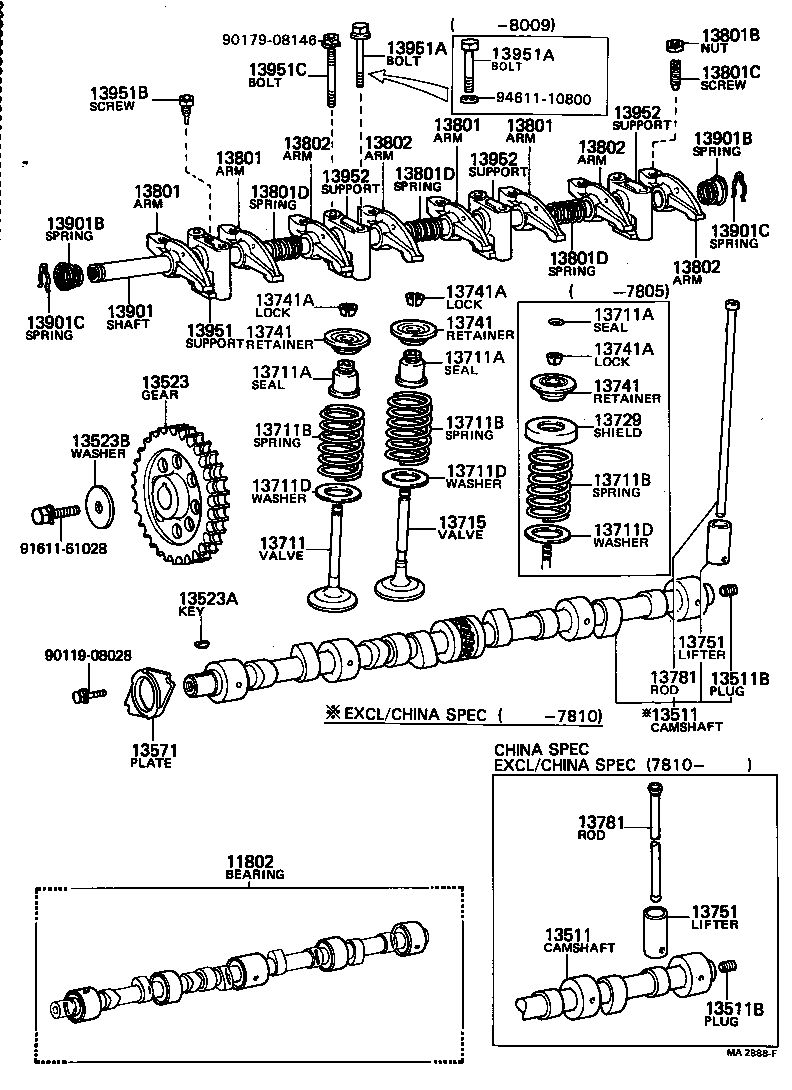

Click highlighted areas on diagram

diagram 11802 13511 13511B 13523 13523A 13523B 13571 13571A 13711 13711A 13711A 13711B 13711B 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801 13801 13801 13801 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13801D 13901 13901B 13901C 13951 13951A 13951B 13951C 13951D 13952 13952 13952 13952 13952 9161160820 9161160850 9161161025 9411040800 9453100800 9453100800
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11802-40011

5R..RU2#,30

STD

 1
11803-40011

5R..RU2#,30

U/S 0.125

 1
11804-40011

5R..RU2#,30

U/S 0.250

 1
13511 - CAMSHAFT
13511-49016

5R..RU2#,30

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90344-51003

5R..RU2#,30

L=9,S=9

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13522-33010

5R..RU2#,30

N=36

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
95161-10519

5R..RU2#,30

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10227

5R..RU2#,30

OD=40,ID=10.5

 1
13571 - PLATE, CAMSHAFT THRUST
13571-44011

5R..RU2#,30

 1
13711 - VALVE, INTAKE
13711-44012

5R..RU2#,30

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

5R..RU2#,30

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

5R..RU2#,30

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-44777

5R..RU2#,30

WD=4.4,CW=6.3

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-44777

5R..RU2#,30

WD=4.4,CW=6.3

 8
13715 - VALVE, EXHAUST
13715-44021

5R..RU2#,30

 4
13741 - RETAINER, VALVE SPRING
13741-44011

5R..RU2#,30

 8
13741 - RETAINER, VALVE SPRING
13741-44011

5R..RU2#,30

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03013

5R..RU2#,30

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03013

5R..RU2#,30

 16
13751 - LIFTER, VALVE
13751-44014

5R..RU2#,30

STD

 8
13755-44014

5R..RU2#,30

O/S 0.05

 8
13781 - ROD, VALVE PUSH
13781-44011

5R..RU2#,30

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-10074

5R..RU2#,30

 8
13801C - SCREW, VALVE ADJUSTING
90913-05010

5R..RU2#,30

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-44010

5R..RU2#,30

 1
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-16004

5R..RU2#,30

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-15008

5R..RU2#,30

 2
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-44020

5R..RU2#,30

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01009

5R..RU2#,30

*8-1.25PX64.5-15

 6
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
90109-06014

5R..RU20,30

 1
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08241

5R..RU2#,30

L=76,S=12&18

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
Common parts
91611-60820
91611-60850
91611-61025
94110-40800
94531-00800

(7708-8008)B

Click highlighted areas on diagram

diagram 11802 13511 13511B 13523 13523A 13523B 13571 13711 13711A 13711A 13711C 13711C 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13951 13951A 13951A 13951B 13951C 13951D 13952 13952 13952 13953 9161140818 9161161025
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11802-40011

5R..RU2#,30

STD

 1
11803-40011

5R..RU2#,30

U/S 0.125

 1
11804-40011

5R..RU2#,30

U/S 0.250

 1
13511 - CAMSHAFT
13511-49016

5R..RU2#,30

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90344-51003

5R..RU2#,30

L=9,S=9

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13522-33010

5R..RU2#,30

N=36

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
95161-10519

5R..RU2#,30

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10227

5R..RU2#,30

OD=40,ID=10.5

 1
13571 - PLATE, CAMSHAFT THRUST
13571-44011

5R..RU2#,30

 1
13711 - VALVE, INTAKE
13711-44012

5R..RU2#,30

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

5R..RU2#,30

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

5R..RU2#,30

 8
13715 - VALVE, EXHAUST
13715-44021

5R..RU2#,30

 4
13741 - RETAINER, VALVE SPRING
13741-44011

5R..RU2#,30

 8
13741 - RETAINER, VALVE SPRING
13741-44011

5R..RU2#,30

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03013

5R..RU2#,30

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03013

5R..RU2#,30

 16
13751 - LIFTER, VALVE
13751-44014

5R..RU2#,30

STD

 8
13755-44014

5R..RU2#,30

O/S 0.05

 8
13781 - ROD, VALVE PUSH
13781-44011

5R..RU2#,30

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-10074

5R..RU2#,30

 8
13801C - SCREW, VALVE ADJUSTING
90913-05010

5R..RU2#,30

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-44010

5R..RU2#,30

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-44020

5R..RU2#,30

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01009

5R..RU2#,30

*8-1.25PX64.5-15

 6
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01009

5R..RU2#,30

*8-1.25PX64.5-15

 6
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
90109-06014

5R..RU20,30

 1
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08241

5R..RU2#,30

L=76,S=12&18

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
Common parts
91611-40818
91611-61025

(7708-8408)5R

Click highlighted areas on diagram

diagram 11802 13511 13511 13511B 13511B 13523 13523A 13523B 13571 13711 13711A 13711A 13711A 13711B 13711B 13711B 13711D 13711D 13711D 13715 13729 13741 13741 13741 13741A 13741A 13741A 13751 13751 13781 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13802 13802 13802 13802 13901 13901B 13901B 13901C 13901C 13951 13951A 13951A 13951B 13951C 13952 13952 13952 9011908028 9017908146 9161161028 9461110800
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11802-40011

5R..RU2#,30

STD

 1
11803-40011

5R..RU2#,30

U/S 0.125

 1
11804-40011

5R..RU2#,30

U/S 0.250

 1
13511 - CAMSHAFT
13511-49016

5R..RU2#,30

 1
13511 - CAMSHAFT
13511-49016

5R..RU2#,30

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90344-51003

5R..RU2#,30

L=9,S=9

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90344-51003

5R..RU2#,30

L=9,S=9

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13522-33010

5R..RU2#,30

N=36

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
95161-10519

5R..RU2#,30

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10227

5R..RU2#,30

OD=40,ID=10.5

 1
13571 - PLATE, CAMSHAFT THRUST
13571-44011

5R..RU2#,30

 1
13711 - VALVE, INTAKE
13711-44012

5R..RU2#,30

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

5R..RU2#,30

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

5R..RU2#,30

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

5R..RU2#,30

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-44777

5R..RU2#,30

WD=4.4,CW=6.3

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-44777

5R..RU2#,30

WD=4.4,CW=6.3

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-44777

5R..RU2#,30

WD=4.4,CW=6.3

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16002

5R..RU2#,30

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16002

5R..RU2#,30

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16002

5R..RU2#,30

 8
13715 - VALVE, EXHAUST
13715-44021

5R..RU2#,30

 4
13729 - SHIELD, VALVE STEM OIL
13729-44010

5R..RU2#,30

 8
13741 - RETAINER, VALVE SPRING
13741-44011

5R..RU2#,30

 8
13741 - RETAINER, VALVE SPRING
13741-44011

5R..RU2#,30

 8
13741 - RETAINER, VALVE SPRING
13741-44011

5R..RU2#,30

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03013

5R..RU2#,30

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03013

5R..RU2#,30

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03013

5R..RU2#,30

 16
13751 - LIFTER, VALVE
13751-44014

5R..RU2#,30

STD

 8
13755-44014

5R..RU2#,30

O/S 0.05

 8
13751 - LIFTER, VALVE
13751-44014

5R..RU2#,30

STD

 8
13755-44014

5R..RU2#,30

O/S 0.05

 8
13781 - ROD, VALVE PUSH
13781-44011

5R..RU2#,30

 8
13781 - ROD, VALVE PUSH
13781-44011

5R..RU2#,30

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-10074

5R..RU2#,30

 8
13801C - SCREW, VALVE ADJUSTING
90913-05010

5R..RU2#,30

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-44010

5R..RU2#,30

 1
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-16004

5R..RU2#,30

 2
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-16004

5R..RU2#,30

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-15008

5R..RU2#,30

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-15008

5R..RU2#,30

 2
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-44020

5R..RU2#,30

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01009

5R..RU2#,30

*8-1.25PX64.5-15

 6
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01009

5R..RU2#,30

*8-1.25PX64.5-15

 6
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
90109-06014

5R..RU20,30

 1
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08241

5R..RU2#,30

L=76,S=12&18

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
Common parts
90119-08028
90179-08146
91611-61028
94611-10800

(8008- )B,2B,3B

Click highlighted areas on diagram

diagram 11802 11802 13511 13511B 13523 13523A 13523B 13571 13711 13711A 13711A 13711B 13711B 13711C 13711C 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13951 13951A 13951A 13951B 13951C 13951D 13952 13952 13952 13953 9020114015 9020114015 9161160818 9161161025 9161161030
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11802-40011

5R..RU2#,30

STD

 1
11803-40011

5R..RU2#,30

U/S 0.125

 1
11804-40011

5R..RU2#,30

U/S 0.250

 1
11802 - BEARING SET, CAMSHAFT
11802-40011

5R..RU2#,30

STD

 1
11803-40011

5R..RU2#,30

U/S 0.125

 1
11804-40011

5R..RU2#,30

U/S 0.250

 1
13511 - CAMSHAFT
13511-49016

5R..RU2#,30

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90344-51003

5R..RU2#,30

L=9,S=9

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13522-33010

5R..RU2#,30

N=36

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
95161-10519

5R..RU2#,30

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10227

5R..RU2#,30

OD=40,ID=10.5

 1
13571 - PLATE, CAMSHAFT THRUST
13571-44011

5R..RU2#,30

 1
13711 - VALVE, INTAKE
13711-44012

5R..RU2#,30

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

5R..RU2#,30

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90301-06096

5R..RU2#,30

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-44777

5R..RU2#,30

WD=4.4,CW=6.3

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-44777

5R..RU2#,30

WD=4.4,CW=6.3

 8
13715 - VALVE, EXHAUST
13715-44021

5R..RU2#,30

 4
13741 - RETAINER, VALVE SPRING
13741-44011

5R..RU2#,30

 8
13741 - RETAINER, VALVE SPRING
13741-44011

5R..RU2#,30

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03013

5R..RU2#,30

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03013

5R..RU2#,30

 16
13751 - LIFTER, VALVE
13751-44014

5R..RU2#,30

STD

 8
13755-44014

5R..RU2#,30

O/S 0.05

 8
13781 - ROD, VALVE PUSH
13781-44011

5R..RU2#,30

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-44021

5R..RU2#,30

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-10074

5R..RU2#,30

 8
13801C - SCREW, VALVE ADJUSTING
90913-05010

5R..RU2#,30

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

5R..RU2#,30

WD=1.6,CW=7.5

 2
90501-16098

5R..RU2#,30

WD=1.6,CW=9

 1
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-44021

5R..RU2#,30

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-44010

5R..RU2#,30

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-44020

5R..RU2#,30

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01009

5R..RU2#,30

*8-1.25PX64.5-15

 6
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01009

5R..RU2#,30

*8-1.25PX64.5-15

 6
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
90109-06014

5R..RU20,30

 1
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08241

5R..RU2#,30

L=76,S=12&18

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-44020

5R..RU2#,30

 3
Common parts
90201-14015
91611-60818
91611-61025
91611-61030
