RU20L-KRBT (1979)

Toyota Dyna

Production Dec 1979 - Apr 1981
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)4F,4H

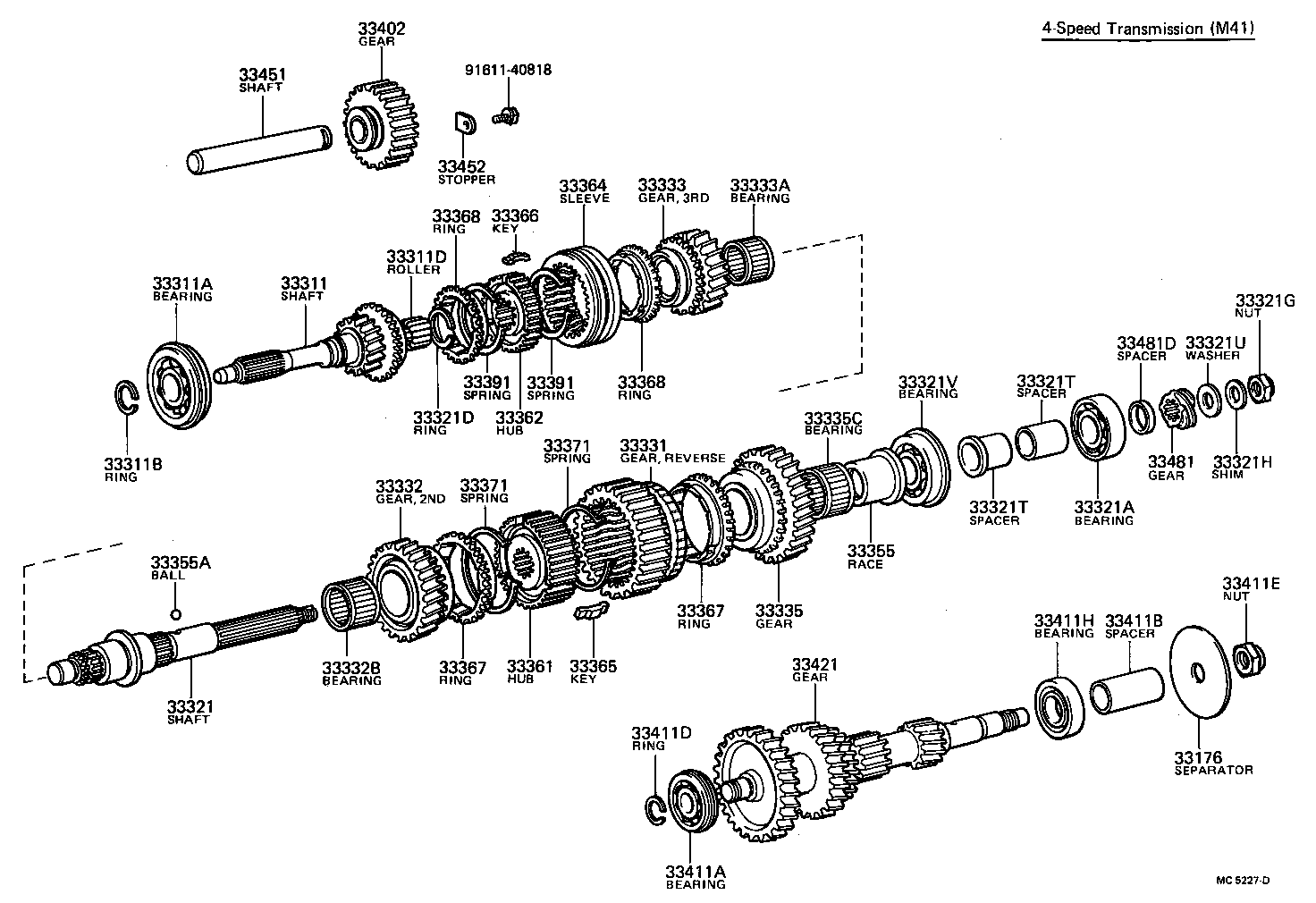

Click highlighted areas on diagram

diagram 33176 33311 33311A 33311B 33311D 33321 33321A 33321D 33321G 33321H 33321T 33321T 33321U 33321V 33331 33332 33332B 33333 33333A 33335 33335C 33355 33355A 33361 33362 33364 33365 33366 33367 33367 33368 33368 33371 33371 33391 33391 33402 33411A 33411B 33411D 33411E 33411H 33421 33451 33452 33481 33481D 9161140818
Part # Description Qty Price
33176 - SEPARATOR, MANUAL TRANSMISSION OIL, NO.1
33176-36010

RU20,30..4F,4H

 1
33311 - SHAFT, INPUT
33311-36060

BU20,30,JU20,RU20,30

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-35002

BU20,30,JU20,RU20,30

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-33107

BU20,30,JU20,RU20,30

T=2.30-2.35,MARK 11,T=2.30-2.35

 1
90520-33108

BU20,30,JU20,RU20,30

T=2.40,MARK 13,T=2.40-2.45

 1
90520-33132

BU20,30,JU20,RU20,30

T=2.35-2.40,MARK 12,T=2.35-2.40

 1
90520-33134

BU20,30,JU20,RU20,30

T=2.55,MARK 16,T=2.55-2.60

 1
90520-33133

BU20,30,JU20,RU20,30

T=2.45,MARK 14,T=2.45-2.50

 1
90520-33109

BU20,30,JU20,RU20,30

T=2.50,MARK 15,T=2.50-2.55

 1
33311D - BEARING, INPUT SHAFT
90361-06049

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 17
33321 - SHAFT, OUTPUT
33321-36050

BU20,30,JU20,RU20,30

 1
33321-36051

BU20,30,RU20,30

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
97104-06232

BU2#,30,HU30,RU2#,30

 1
90363-32011

BU20,30,RU20,30

 1
97103-06232

BU2#,30,HU30,JU20,RU2#,30

 1
33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET)
90520-36251

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

T=2.45-2.50,T=2.45-2.50

 1
90520-36250

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

T=2.40-2.45,T=2.40-2.45

 1
90520-36254

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

T=2.60-2.65,T=2.60-2.65

 1
90520-36252

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

T=2.50-2.55,T=2.50-2.55

 1
90520-36253

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

T=2.55-2.60,T=2.55-2.60

 1
90520-36255

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

T=2.65-2.70,T=2.65-2.70

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-20061

BU2#,30,HU30,JU20,RU2#,30

 1
33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING)
90564-21143

BU20,30,JU20,RU20,30

 1
33321T - SPACER (FOR OUTPUT SHAFT)
90560-32002

RU20,30..4F,4H

FR

 1
90561-32001

RU20,30..4F,4H

RR

 1
33321T - SPACER (FOR OUTPUT SHAFT)
90560-32002

RU20,30..4F,4H

FR

 1
90561-32001

RU20,30..4F,4H

RR

 1
33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
90201-20479

BU2#,30,HU30,JU20,RU2#,30

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90363-35011

BU20,30,RU20,30

 1
97153-06307

BU20,30,JU20,RU20,30

 1
33331 - GEAR, REVERSE
33331-36024

BU20,30,JU20,RU20,30

 1
33332 - GEAR, 2ND
33332-36020

BU20,30,JU20,RU20,30

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-46053

BU20,30,JU20,RU20,30

 1
33333 - GEAR, 3RD
33333-36021

BU20,30,JU20,RU20,30

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-43042

BU20,30,JU20,RU20,30

 1
33335 - GEAR, 1ST
33335-36060

JU20,RU20,30

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90364-46053

BU20,30,JU20,RU20,30

 1
33355 - RACE, 1ST GEAR BEARING INNER
33355-36010

BU20,30,JU20,RU20,30

 1
33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
90360-06004

BU20,25,30,31,32,HU30,JU20,RU2#,30

 2
33361 - HUB, TRANSMISSION CLUTCH, NO.1
33361-36010

BU20,30,JU20,RU20,30

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33362-36021

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-36051

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-36010

BU20,30,JU20,RU20,30

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33366-36020

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 3
33367 - RING, SYNCHRONIZER, NO.1
33367-40012

BU20,30,JU20,RU20,30

1ST

 1
33367-36030

BU20,30,JU20,RU20,30

2ND

 1
33367 - RING, SYNCHRONIZER, NO.1
33367-40012

BU20,30,JU20,RU20,30

1ST

 1
33367-36030

BU20,30,JU20,RU20,30

2ND

 1
33368 - RING, SYNCHRONIZER, NO.2
33368-20012

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 2
33368 - RING, SYNCHRONIZER, NO.2
33368-20012

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-36020

BU20,30,JU20,RU20,30

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-36020

BU20,30,JU20,RU20,30

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-20010

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-20010

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 2
33402 - GEAR SUB-ASSY, REVERSE IDLER
33402-36030

BU20,30,JU20,RU20,30

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90363-30001

BU20,30,JU20,RU20,30

 1
33411B - SPACER(FOR COUNTER GEAR BEARING)
90560-30001

RU20,30..4F,4H

 1
33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
90520-28249

BU20,30,JU20,RU20,30

T=2.10-2.15,MARK G,T=2.1

 1
90520-28246

BU20,30,JU20,RU20,30

T=1.90-1.95,MARK E,T=1.9

 1
90520-28248

BU20,30,JU20,RU20,30

T=2.00-2.05,MARK F,T=2.0

 1
33411E - NUT(FOR COUNTER GEAR SHAFT)
90179-26001

BU20,30,JU20,RU20,30

 1
33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR)
90365-30014

RU20,30..4F,4H

 1
33421 - GEAR, COUNTER
33411-36050

JU20,RU20,30

 1
33411-36051

RU20,30

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-36030

BU20,30,JU20,RU20,30

 1
33452 - STOPPER, REVERSE IDLER GEAR SHAFT
33452-36020

BU20,30,JU20,RU20,30

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-36050

JU20;BU2#,30,HU30..WT;RU20..WT..(EUR,GEN)

N=4,DRIVEN GEAR N=17

 1
33481-36070

RU2#..WT;RU30..ARL,GEN

N=4

 1
33481-36080

BU20,30,RU20,30..WT

N=4

 1
33481-36050

BU2#,30,RU2#,30..WT

N=4

 1
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
33487-36040

BU20,30,RU20,30

 1
33487-36020

BU2#,30,HU30,JU20,RU2#,30

 1
Common parts
91611-40818
