LY235R-TBMFS (2001)
Toyota Dyna
ILLUST NO. 2 OF 2(0107- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-25240 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 31481-37421 |
KDY221,231,LY23#..RHD |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01147 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 31481B - WAY(FOR CLUTCH TUBE) | ||||
| 31495-37010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-25220 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 31481-37480 |
KDY221,231,LY23#..RHD |
1 | ||
| 31481-37620 |
KDY221,231,LY23#..RHD |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-25220 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 31481-37480 |
KDY221,231,LY23#..RHD |
1 | ||
| 31481-37620 |
KDY221,231,LY23#..RHD |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-25200 |
KDY22#,23#,25#,26# |
1 | ||
| 31482-25180 |
LY23# |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 90947-02C64 |
LY225,235 |
1 | ||
| 90947-02C63 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-25100 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 31484-25110 |
LY225,235 |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-25100 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 31484-25110 |
LY225,235 |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-25150 |
LY23# |
1 | ||
| 31484-25140 |
KDY22#,23#,25#,26# |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31488-25020 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 31488-25030 |
LY225,235 |
1 | ||
| Common parts | ||||
| 47371-37140 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91611-G0820 | ||||
| 91651-B0822 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||
ILLUST NO. 1 OF 2(0107-0905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31310-25050 |
KDY22#,23#,25#,LY225,23#..RHD |
1 | ||
| 31310-25070 |
KDY221,231,LY235..RHD..GEN |
1 | ||
| 31310-25030 |
KDY220,230,250,LY22#,23#..RHD |
1 | ||
| 31301-25090 |
KDY221,231,LY235..RHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KDY221,231,LY235 |
4 | ||
| 90541-06036 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LY235..ST;KDY221,231..GEN |
2 | ||
| 90386-13015 |
KDY221,231,LY235 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LY235..ST;KDY221,231..GEN |
2 | ||
| 90386-13015 |
KDY221,231,LY235 |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 91111-41035 |
LY235..RHD |
1 | ||
| 90101-08052 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 91551-80825 |
KDY221,231,LY235 |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-60800 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 94120-41000 |
LY235..RHD |
2 | ||
| 94130-60800 |
KDY221,231,LY235 |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90386-05017 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 90389-06055 |
KDY221,231,LY235 |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03108 |
LY235..ST |
1 | ||
| 31316-25030 |
LY235 |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52020 |
KDY221,231,LY23# |
1 | ||
| 31321-14020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 31323 - BRACKET, CLUTCH PEDAL | ||||
| 55107-25040 |
KDY221,231,LY23#..GEN,SA |
1 | ||
| 55107-25030 |
LY235..ST;KDY221,231,LY225,230..GEN,SA |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91552-81060 |
KDY221,231,LY235 |
1 | ||
| 91112-61070 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 90387-10003 |
KDY221,231,LY235 |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-35010 |
KDY221,231,LY235 |
1 | ||
| 31353-14010 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
KDY22#,23#,25#,26#,LY22#,23# L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| Common parts | ||||
| 90468-16032 | ||||
| 91611-B0816 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| 96160-00600 | ||||

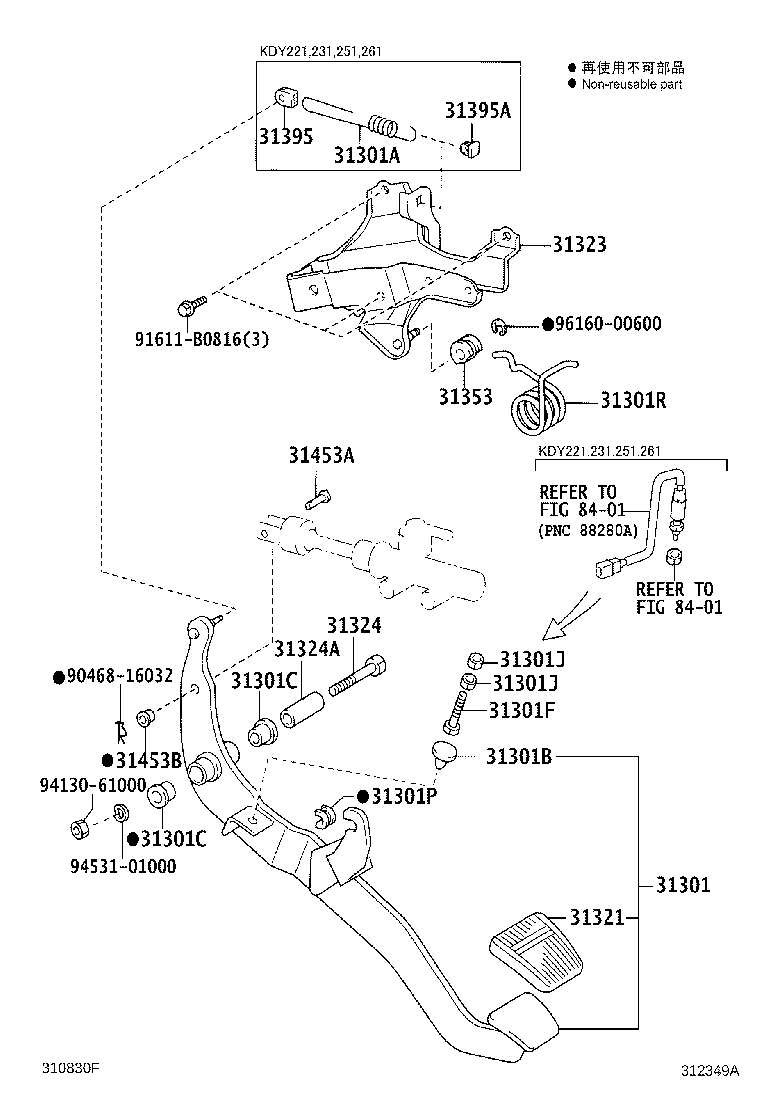

ILLUST NO. 1 OF 2(0905-1610)KDY221,231,251,261,LY225,235 ; (0905-1701)LY230
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31310-25050 |
KDY22#,23#,25#,LY225,23#..RHD |
1 | ||
| 31310-25070 |
KDY221,231,LY235..RHD..GEN |
1 | ||
| 31310-25030 |
KDY220,230,250,LY22#,23#..RHD |
1 | ||
| 31301-25090 |
KDY221,231,LY235..RHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KDY221,231,LY235 |
4 | ||
| 90541-06036 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LY235..ST;KDY221,231..GEN |
2 | ||
| 90386-13015 |
KDY221,231,LY235 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LY235..ST;KDY221,231..GEN |
2 | ||
| 90386-13015 |
KDY221,231,LY235 |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 91111-41035 |
LY235..RHD |
1 | ||
| 90101-08052 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 91551-80825 |
KDY221,231,LY235 |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-60800 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 94120-41000 |
LY235..RHD |
2 | ||
| 94130-60800 |
KDY221,231,LY235 |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-60800 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 94120-41000 |
LY235..RHD |
2 | ||
| 94130-60800 |
KDY221,231,LY235 |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90386-05017 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 90389-06055 |
KDY221,231,LY235 |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03108 |
LY235..ST |
1 | ||
| 31316-25030 |
LY235 |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52020 |
KDY221,231,LY23# |
1 | ||
| 31321-14020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 31323 - BRACKET, CLUTCH PEDAL | ||||
| 55107-25040 |
KDY221,231,LY23#..GEN,SA |
1 | ||
| 55107-25030 |
LY235..ST;KDY221,231,LY225,230..GEN,SA |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91552-81060 |
KDY221,231,LY235 |
1 | ||
| 91112-61070 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 90387-10003 |
KDY221,231,LY235 |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-35010 |
KDY221,231,LY235 |
1 | ||
| 31353-14010 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
KDY22#,23#,25#,26#,LY22#,23# L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| Common parts | ||||
| 90468-16032 | ||||
| 91611-B0816 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

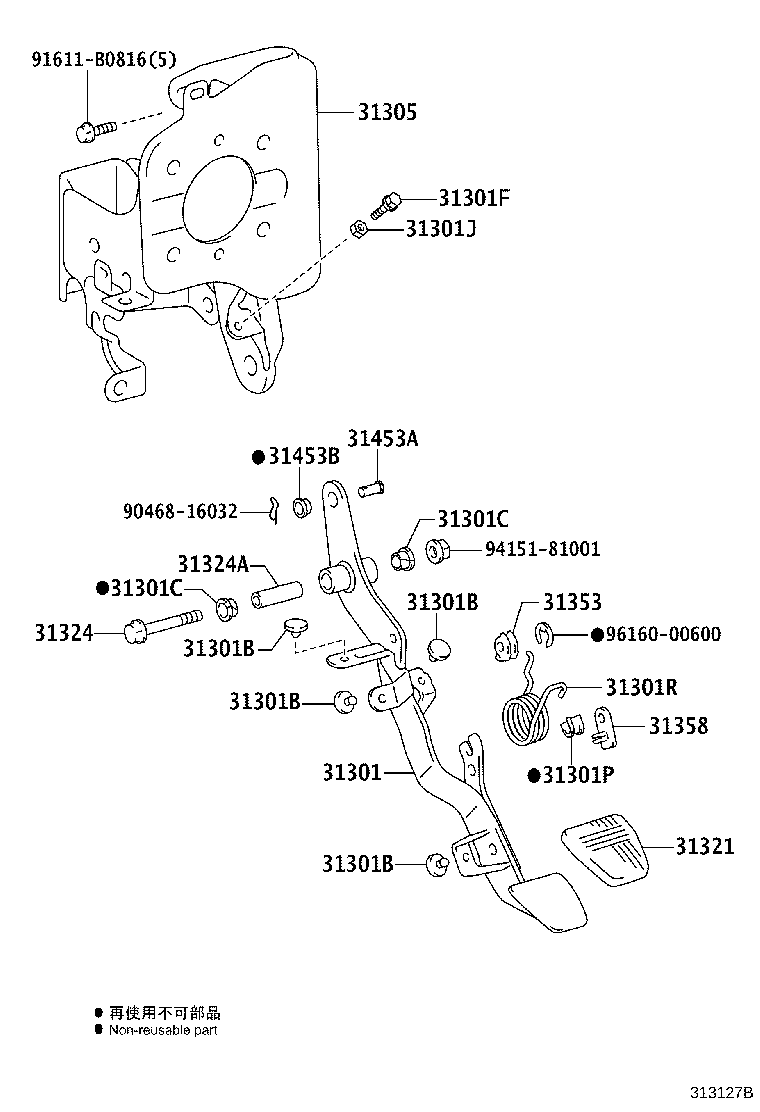

ILLUST NO. 1 OF 2(1610- )KDY221,231,LY235 ; (1701- )LY230
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31310-25030 |
KDY220,230,250,LY22#,23#..RHD |
1 | ||
| 31310-25050 |
KDY22#,23#,25#,LY225,23#..RHD |
1 | ||
| 31310-25070 |
KDY221,231,LY235..RHD..GEN |
1 | ||
| 31301-25090 |
KDY221,231,LY235..RHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KDY221,231,LY235 |
4 | ||
| 90541-06036 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KDY221,231,LY235 |
4 | ||
| 90541-06036 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KDY221,231,LY235 |
4 | ||
| 90541-06036 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KDY221,231,LY235 |
4 | ||
| 90541-06036 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LY235..ST;KDY221,231..GEN |
2 | ||
| 90386-13015 |
KDY221,231,LY235 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LY235..ST;KDY221,231..GEN |
2 | ||
| 90386-13015 |
KDY221,231,LY235 |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 91111-41035 |
LY235..RHD |
1 | ||
| 90101-08052 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 91551-80825 |
KDY221,231,LY235 |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-60800 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 94120-41000 |
LY235..RHD |
2 | ||
| 94130-60800 |
KDY221,231,LY235 |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90386-05017 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 90389-06055 |
KDY221,231,LY235 |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03108 |
LY235..ST |
1 | ||
| 31316-25030 |
LY235 |
1 | ||
| 31305 - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 31305-25010 |
KDY221,231,LY235 |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52020 |
KDY221,231,LY23# |
1 | ||
| 31321-14020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91552-81060 |
KDY221,231,LY235 |
1 | ||
| 91112-61070 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 90387-10003 |
KDY221,231,LY235 |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-35010 |
KDY221,231,LY235 |
1 | ||
| 31353-14010 |
LY235..ST;KDY221,231..GEN |
1 | ||
| 31358 - CAP, OVER CENTER SPRING | ||||
| 31358-42010 |
KDY221,231,LY235 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
KDY22#,23#,25#,26#,LY22#,23# L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| Common parts | ||||
| 90468-16032 | ||||
| 91611-B0816 | ||||
| 94151-81001 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
