LY225L-TBMDS (2001)
Toyota Dyna
Production
Jul 2001
-
Sep 2016
Engine
5L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

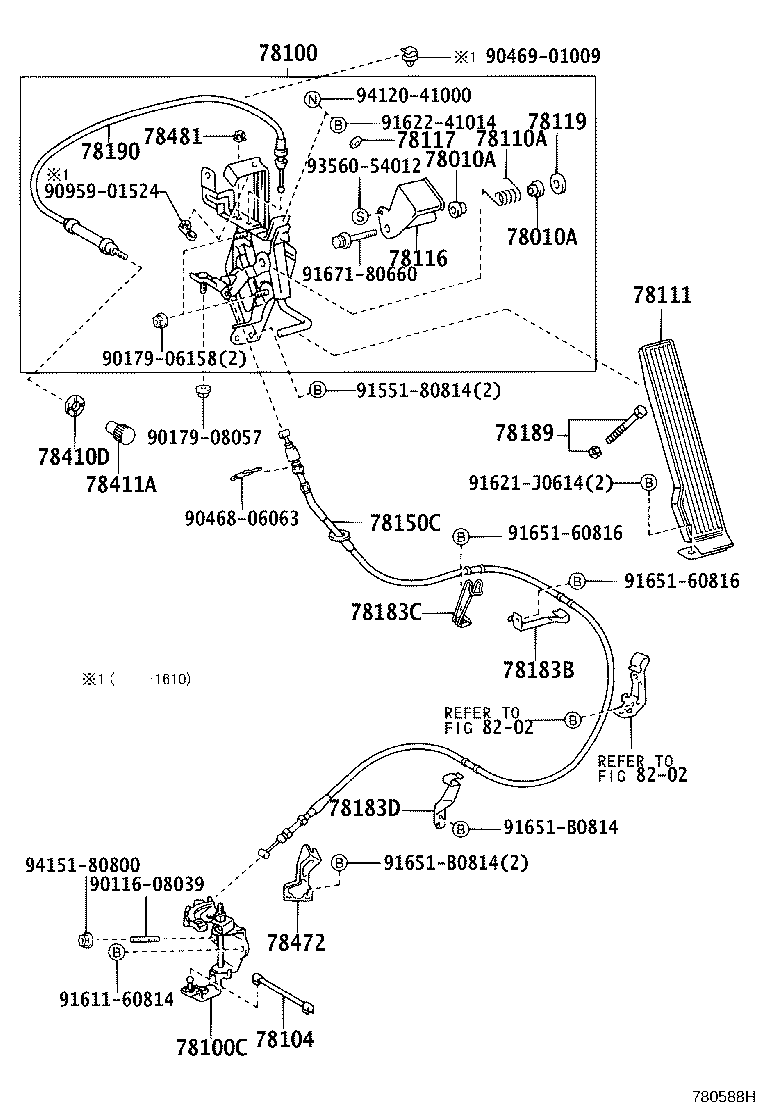

(0107- )LY225,235..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
LY225 |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
LY225 |
2 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-25160 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 78100-25180 |
LY225,235..LHD |
1 | ||
| 78100C - LINK ASSY, ACCELERATOR, NO.2 | ||||
| 78100-25011 |
LY225 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22140 |
LY225 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03330 |
LY225 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-37010 |
LY225..LHD |
1 | ||
| 78111-16010 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 78116 - COVER, ACCELERATOR PEDAL ROD | ||||
| 78116-37010 |
LY225 |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06038 |
LY225 |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-37010 |
LY225 |
1 | ||
| 78119-95J00 |
LY22#,23# |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-37490 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 78150-25190 |
LY225..LHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-25070 |
LY225 |
1 | ||
| 78183C - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-25120 |
LY225..LHD |
1 | ||
| 78183D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-95A12 |
LY225 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-25011 |
LY225..LHD |
1 | ||
| 78208-25010 |
LY225,235..LHD |
1 | ||
| 78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE | ||||
| 78190-25010 |
LY225..LHD |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
LY225 |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-95J01 |
LY225 |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-25011 |
LY225 |
1 | ||
| 78481 - CLAMP, THROTTLE WIRE | ||||
| 78481-37010 |
LY225 |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90179-06158 | ||||
| 90179-08057 | ||||
| 90468-06063 | ||||
| 90469-01009 | ||||
| 90959-01524 | ||||
| 91551-80814 | ||||
| 91611-60814 | ||||
| 91621-J0614 | ||||
| 91622-41014 | ||||
| 91651-60816 | ||||
| 91651-B0814 | ||||
| 91671-80660 | ||||
| 93560-54012 | ||||
| 94120-41000 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

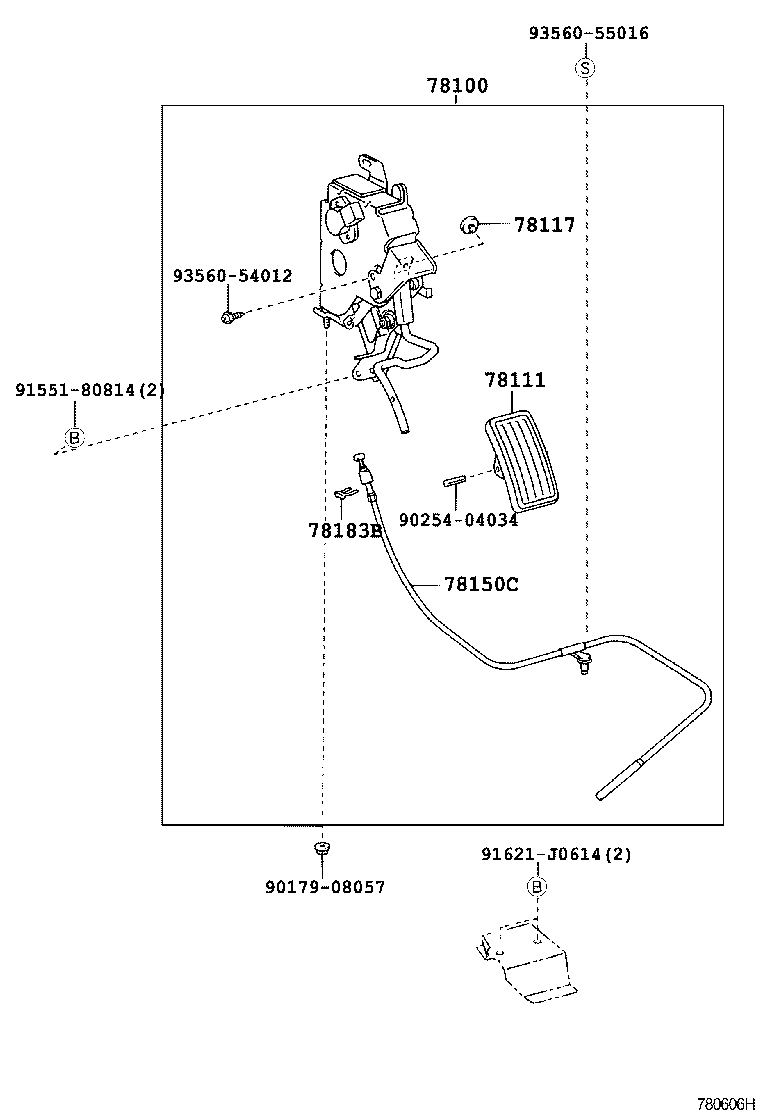

(0108-0907)KDY22#,23#,25#,26#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-25160 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 78100-25180 |
LY225,235..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-37010 |
LY225..LHD |
1 | ||
| 78111-16010 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06038 |
LY225 |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-37490 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 78150-25190 |
LY225..LHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-25070 |
LY225 |
1 | ||
| Common parts | ||||
| 90179-08057 | ||||
| 90254-04034 | ||||
| 91551-80814 | ||||
| 91621-J0614 | ||||
| 93560-54012 | ||||
| 93560-55016 | ||||
