Toyota Dyna LY220 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
DYNA
LY220R-TBMDSQ3 (2001)
4708 - BRAKE TUBE & CLAMP

LY220R-TBMDSQ3 (2001)

Toyota Dyna

Production Jul 2001 - Dec 2004

Engine 5L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(0108- )KDY22#,23#,25#,26# ; (1610- )LY230

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty	Price
Common parts
90099-05277
91641-H0822

ILLUST NO. 1 OF 4(0107- )LY220,230 ; (0108- )KDY220..RHD..IV3 ; (0108- )KDY221,23#,25#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-25410	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 10/2016	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02C65	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02C65	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10052	KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3	07/2001 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-25220	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25220	KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3	07/2001 - 08/2007	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C70	KDY22#,23#,25#,26#,LY220,230 RH	07/2001 - 12/2999	1
90947-02C71	KDY22#,23#,25#,26#,LY220,230 LH	07/2001 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C70	KDY22#,23#,25#,26#,LY220,230 RH	07/2001 - 12/2999	1
90947-02C71	KDY22#,23#,25#,26#,LY220,230 LH	07/2001 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25250	KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3	07/2001 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-25320	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-25270	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47323 - TUBE, REAR BRAKE, NO.3
47323-25210	KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3	07/2001 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-25110	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-25030	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47371C - CLAMP, BRAKE TUBE, NO.7
90480-01275	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 10/2016	2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-25010	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-25030	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01C84	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
Common parts
47256-37020
47371-37110
90464-00726
90468-08035
90480-01054
90480-01275
90480-01621
90949-01A02
90949-01C06
90949-01C58
90959-01605
90959-01616
91611-G0820
91651-B0822
94130-00802
Linked diagrams
3102
4505

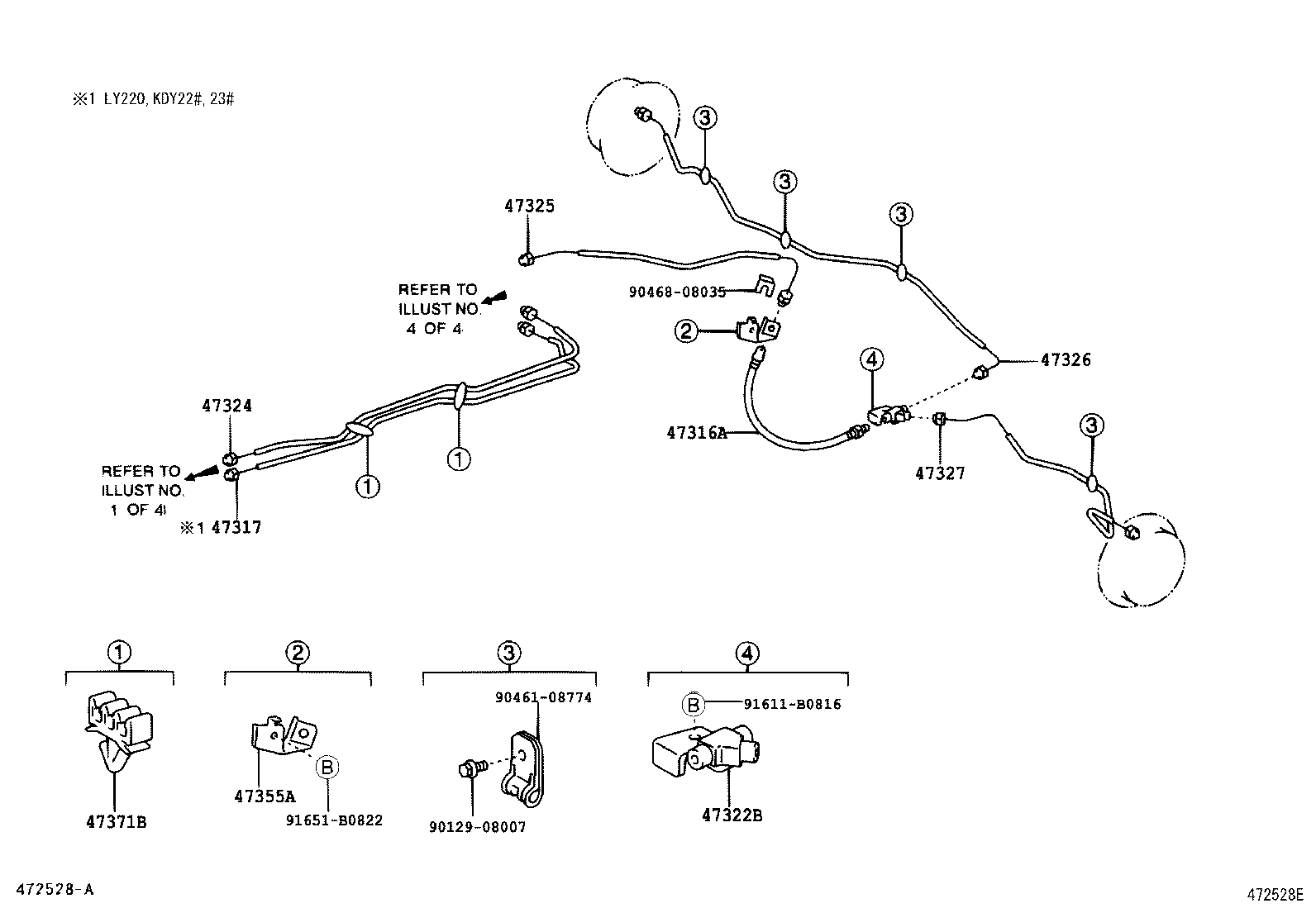

ILLUST NO. 2 OF 4(0107- )LY22# ; (0108- )KDY22#,23#..ST

Click highlighted areas on diagram

Part #	Description	Period	Qty
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C69	KDY22#,23#,LY22#..ST	07/2001 - 09/2016	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-25050	KDY22#,LY220	07/2001 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10216	LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3	07/2001 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-25460	KDY22#,LY22#	07/2001 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-25360	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-25470	KDY22#,23#,LY22#..ST	07/2001 - 09/2016	1
47327 - TUBE, REAR BRAKE, NO.7
47327-25430	KDY22#,23#,LY22#..ST	07/2001 - 09/2016	1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-25020	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01C84	KDY22#,LY22#	07/2001 - 12/2999	1
Common parts
90129-08007
90461-08774
90468-08035
91611-B0816
91651-B0822

ILLUST NO. 1 OF 4(0108- )KDY22#,23#,25#..RHD

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-25410	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 10/2016	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02C65	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02C65	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10052	KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3	07/2001 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-25220	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25220	KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3	07/2001 - 08/2007	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25220	KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3	07/2001 - 08/2007	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C70	KDY22#,23#,25#,26#,LY220,230 RH	07/2001 - 12/2999	1
90947-02C71	KDY22#,23#,25#,26#,LY220,230 LH	07/2001 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C70	KDY22#,23#,25#,26#,LY220,230 RH	07/2001 - 12/2999	1
90947-02C71	KDY22#,23#,25#,26#,LY220,230 LH	07/2001 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25250	KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3	07/2001 - 12/2999	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-25250	KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3	07/2001 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-25320	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-25270	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-25110	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-25030	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	KDY22#,23#,25#,LY22#,23#..RHD	07/2001 - 10/2016	1
47371C - CLAMP, BRAKE TUBE, NO.7
90480-01275	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 10/2016	2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-25010	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-25030	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01C84	KDY22#,23#,25#,26#,LY220,230	07/2001 - 12/2999	1
Common parts
47256-37020
47371-37110
90464-00726
90468-08035
90480-01054
90480-01275
90480-01621
90949-01A02
90949-01C06
90949-01C58
90959-01605
90959-01616
91611-G0820
91651-B0822
94130-00802
Linked diagrams
3102
4505

ILLUST NO. 4 OF 4(0107- )LY22#,23# ; (0108- )KDY22#,23#,25#,26#

Click highlighted areas on diagram

Part #	Description	Period	Qty
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-26040	KDY220,230,250,260,LY22#,23#	07/2001 - 08/2004	1
04477-26060	KDY22#,23#,25#,26#,LY22#,23#	08/2004 - 12/2999	1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-25210	KDY22#,23#,LY220..ST	07/2001 - 02/2015	1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-25260	LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY220;KDY231..ST..IV3	07/2001 - 12/2999	1
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110	KDY22#,23#,25#,26#,LY22#,23#	07/2001 - 12/2999	1
Common parts
90119-08703
91611-B0816
