KDY251L-TBMGYW3 (2006)
Toyota Dyna

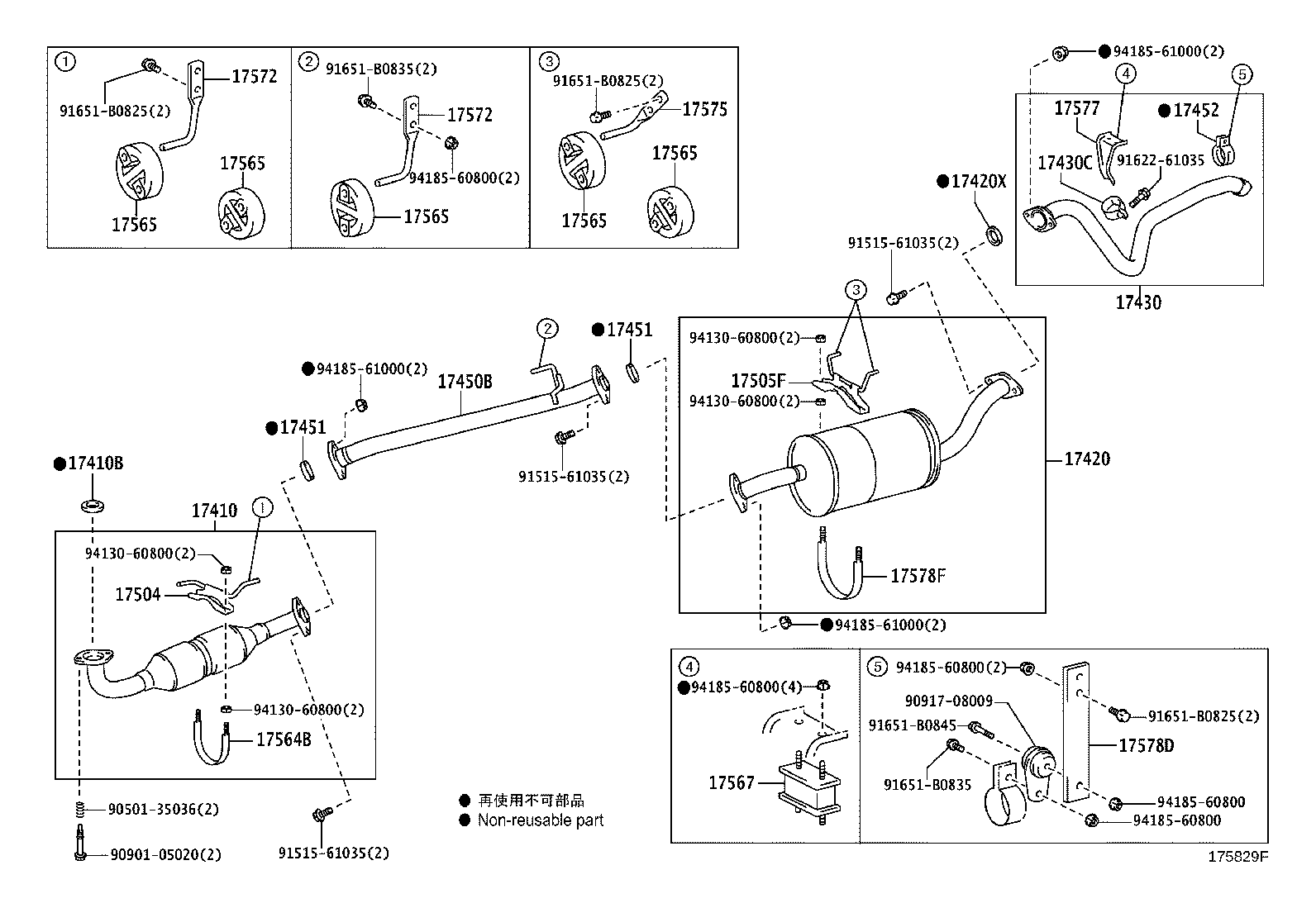

(0609-0905)1KDFTV..KDY251,261
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-30160 |
1KDFTV..KDY251;1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3 *114=TOYOTA/AD6AD7/Y |
1 | ||
| 17410-30320 |
1KDFTV..KDY221,231,251,261..EUR *114=TOYOTA/ZA9/Y |
1 | ||
| 17410-30300 |
1KDFTV..KDY221,251..EUR *114=TOYOTA/UC1/Y |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-74040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-0L050 |
1KDFTV..KDY251,261 CKD PACKAGE |
1 | ||
| 17420-30120 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17420-30270 |
1KDFTV..KDY251,261 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06076 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-30110 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17430-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90461-32037 |
1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3 |
1 | ||
| 17450B - PIPE ASSY, EXHAUST, FRONT NO.2 | ||||
| 17450-30031 |
1KDFTV..KDY251 *114=TOYOTA/X56/Y |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
1KDFTV..KDY251,261 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
1KDFTV..KDY251,261 |
1 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-30010 |
1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3 |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-30050 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17504-30020 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17504-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17505F - SUPPORT SUB-ASSY, EXHAUST PIPE | ||||
| 17505-54240 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17564B - SUPPORT, CATALYTIC CONVERTER | ||||
| 17564-75070 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17564-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17564-30010 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
5 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
5 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
5 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
5 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
5 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-35010 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-71050 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 17575-30030 |
1KDFTV,5L..KDY221,231,251,261,LY225,23# |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-30010 |
1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3 |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-54020 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 17578F - CLAMP, PIPE(FOR CENTER PIPE) | ||||
| 17578-54030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| Common parts | ||||
| 90501-35036 | ||||
| 90901-05020 | ||||
| 90917-08009 | ||||
| 91515-61035 | ||||
| 91622-61035 | ||||
| 91651-B0825 | ||||
| 91651-B0835 | ||||
| 91651-B0845 | ||||
| 94130-60800 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||

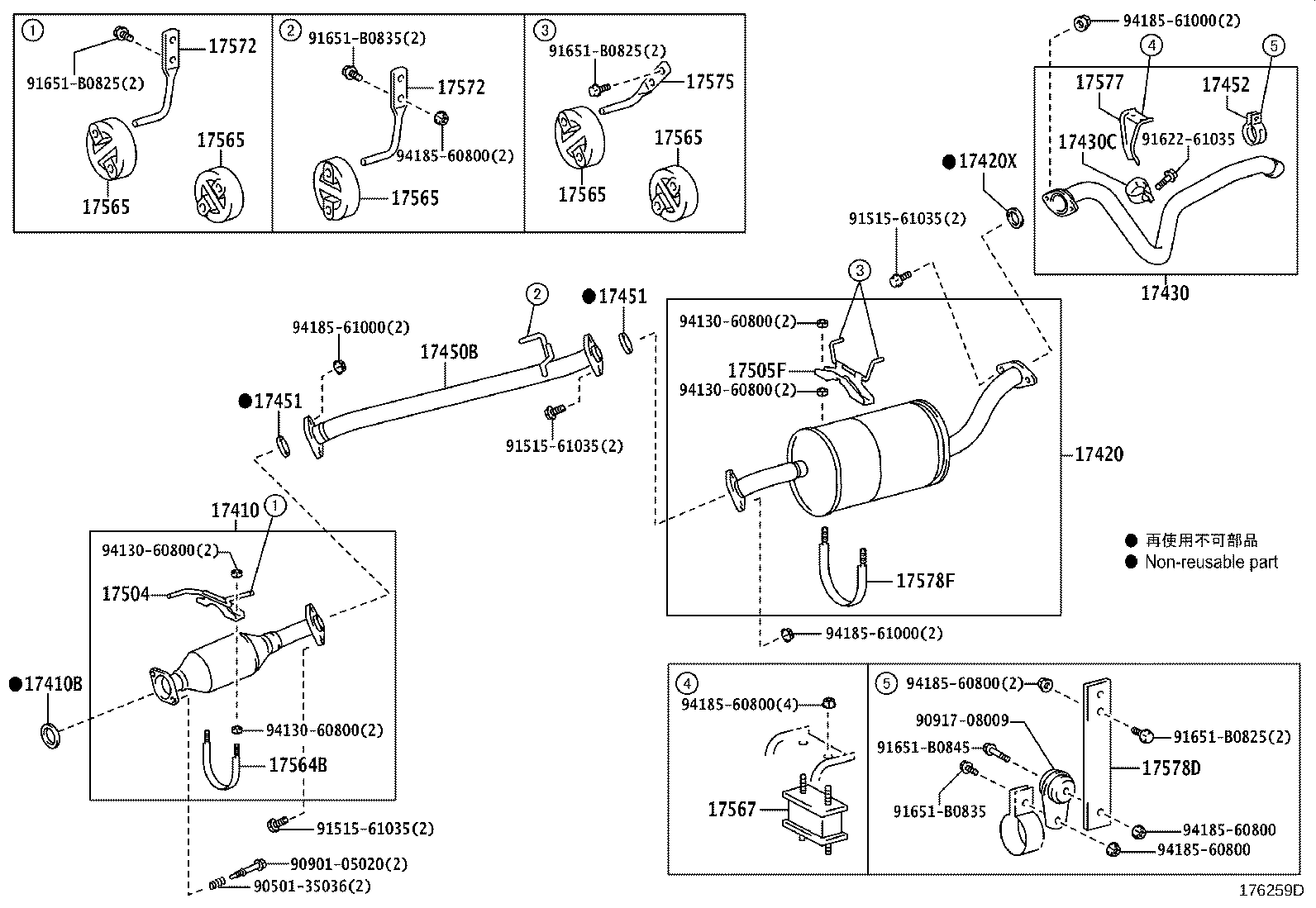

(0905-1109)1KDFTV..KDY251,261
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-30160 |
1KDFTV..KDY251;1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3 *114=TOYOTA/AD6AD7/Y |
1 | ||
| 17410-30320 |
1KDFTV..KDY221,231,251,261..EUR *114=TOYOTA/ZA9/Y |
1 | ||
| 17410-30300 |
1KDFTV..KDY221,251..EUR *114=TOYOTA/UC1/Y |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-74040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-0L050 |
1KDFTV..KDY251,261 CKD PACKAGE |
1 | ||
| 17420-30120 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17420-30270 |
1KDFTV..KDY251,261 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06076 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-30110 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17430-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90461-32037 |
1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3 |
1 | ||
| 17450B - PIPE ASSY, EXHAUST, FRONT NO.2 | ||||
| 17450-30031 |
1KDFTV..KDY251 *114=TOYOTA/X56/Y |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
1KDFTV..KDY251,261 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
1KDFTV..KDY251,261 |
1 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-30010 |
1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3 |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-30050 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17504-30020 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17504-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17505F - SUPPORT SUB-ASSY, EXHAUST PIPE | ||||
| 17505-54240 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17564B - SUPPORT, CATALYTIC CONVERTER | ||||
| 17564-75070 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17564-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17564-30010 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
5 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
5 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
5 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
5 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
5 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-35010 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-71050 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 17575-30030 |
1KDFTV,5L..KDY221,231,251,261,LY225,23# |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-30010 |
1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3 |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-54020 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 17578F - CLAMP, PIPE(FOR CENTER PIPE) | ||||
| 17578-54030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| Common parts | ||||
| 90501-35036 | ||||
| 90901-05020 | ||||
| 90917-08009 | ||||
| 91515-61035 | ||||
| 91622-61035 | ||||
| 91651-B0825 | ||||
| 91651-B0835 | ||||
| 91651-B0845 | ||||
| 94130-60800 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||

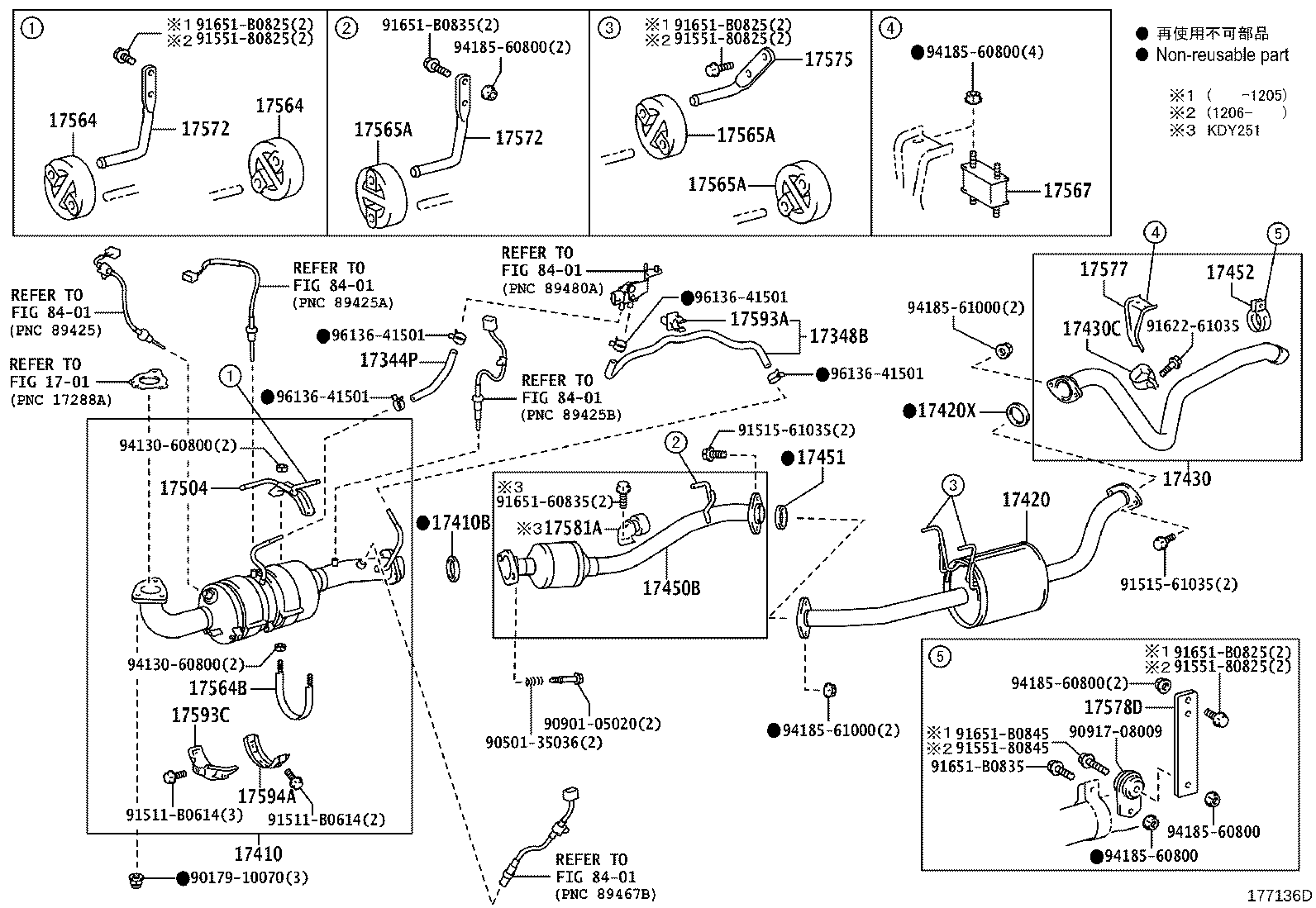

(1109- )1KDFTV..KDY251,261
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17344P - HOSE, AIR, NO.4(FOR EXHAUST PIPE) | ||||
| 17344-30040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17348B - HOSE, AIR, NO.8(FOR EXHAUST PIPE) | ||||
| 17302-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-30160 |
1KDFTV..KDY251;1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3 *114=TOYOTA/AD6AD7/Y |
1 | ||
| 17410-30320 |
1KDFTV..KDY221,231,251,261..EUR *114=TOYOTA/ZA9/Y |
1 | ||
| 17410-30300 |
1KDFTV..KDY221,251..EUR *114=TOYOTA/UC1/Y |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-74040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-0L050 |
1KDFTV..KDY251,261 CKD PACKAGE |
1 | ||
| 17420-30120 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17420-30270 |
1KDFTV..KDY251,261 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06076 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-30110 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17430-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90461-32037 |
1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3 |
1 | ||
| 17450B - PIPE ASSY, EXHAUST, FRONT NO.2 | ||||
| 17450-30031 |
1KDFTV..KDY251 *114=TOYOTA/X56/Y |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
1KDFTV..KDY251,261 |
1 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-30010 |
1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3 |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-30050 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17504-30020 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17504-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17564 - SUPPORT,EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 17564 - SUPPORT,EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 17564B - SUPPORT, CATALYTIC CONVERTER | ||||
| 17564-75070 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17564-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17564-30010 |
1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-31040 |
1KDFTV..KDY251,261 |
3 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-35010 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-71050 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 17575-30030 |
1KDFTV,5L..KDY221,231,251,261,LY225,23# |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-30010 |
1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3 |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-54020 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-75060 |
1KDFTV..KDY251 |
1 | ||
| 17593A - CLAMP | ||||
| 19529-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2 | ||||
| 17594-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| Common parts | ||||
| 90179-10070 | ||||
| 90501-35036 | ||||
| 90901-05020 | ||||
| 90917-08009 | ||||
| 91511-B0614 | ||||
| 91515-61035 | ||||
| 91551-80825 | ||||
| 91551-80845 | ||||
| 91622-61035 | ||||
| 91651-60835 | ||||
| 91651-B0825 | ||||
| 91651-B0835 | ||||
| 91651-B0845 | ||||
| 94130-60800 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 96136-41501 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
