KDY231R-TLMKY (2006)

Toyota Dyna

Production Sep 2006 - Sep 9999
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)

Click highlighted areas on diagram

diagram 52111E 52543A 52543A 75111A 9010608008 9010608008 9011908521 9011908521 9046706046 9046706046 9155180616
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-25911

KDY221,231,LY225,23#..GEN,SA

PAINT REQ.

 1
52101-37985

KDY221,231,LY23#

PAINT REQ.

 1
75111A - BRACKET, FRONT LICENSE PLATE
75111-37010

KDY22#,23#,25#,26#,LY220,23#

 1
Common parts
90106-08008
90119-08521
90467-06046
91551-80616

(1610- )

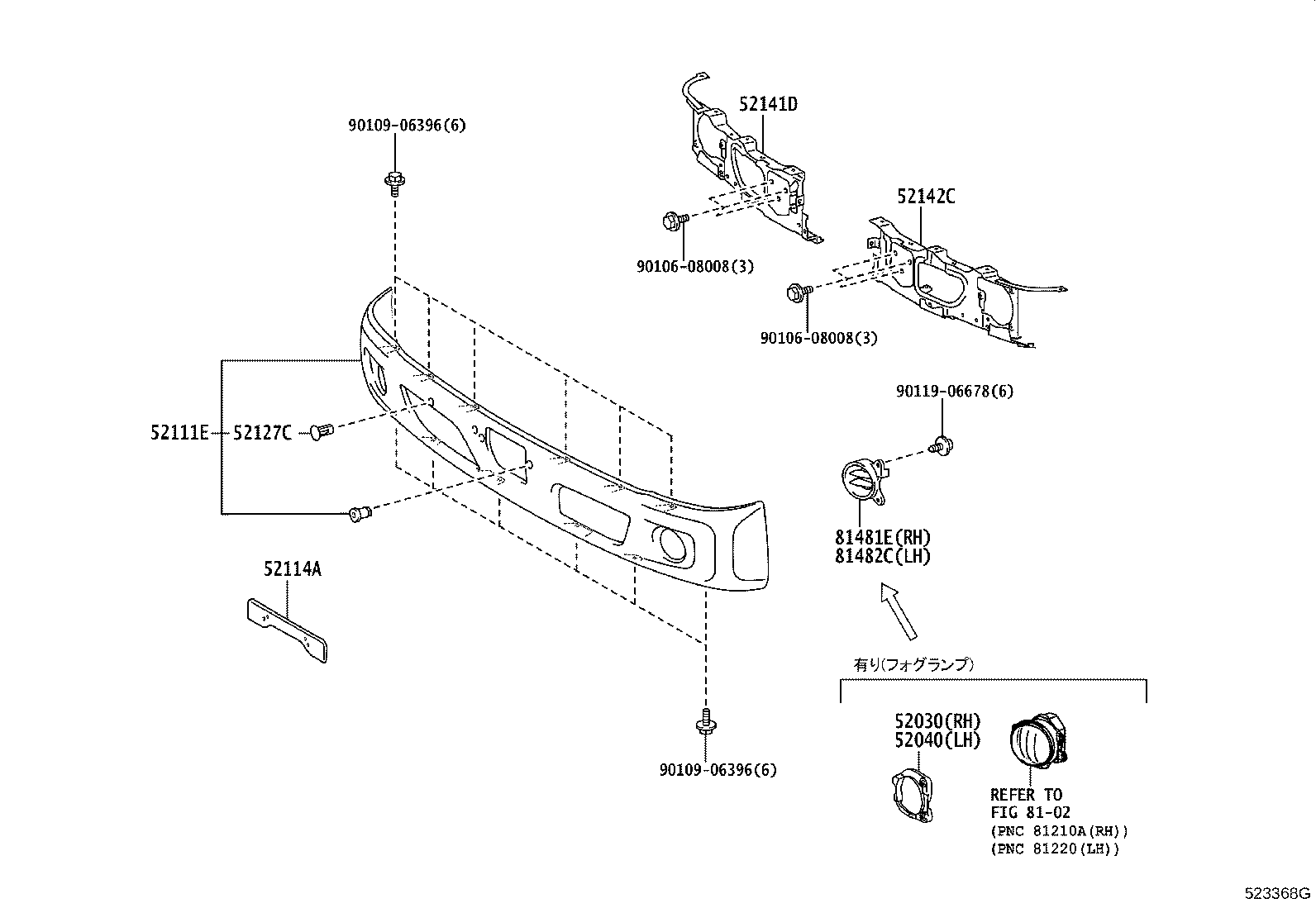

Click highlighted areas on diagram

diagram 52030 52040 52111E 52114A 52127C 52141D 52142C 8102 81481E 81482C 9010608008 9010608008 9010906396 9010906396 9011906678
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-25911

KDY221,231,LY225,23#..GEN,SA

PAINT REQ.

 1
52101-37985

KDY221,231,LY23#

PAINT REQ.

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-37250

KDY221,231,LY23#

 1
52127C - COVER, FRONT BUMPER HOLE
52127-37020

KDY221,231,LY23#

 1
52141D - STAY, FRONT BUMPER, RH
52011-37072

KDY221,231,LY23#

 1
52011-37170

KDY221,231,LY23#

 1
52011-37070

KDY221,231,LY23#

 1
52011-37071

KDY221,231,LY23#

 1
52142C - STAY, FRONT BUMPER, LH
52012-37071

KDY221,231,LY23#

 1
52012-37070

KDY221,231,LY23#

 1
52012-37072

KDY221,231,LY23#

 1
52012-37170

KDY221,231,LY23#

 1
81481E - COVER, FOG LAMP, RH
81481-37040

KDY221,231,LY23#

 1
81482C - COVER, FOG LAMP, LH
81482-37040

KDY221,231,LY23#

 1
Common parts
90106-08008
90109-06396
90119-06678
Linked diagrams
8102
