KDY231R-TLMKY (2006)
Toyota Dyna
(0107-1610)LY22#,235..RHD ; (0107-1610)KDY221,23#,25#,LY230..RHD..WT ; (0312-1610)K

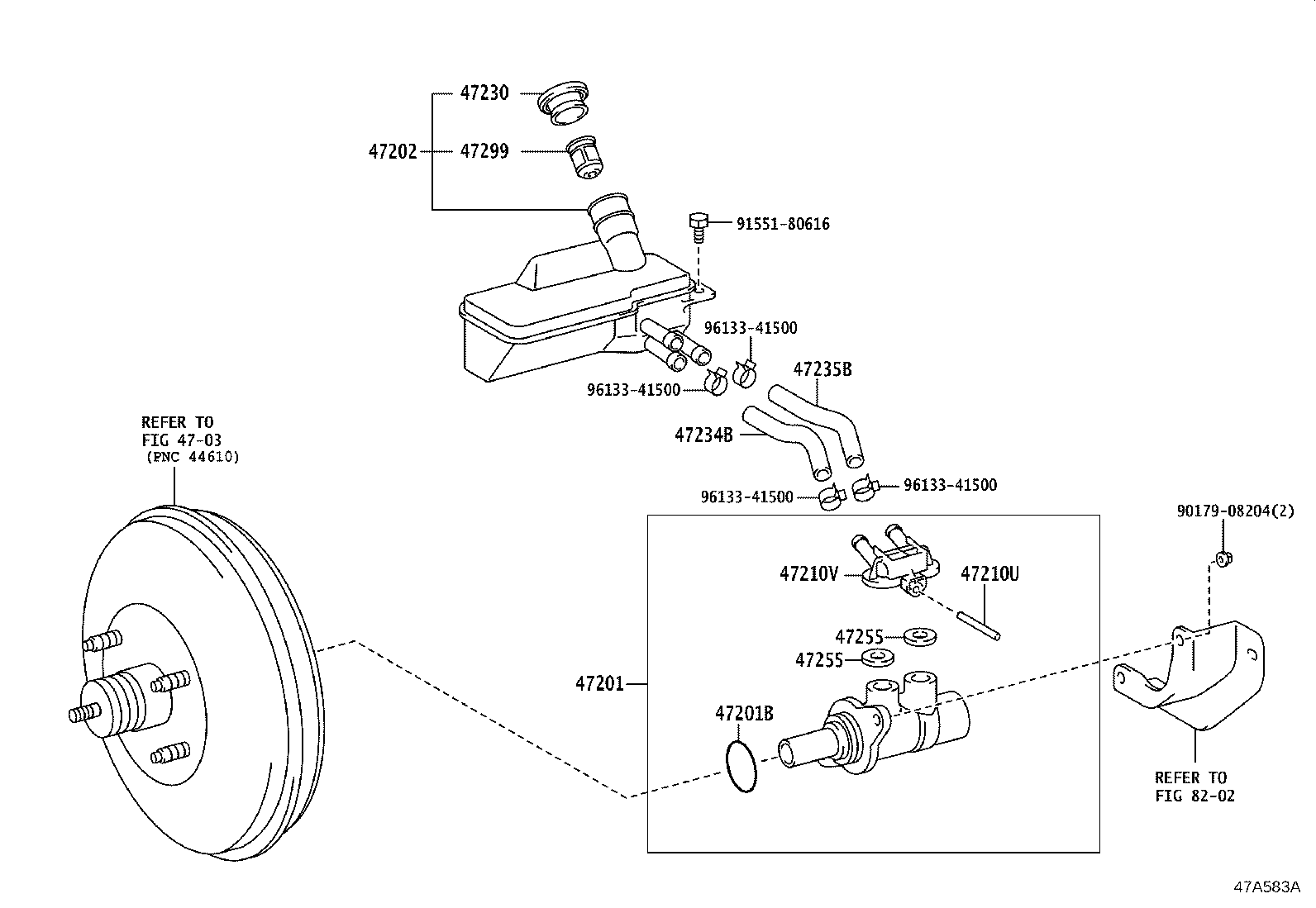

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-25100 |
KDY221..GEN;KDY23#,LY235;KDY22#,25#,26#,LY220,230..IV3 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-25270 |
KDY221..GEN;KDY22#..RHD..IV3;KDY23#,25#,LY22#,23#..RHD |
1 | ||
| 47201-25300 |
KDY221,231,LY23#..RHD |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
KDY221,231,LY23# |
1 | ||
| 90029-20059 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-37051 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 47220-37120 |
KDY221,231,LY23#..RHD |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
KDY221..GEN;KDY23#,LY235;KDY22#,25#,26#,LY220,230..IV3 |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40409 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 90015-AM007 |
KDY221,231,LY23# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-37020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-25080 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 47234-37180 |
KDY221,231,LY23#..RHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-37170 |
KDY221,231,LY23#..RHD |
1 | ||
| 47235-25070 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KDY22#,23#,25#,26#,LY22#,23# |
2 | ||
| 90029-48001 |
KDY221,231,LY23# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KDY22#,23#,25#,26#,LY22#,23# |
2 | ||
| 90029-48001 |
KDY221,231,LY23# |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-28010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 55109A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55109-25010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 55109-25020 |
KDY221,231,251,261,LY23# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
| 91551-80616 | ||||
| 91621-J0814 | ||||
| 96133-41500 | ||||
(1610- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-25270 |
KDY221..GEN;KDY22#..RHD..IV3;KDY23#,25#,LY22#,23#..RHD |
1 | ||
| 47201-25300 |
KDY221,231,LY23#..RHD |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
KDY221,231,LY23# |
1 | ||
| 90029-20059 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-37051 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 47220-37120 |
KDY221,231,LY23#..RHD |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-15803 |
KDY221,231,LY23# |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40409 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 90015-AM007 |
KDY221,231,LY23# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-37020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-25080 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 47234-37180 |
KDY221,231,LY23#..RHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-37170 |
KDY221,231,LY23#..RHD |
1 | ||
| 47235-25070 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KDY22#,23#,25#,26#,LY22#,23# |
2 | ||
| 90029-48001 |
KDY221,231,LY23# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KDY22#,23#,25#,26#,LY22#,23# |
2 | ||
| 90029-48001 |
KDY221,231,LY23# |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-28010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91551-80616 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 8202 | ||||
