KDY231L-PSMBYW (2006)

Toyota Dyna

Production Sep 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )EUR..CBU

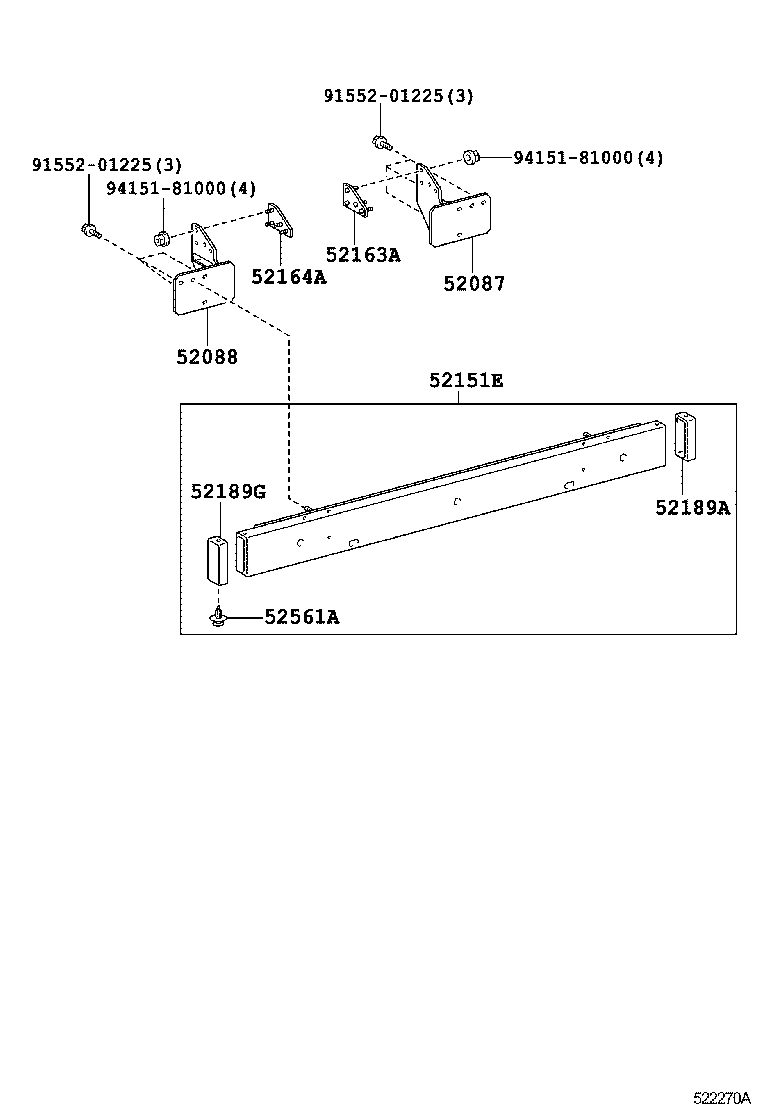

Click highlighted areas on diagram

diagram 52087 52088 52151E 52163A 52164A 52189A 52189G 52561A 9155201225 9155201225 9415181000 9415181000
Part # Description Qty Price
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52151-25040

KDY221,231..EUR..CBU

 1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52152-25010

KDY221,231..EUR..CBU

 1
52151E - BAR, REAR BUMPER
52105-25030

KDY221,231..EUR..CBU

NO PAINT REQ.

 1
52163A - PLATE, REAR BUMPER, RH
52163-25010

KDY221,231..EUR..CBU

 1
52164A - PLATE, REAR BUMPER, LH
52164-25010

KDY221,231..EUR..CBU

 1
52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH
52189-37050

KDY221,231..EUR..CBU

 1
52189G - PROTECTOR, REAR BUMPER ARM EDGE, LH
52189-37050

KDY221,231..EUR..CBU

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-07043C0

KDY221,231..EUR..CBU

BLACK

 4
Common parts
91552-01225
94151-81000
