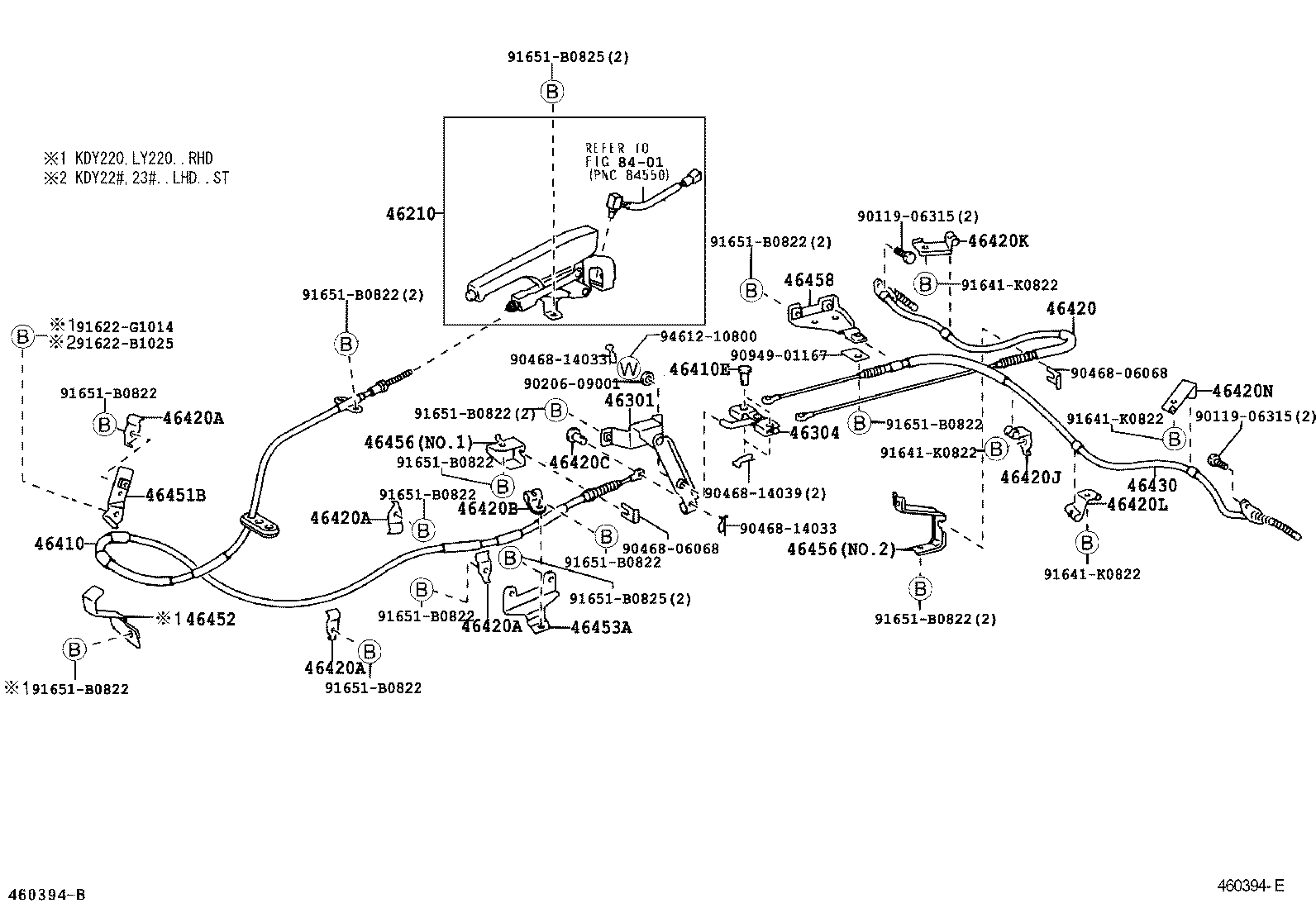

KDY231L-PSMBYW (2006)
Toyota Dyna
(0107-0709)KDY22#,23#,LY220..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46320-25020 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-25010 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25201 |
KDY221,231..LHD..ST |
1 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90240-10044 |
KDY22#,23#,LY22#..ST |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
KDY221,231,251,261,LY230 |
3 | ||
| 46411-25010 |
KDY22#,23#,25#,26#,LY220,230 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
KDY221,231,251,261,LY230 |
3 | ||
| 46411-25010 |
KDY22#,23#,25#,26#,LY220,230 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
KDY221,231,251,261,LY230 |
3 | ||
| 46411-25010 |
KDY22#,23#,25#,26#,LY220,230 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
KDY221,231,251,261,LY230 |
3 | ||
| 46411-25010 |
KDY22#,23#,25#,26#,LY220,230 |
4 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-60040 |
KDY22#,23#,LY220..ST |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08017 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-25030 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46421-25010 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46431-25010 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46420N - CLAMP, NO.7(FOR PARKING BRAKE CABLE) | ||||
| 46431-25020 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-25040 |
KDY22#,23#,LY220..ST |
1 | ||
| 46453-25070 |
KDY221,231..ST |
1 | ||
| 46456 - BRACKET, CABLE RETAINING | ||||
| 46457-25020 |
KDY22#,23#,LY22#..ST NO.2 |
1 | ||
| 46456-25020 |
KDY22#,23#,LY22#..ST NO.1 |
1 | ||
| 46456 - BRACKET, CABLE RETAINING | ||||
| 46457-25020 |
KDY22#,23#,LY22#..ST NO.2 |
1 | ||
| 46456-25020 |
KDY22#,23#,LY22#..ST NO.1 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-25010 |
KDY22#,23#,LY22#..ST |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90206-09001 | ||||
| 90468-06068 | ||||
| 90468-14033 | ||||
| 90468-14039 | ||||
| 90949-01167 | ||||
| 91622-B1025 | ||||
| 91622-G1014 | ||||
| 91641-K0822 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0709- )KDY221,231..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46320-25020 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-25010 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25201 |
KDY221,231..LHD..ST |
1 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90240-10044 |
KDY22#,23#,LY22#..ST |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
KDY221,231,251,261,LY230 |
3 | ||
| 46411-25010 |
KDY22#,23#,25#,26#,LY220,230 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
KDY221,231,251,261,LY230 |
3 | ||
| 46411-25010 |
KDY22#,23#,25#,26#,LY220,230 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
KDY221,231,251,261,LY230 |
3 | ||
| 46411-25010 |
KDY22#,23#,25#,26#,LY220,230 |
4 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-60040 |
KDY22#,23#,LY220..ST |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08017 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-25030 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46421-25010 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46431-25010 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46420N - CLAMP, NO.7(FOR PARKING BRAKE CABLE) | ||||
| 46431-25020 |
KDY22#,23#,LY22#..ST |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46408-25020 |
KDY221,231..ST |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-25040 |
KDY22#,23#,LY220..ST |
1 | ||
| 46453-25070 |
KDY221,231..ST |
1 | ||
| 46456 - BRACKET, CABLE RETAINING | ||||
| 46457-25020 |
KDY22#,23#,LY22#..ST NO.2 |
1 | ||
| 46456-25020 |
KDY22#,23#,LY22#..ST NO.1 |
1 | ||
| 46456 - BRACKET, CABLE RETAINING | ||||
| 46457-25020 |
KDY22#,23#,LY22#..ST NO.2 |
1 | ||
| 46456-25020 |
KDY22#,23#,LY22#..ST NO.1 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-25010 |
KDY22#,23#,LY22#..ST |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90206-09001 | ||||
| 90468-06068 | ||||
| 90468-14033 | ||||
| 90468-14039 | ||||
| 90949-01167 | ||||
| 91622-B1025 | ||||
| 91622-G1014 | ||||
| 91641-K0822 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 91671-A0825 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10470 | ||||
| 90119-10338 | ||||
| 94531-01000 | ||||
| 94613-11200 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10443 | ||||
| 90101-10470 | ||||
| 90119-10338 | ||||
| 94531-01000 | ||||
| 94613-11200 | ||||
(7708- )BU2#,30,31,32,HU30,JU20,RU2#,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-10083 | ||||
| 90461-10232 | ||||
| 90461-10302 | ||||
| 90461-10932 | ||||
| 90461-12086 | ||||
| 90461-16393 | ||||
| 90462-23215 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
