KDY231L-PSMBYW (2006)
Toyota Dyna
Production
Sep 2006
-
Feb 2015
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )LY22#,23#

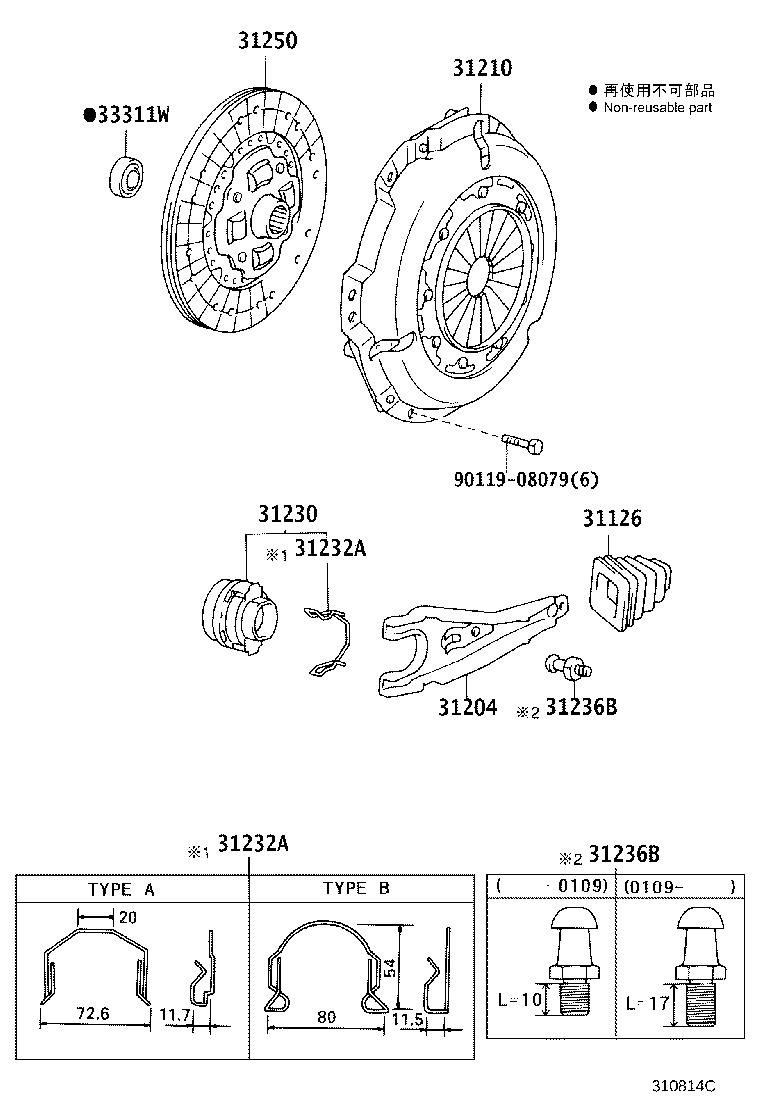

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-26164 |
LY225,23# |
1 | ||
| 31210-26162 |
LY225,23# |
1 | ||
| 31210-26163 |
LY225,23# |
1 | ||
| 31210-36350 |
KDY221,231,251,261..EUR |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-60221 |
KDY221,231,251,261..EUR |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-60030 |
KDY221,231..ST |
1 | ||
| 31232-35020 |
LY22#,23# TYPE A:REFER ILLUST. |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-60030 |
KDY221,231..ST |
1 | ||
| 31232-35020 |
LY22#,23# TYPE A:REFER ILLUST. |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
(7708- )BU2#,3#,40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08081 | ||||
| 90119-08134 | ||||
| 90170-08197 | ||||
| 90201-08567 | ||||
| 94511-00800 | ||||
