KDY231L-PSMBYW (2006)
Toyota Dyna

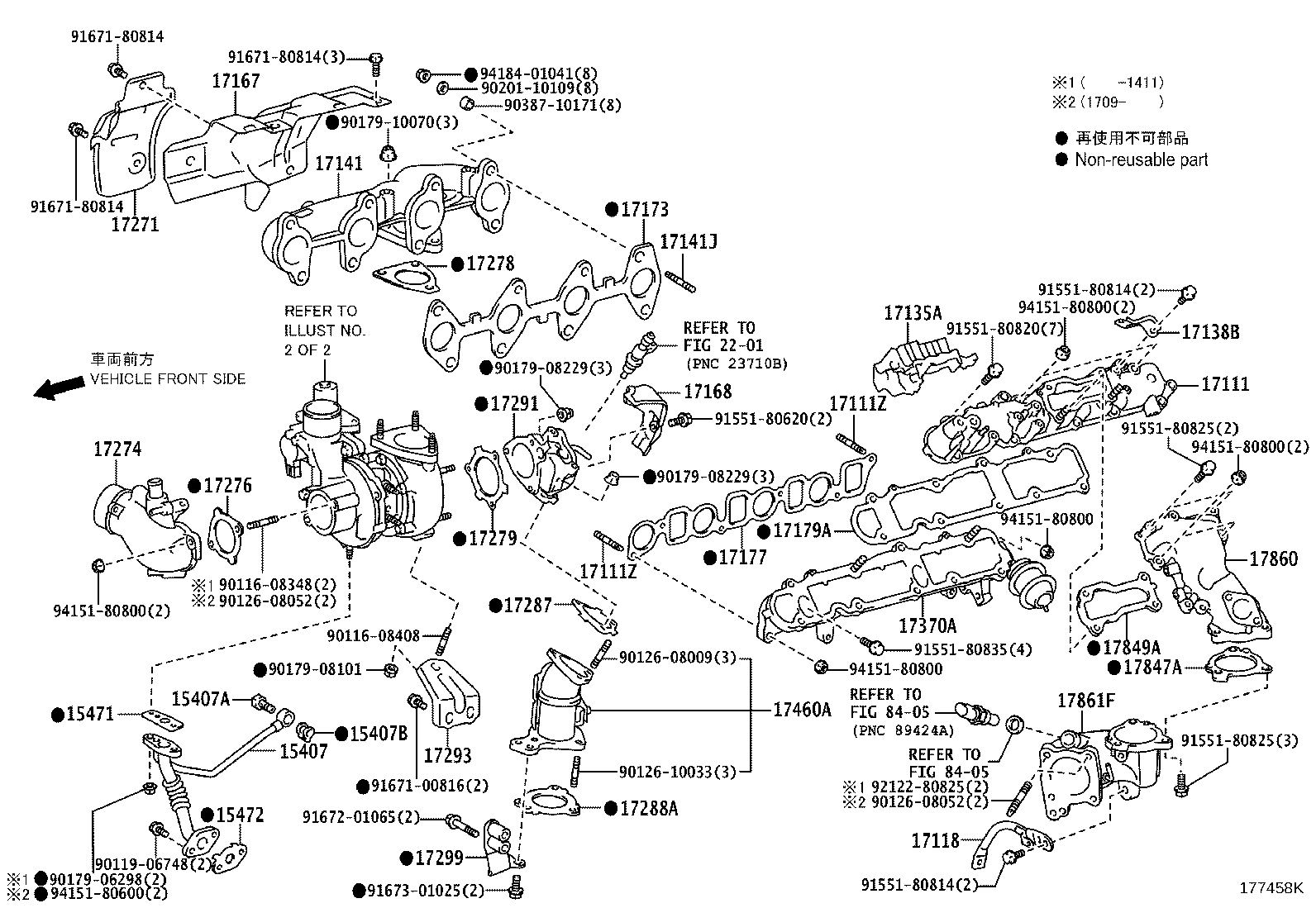

ILLUST NO. 1 OF 2(0609-0703)1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30070 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 15407-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30011 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-30010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17101-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17101-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30060 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30130 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118-30120 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30060 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30130 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118-30120 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17135-30011 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17136 - INSULATOR, INTAKE MANIFOLD, NO.2 | ||||
| 17136-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30081 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141-30080 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17141-30090 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-10034 |
1KDFTV..KDY221,231,251,261 |
8 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-30031 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17167-30030 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17271-0L020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-30060 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17274-30050 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274-30061 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30030 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17279-30031 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17291-30170 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17291-30171 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17293-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17860 - CONNECTOR ASSY, INTAKE AIR | ||||
| 17860-30090 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17861-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17860-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30030 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 25627-30040 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30030 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 25627-30040 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| Common parts | ||||
| 90105-08426 | ||||
| 90116-08068 | ||||
| 90116-08160 | ||||
| 90116-08348 | ||||
| 90119-06748 | ||||
| 90179-06298 | ||||
| 90179-08040 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 90999-92002 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80835 | ||||
| 91651-B0814 | ||||
| 91671-00816 | ||||
| 92122-60825 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8405 | ||||

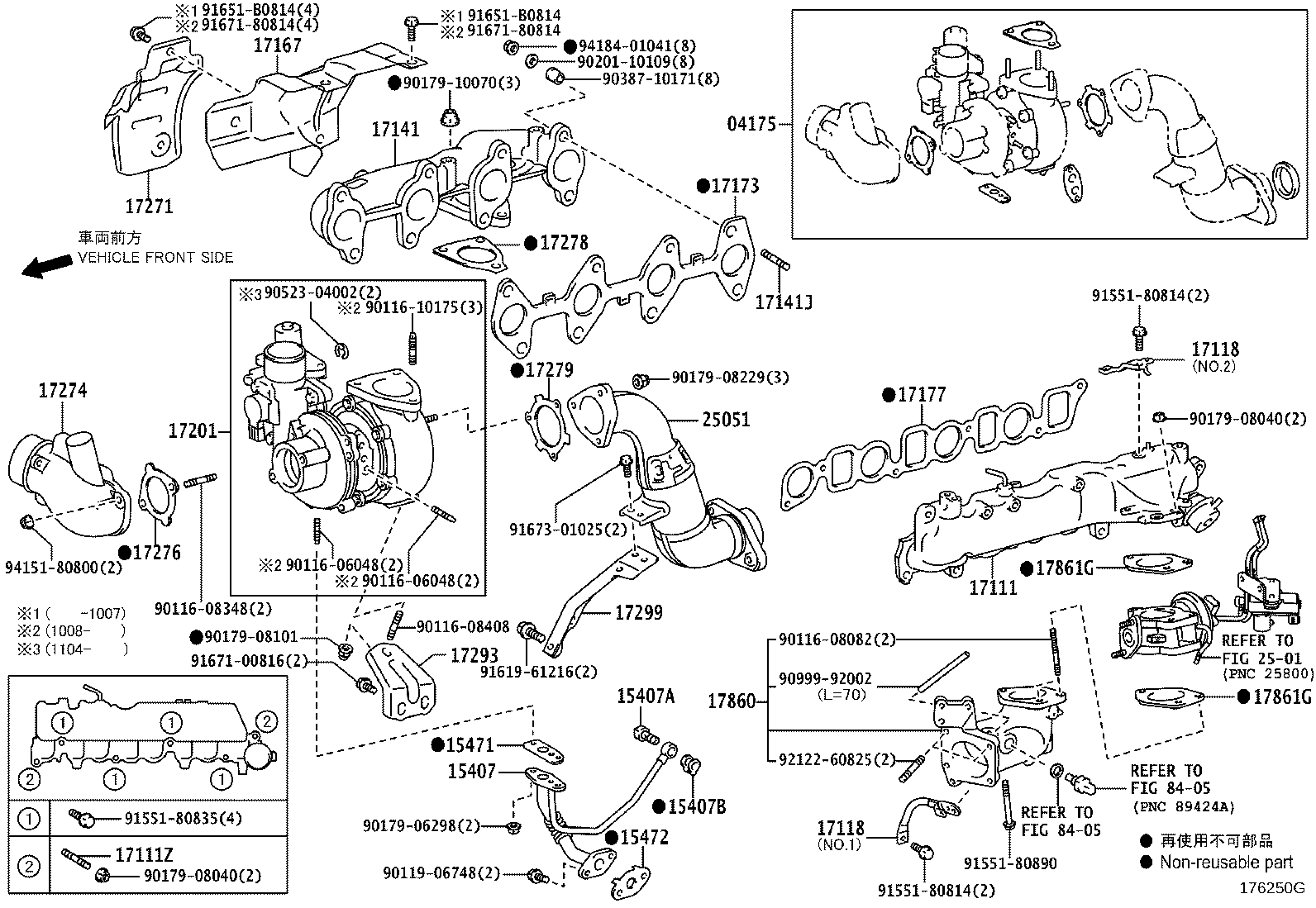

ILLUST NO. 1 OF 2(0703-0905)1KDFTV ; (0905-1310)1KDFTV..KDY221,231..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30070 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 15407-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30011 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-30010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17101-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17101-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30060 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30130 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118-30120 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30060 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30130 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118-30120 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17135-30011 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17136 - INSULATOR, INTAKE MANIFOLD, NO.2 | ||||
| 17136-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30081 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141-30080 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17141-30090 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-10034 |
1KDFTV..KDY221,231,251,261 |
8 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-30031 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17167-30030 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17271-0L020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-30060 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17274-30050 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274-30061 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-30060 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17274-30050 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274-30061 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30030 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17279-30031 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17291-30170 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17291-30171 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17293-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17860 - CONNECTOR ASSY, INTAKE AIR | ||||
| 17860-30090 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17861-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17860-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30030 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 25627-30040 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30030 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 25627-30040 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| Common parts | ||||
| 90105-08426 | ||||
| 90116-08068 | ||||
| 90116-08160 | ||||
| 90116-08348 | ||||
| 90119-06748 | ||||
| 90179-06298 | ||||
| 90179-08040 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 90999-92002 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80835 | ||||
| 91651-B0814 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 92122-60825 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8405 | ||||
(0905-1109)1KDFTV..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

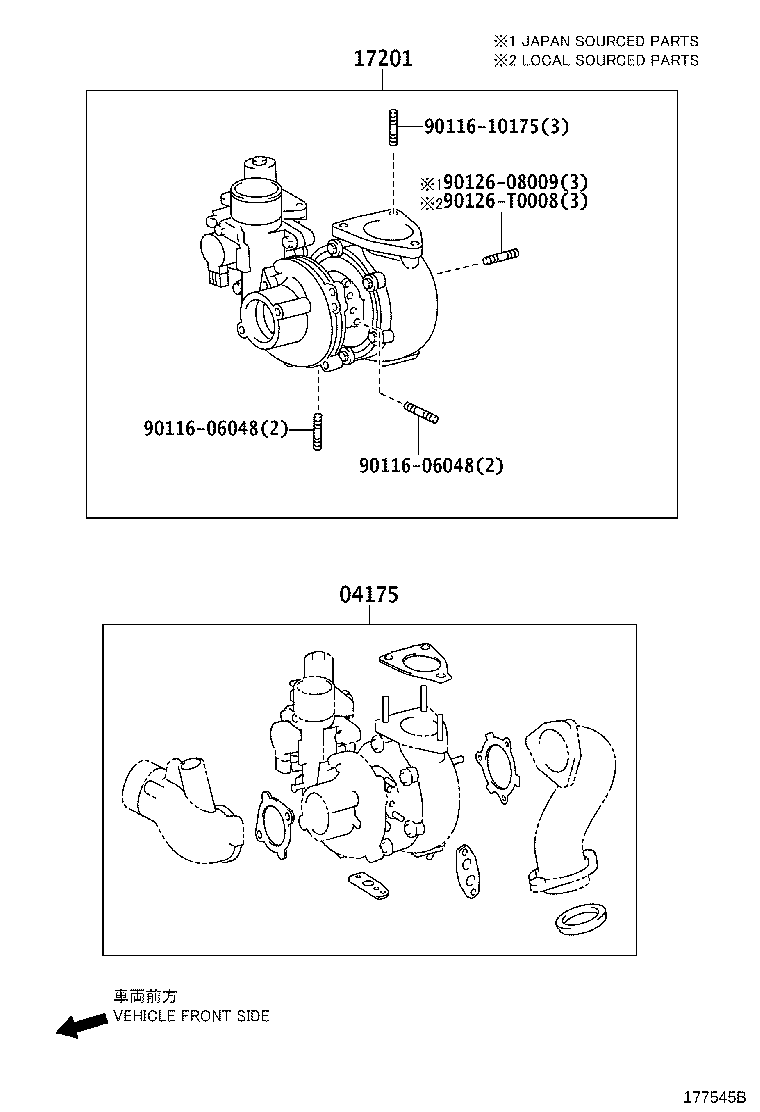

| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-30190 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 04175-30121 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 04175-30120 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 04175-30221 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 04175-30220 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30070 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 15407-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30011 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-30010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17101-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17101-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30060 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30130 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118-30120 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30060 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30130 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118-30120 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30081 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141-30080 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17141-30090 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-10034 |
1KDFTV..KDY221,231,251,261 |
8 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-30031 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17167-30030 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-30150 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17201-30180 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17201-0L061 |
1KDFTV..KDY221,231,251,261 (L) |
1 | ||
| 17201-30201 |
1KDFTV..KDY221,231,251,261 (J) |
1 | ||
| 17201-30200 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17201-0L060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17271-0L020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-30060 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17274-30050 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274-30061 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30030 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17279-30031 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17293-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17299 - STAY, TURBINE OUTLET ELBOW | ||||
| 17299-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17299-30080 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17860 - CONNECTOR ASSY, INTAKE AIR | ||||
| 17860-30090 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17861-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17860-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30030 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 25627-30040 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30030 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 25627-30040 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-30060 |
1KDFTV..KDY221,231,251,261..EUR *114=TOYOTA/30060/Y |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-08082 | ||||
| 90116-08348 | ||||
| 90116-08408 | ||||
| 90116-10175 | ||||
| 90119-06748 | ||||
| 90179-06298 | ||||
| 90179-08040 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 90523-04002 | ||||
| 90999-92002 | ||||
| 91551-80814 | ||||
| 91551-80835 | ||||
| 91551-80890 | ||||
| 91619-61216 | ||||
| 91651-B0814 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 91673-01025 | ||||
| 92122-60825 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8405 | ||||

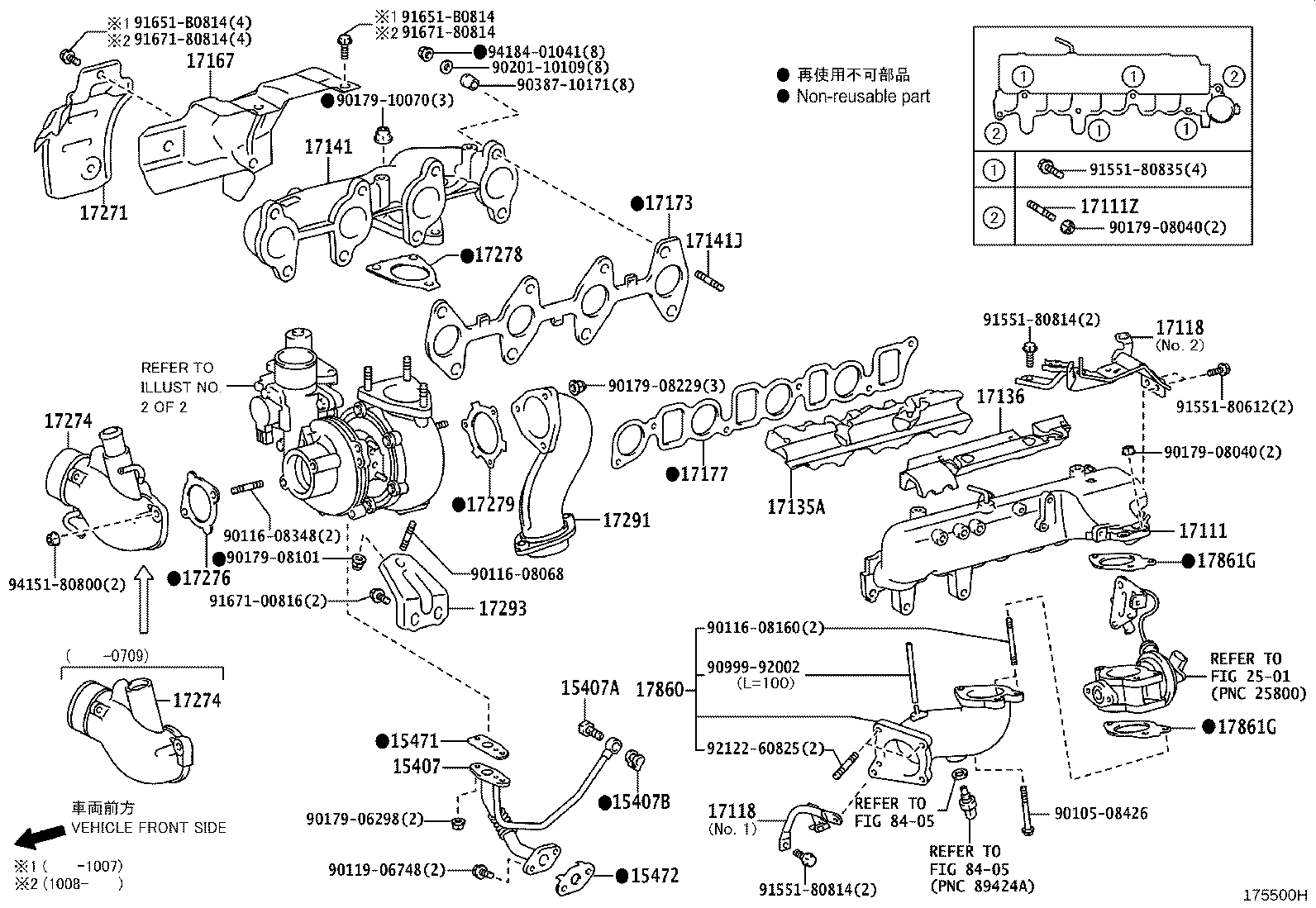

ILLUST NO. 1 OF 2(1109-1411)1KDFTV..EUR ; (1310-1411)1KDFTV..KDY221,231..GEN ; (1709- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30070 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 15407-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30011 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-30010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17101-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17101-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30060 |
1KDFTV..KDY221,231,251,261..EUR NO.1 |
1 | ||
| 17118-30130 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17118-30040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17118-30120 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17135-30011 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17138B - STAY, INTAKE MANIFOLD | ||||
| 17138-30040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30081 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141-30080 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17141-30090 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-10034 |
1KDFTV..KDY221,231,251,261 |
8 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-30031 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17167-30030 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17179A - GASKET, INTAKE MANIFOLD, NO.2 | ||||
| 17179-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17271-0L020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-30060 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17274-30050 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17274-30061 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30030 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17279-30031 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17287 - GASKET, TURBINE OUTLET ELBOW, NO.2 | ||||
| 17287-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17288A - GASKET, TURBINE OUTLET ELBOW, NO.3 | ||||
| 17288-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17291-30170 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17291-30171 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17293-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17299 - STAY, TURBINE OUTLET ELBOW | ||||
| 17299-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17299-30080 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17370A - VALVE ASSY, SWIRL CONTROL | ||||
| 17370-30080 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17460A - CONVERTER ASSY, CATALYTIC W/PIPE | ||||
| 17460-30011 |
1KDFTV..KDY221,231,251,261..EUR *114=TOYOTA/30011/Y |
1 | ||
| 17847A - GASKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17847-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17860 - CONNECTOR ASSY, INTAKE AIR | ||||
| 17860-30090 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17861-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17860-30060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17862-30040 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| Common parts | ||||
| 90116-08348 | ||||
| 90116-08408 | ||||
| 90119-06748 | ||||
| 90126-08009 | ||||
| 90126-08052 | ||||
| 90126-10033 | ||||
| 90179-06298 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 91551-80620 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 91672-01065 | ||||
| 91673-01025 | ||||
| 92122-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 8405 | ||||

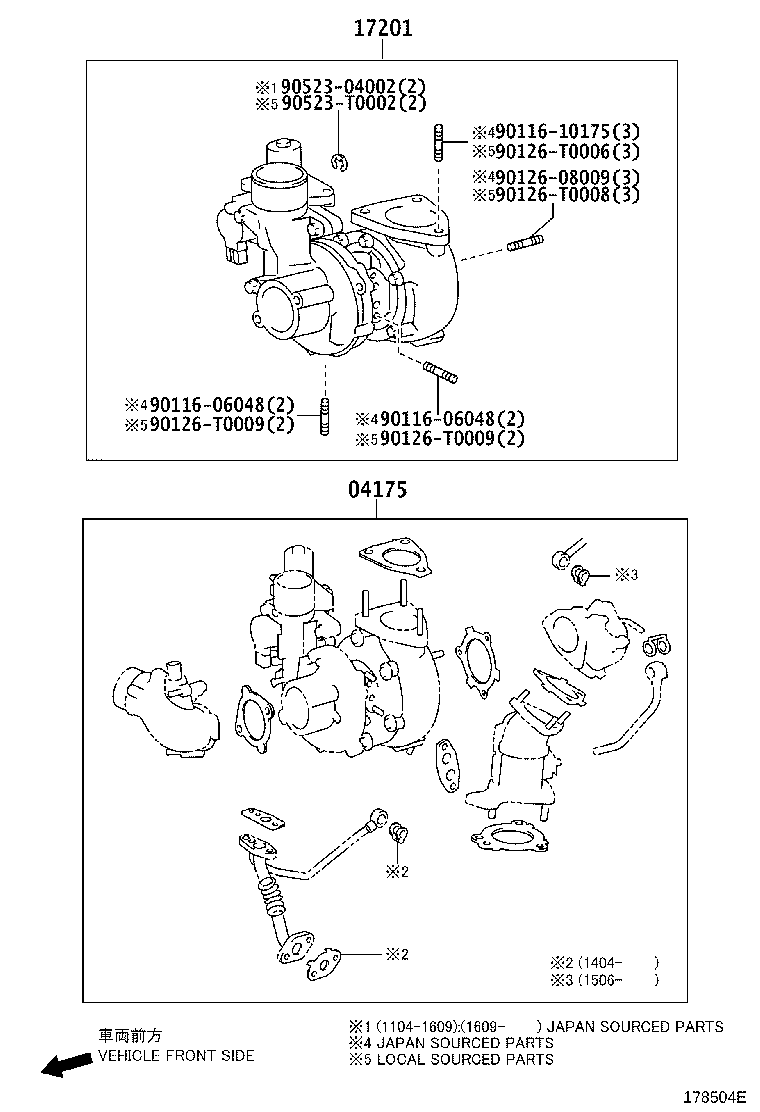

ILLUST NO. 2 OF 2(0609-0905)1KDFTV ; (0905-1310)1KDFTV..KDY221,231..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-30190 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 04175-30121 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 04175-30120 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 04175-30221 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 04175-30220 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-30150 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17201-30180 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17201-0L061 |
1KDFTV..KDY221,231,251,261 (L) |
1 | ||
| 17201-30201 |
1KDFTV..KDY221,231,251,261 (J) |
1 | ||
| 17201-30200 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17201-0L060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90126-08009 | ||||
| 90126-T0008 | ||||
ILLUST NO. 2 OF 2(1109- )1KDFTV..EUR ; (1310- )1KDFTV..KDY221,231..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-30190 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 04175-30121 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 04175-30120 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 04175-30221 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 04175-30220 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-30150 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 17201-30180 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17201-0L061 |
1KDFTV..KDY221,231,251,261 (L) |
1 | ||
| 17201-30201 |
1KDFTV..KDY221,231,251,261 (J) |
1 | ||
| 17201-30200 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 17201-0L060 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90126-08009 | ||||
| 90126-T0006 | ||||
| 90126-T0008 | ||||
| 90126-T0009 | ||||
| 90523-04002 | ||||
| 90523-T0002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
