Toyota Dyna KDY231 VENTILATION HOSE

KDY231L-PSMBYW (2006)

Toyota Dyna

Production Sep 2006 - Feb 2015

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

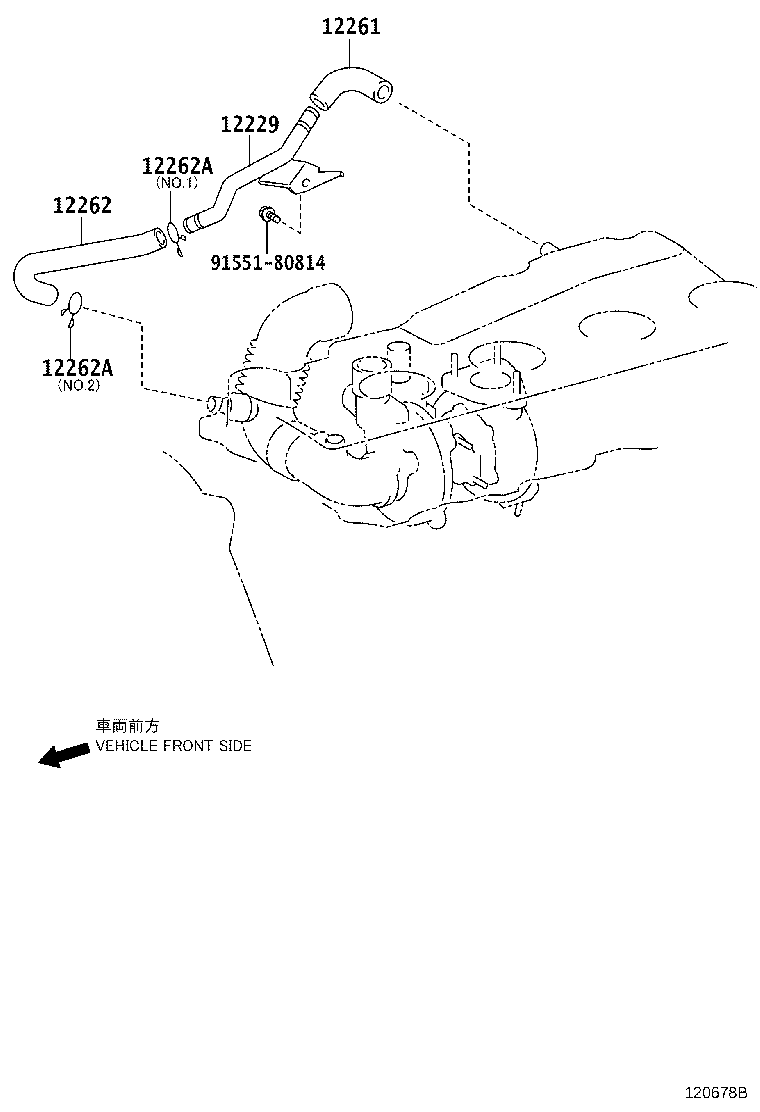

Click highlighted areas on diagram

Click highlighted areas on diagram

Part #	Description	Period	Qty
12229 - PIPE, VENTILATION
12229-30100	1KDFTV..KDY221,231,251,261..EUR	09/2011 - 12/2999	1
12229-30120	1KDFTV..KDY221,231,251,261..EUR	05/2009 - 09/2011	1
12229-30100	1KDFTV..KDY221,231,251,261..EUR	09/2007 - 05/2009	1
12261 - HOSE, VENTILATION
12261-30040	1KDFTV..KDY221,231,251,261	09/2006 - 12/2999	1
12262 - HOSE, VENTILATION, NO.2
12262-30060	1KDFTV..KDY221,231,251,261..EUR	09/2007 - 05/2009	1
12262-30060	1KDFTV..KDY221,231,251,261..EUR	09/2011 - 12/2999	1
12262-30070	1KDFTV..KDY221,231,251,261..EUR	05/2009 - 09/2011	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-20009	1KDFTV..KDY221,231,251,261..EUR NO.1	05/2009 - 09/2011	1
96134-42300	1KDFTV..KDY221,231,251,261..EUR NO.2	05/2009 - 09/2011	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-20009	1KDFTV..KDY221,231,251,261..EUR NO.1	05/2009 - 09/2011	1
96134-42300	1KDFTV..KDY221,231,251,261..EUR NO.2	05/2009 - 09/2011	1
Common parts
91551-80814

Click highlighted areas on diagram

Part #	Description	Period	Qty
12229 - PIPE, VENTILATION
12229-30100	1KDFTV..KDY221,231,251,261..EUR	09/2011 - 12/2999	1
12229-30120	1KDFTV..KDY221,231,251,261..EUR	05/2009 - 09/2011	1
12229-30100	1KDFTV..KDY221,231,251,261..EUR	09/2007 - 05/2009	1
12261 - HOSE, VENTILATION
12261-30040	1KDFTV..KDY221,231,251,261	09/2006 - 12/2999	1
12262 - HOSE, VENTILATION, NO.2
12262-30060	1KDFTV..KDY221,231,251,261..EUR	09/2007 - 05/2009	1
12262-30060	1KDFTV..KDY221,231,251,261..EUR	09/2011 - 12/2999	1
12262-30070	1KDFTV..KDY221,231,251,261..EUR	05/2009 - 09/2011	1
Common parts
91551-80812
91671-80814
