KDY230L-PSMBYW3 (2001)
Toyota Dyna
Production
Aug 2001
-
Sep 2006
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

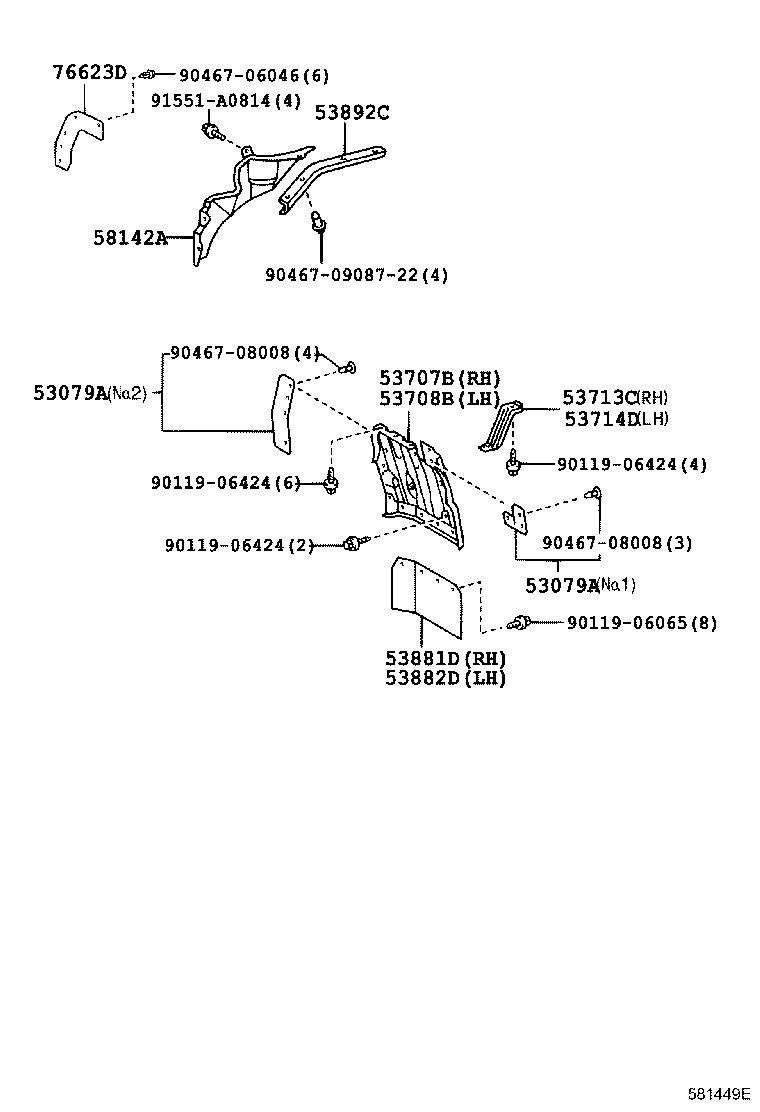

ILLUST NO. 2 OF 3(0108- )KDY23#,25#,26#..10T,125T
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53079A - SEAL SUB-ASSY, FRONT FENDER APRON, LOWER | ||||
| 53079-25020 |
KDY230,250,260..10T,125T NO.2 |
1 | ||
| 53079A - SEAL SUB-ASSY, FRONT FENDER APRON, LOWER | ||||
| 53079-25020 |
KDY230,250,260..10T,125T NO.2 |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53715-25010 |
KDY230,250,260..10T,125T |
1 | ||
| 53715-25010 |
KDY230,250,260..10T,125T |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-25040 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-25010 |
KDY220,230,250,260,LY220,230 |
1 | ||
| 58142A - APRON, FRONT FLOOR SIDE, NO.1 LH | ||||
| 58142-25030 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| Common parts | ||||
| 90119-06065 | ||||
| 90119-06424 | ||||
| 90467-06046 | ||||
| 90467-08008 | ||||
| 90467-0908722 | ||||
| 91551-A0814 | ||||

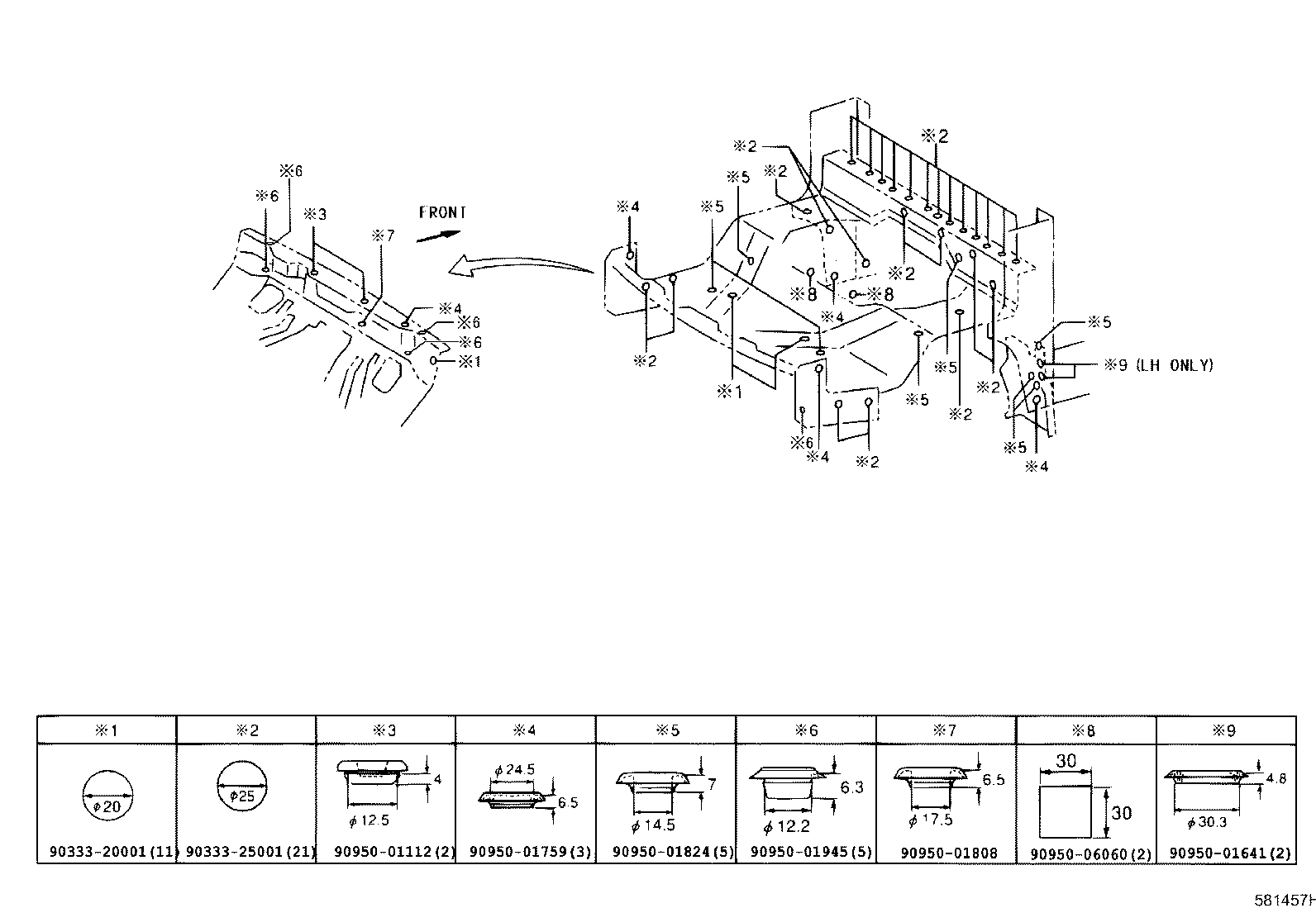

ILLUST NO. 3 OF 3(0108- )KDY23#,25#,26#..10T,125T
Click highlighted areas on diagram
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01112 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01945 | ||||
| 90950-06060 | ||||
