KDY221R-TBMDYW3 (2006)

Toyota Dyna

Production Oct 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0107-1610)RHD

Click highlighted areas on diagram

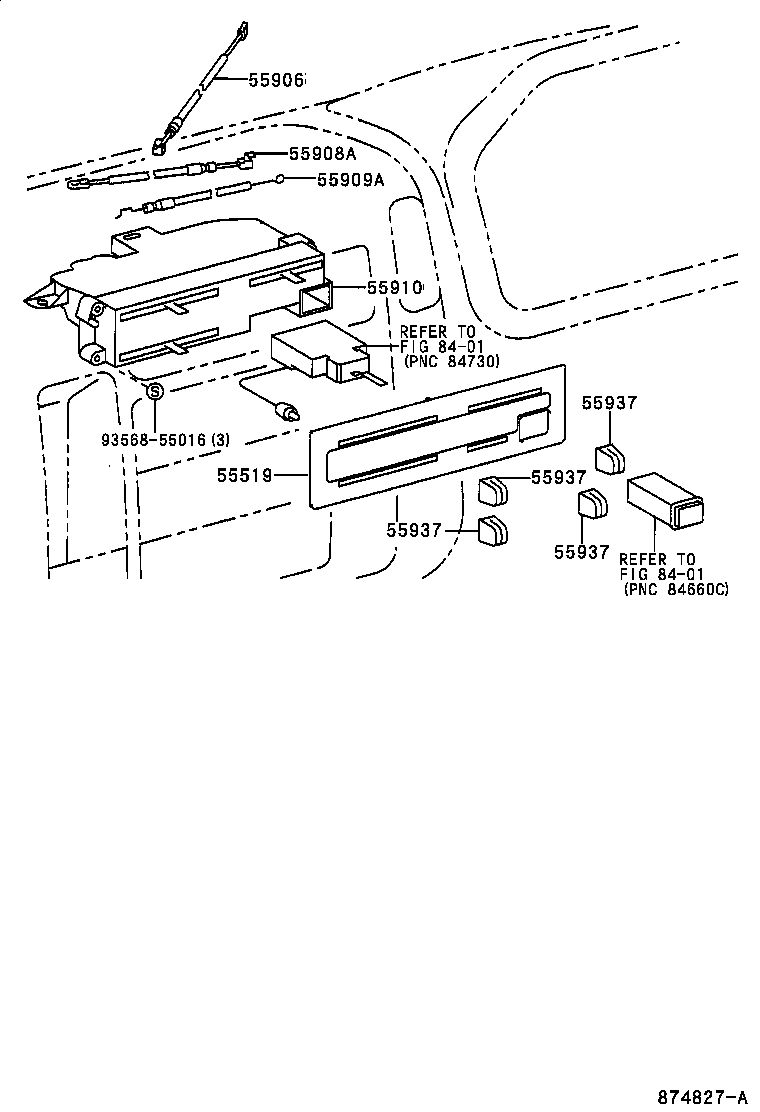

CONTROL PANEL

diagram 55519 55906 55908A 55909A 55910 55937 55937 55937 55937 8401 8401 9356855016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-37080

LY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-37050

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-37030

LY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-37040

LY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-37061

LY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD..(ARL,EUR,SA)

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 4
Common parts
93568-55016
Linked diagrams
8401

ILLUST NO. 2 OF 3(0107-1610)RHD

Click highlighted areas on diagram

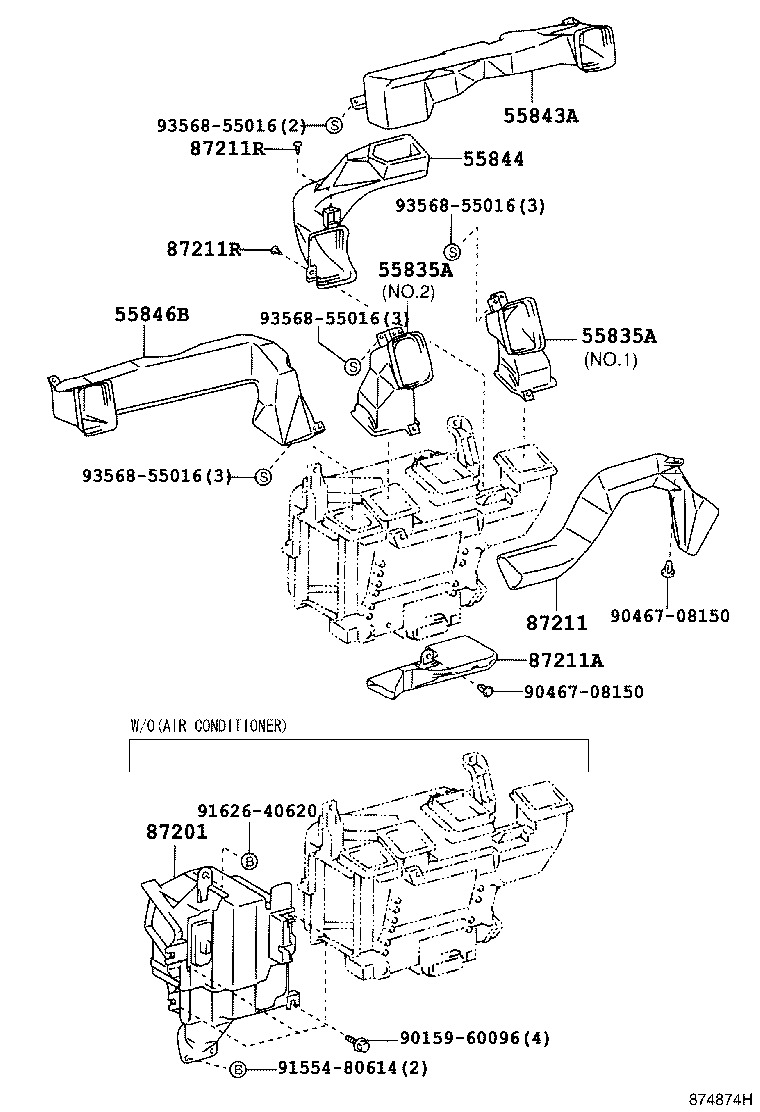

AIR DUCT

diagram 55835A 55835A 55843A 55844 55846B 87201 87211 87211A 87211R 87211R 9015960096 9046708150 9046708150 9155480614 9162640620 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37020

LY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD

NO.2

 1
55835-37010

LY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD

NO.1

 1
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37020

LY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD

NO.2

 1
55835-37010

LY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD

NO.1

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-25020

LY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD

 1
55846B - DUCT, HEATER TO REGISTER, NO.4
55846-37050

LY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD..(ARL,EUR,SA)

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-37150

LY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD

 1
87211 - DUCT, AIR, NO.1
87212-37010

LY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD..(ARL,EUR,SA)

 1
87211R - CLIP, AIR DUCT
90467-10005B0

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

MD.CHARCOAL,TRIM1#

 2
87211R - CLIP, AIR DUCT
90467-10005B0

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

MD.CHARCOAL,TRIM1#

 2
Common parts
90159-60096
90467-08150
91554-80614
91626-40620
93568-55016
