KDY221R-TBMDYW3 (2006)

Toyota Dyna

Production Oct 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

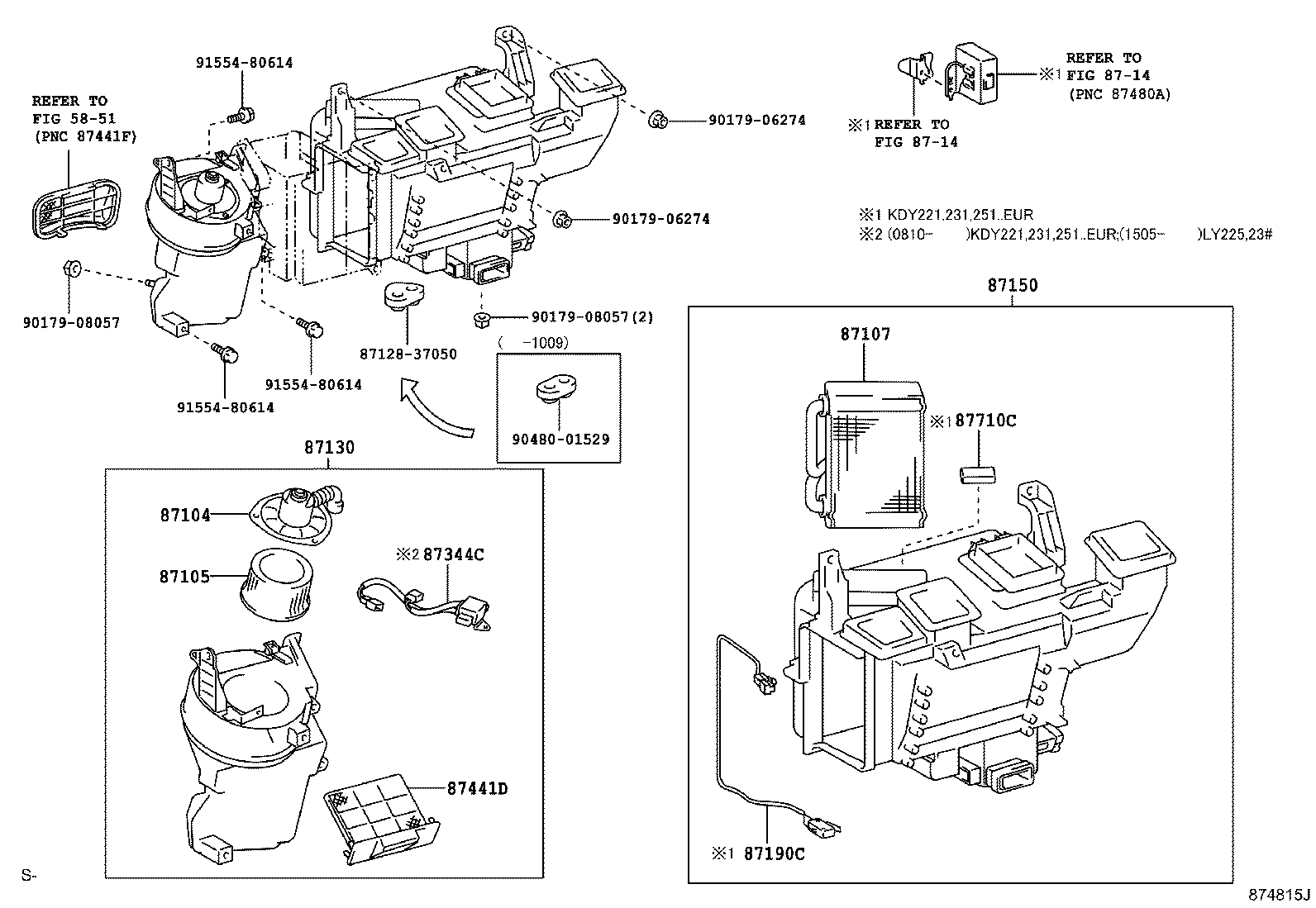

ILLUST NO. 1 OF 2(0107-1610)LY22#,23#..RHD ; (0108-1610)KDY22#,23#,25#..RHD

Click highlighted areas on diagram

FRONT

diagram 5851 87104 87105 87107 8712837050 87130 8714 8714 87150 87190C 87344C 87441D 87710C 9017906274 9017906274 9017908057 9017908057 9048001529 9155480614 9155480614 9155480614
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37120

LY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD..(ARL,EUR,SA)

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030

LY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD..(ARL,EUR,SA)

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37150

KDY221,231,251..RHD..EUR

 1
87130-25040

KDY221,231,251..RHD..EUR

 1
87710C - HEATER ASSY, QUICK
87700-25030

KDY221,231,251..RHD..EUR

 1
87700-25010

KDY221,231,251..RHD..EUR

 1
Common parts
87128-37050
90179-06274
90179-08057
90480-01529
91554-80614
Linked diagrams
5851
8714
