KDY221R-TBMDYW3 (2006)

Toyota Dyna

Production Oct 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

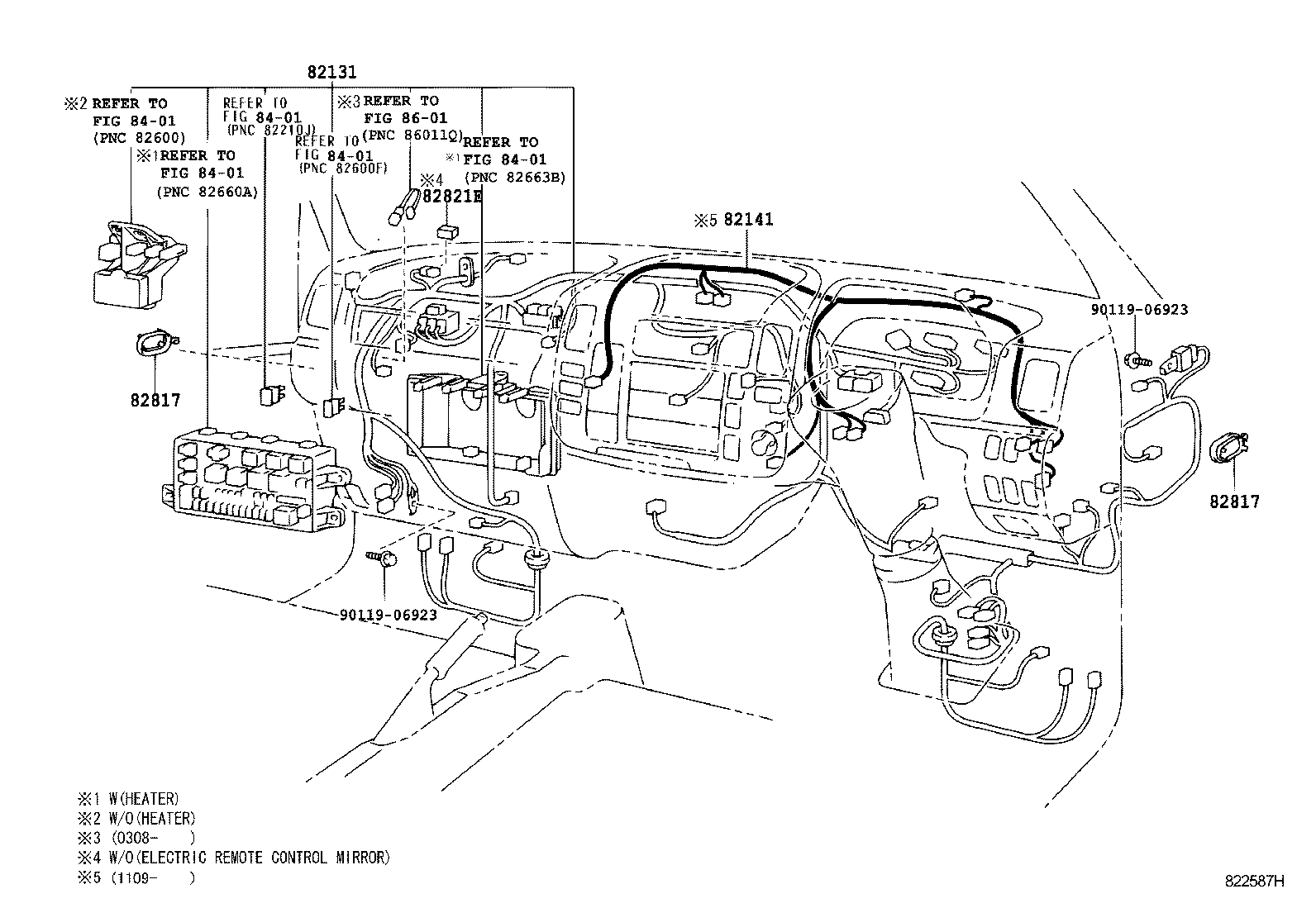

ILLUST NO. 2 OF 5(0107-1610)RHD

Click highlighted areas on diagram

COWL & INSTRUMENT PANEL

diagram 82131 82141 82817 82817 82821E 8401 8401 8401 8401 8401 8601 9011906923 9011906923
Part # Description Qty Price
82131 - WIRE, COWL
82131-25G80

KDY221,231,251..RHD..EUR

W(HEADLAMP LEVELING)

 1
82131-25G90

KDY221,231,251..RHD..EUR

 1
82131-25C30

KDY221,231,251..RHD..EUR

W(HEADLAMP LEVELING)

 1
82131-25K80

KDY221,231,251..RHD..EUR

W(HEADLAMP LEVELING)

 1
82131-25K90

KDY221,231,251..RHD..EUR

 1
82131-25K10

KDY221,231,251..RHD..EUR

 1
82131-25R20

KDY221,231,251..RHD..EUR

 1
82131-25R21

KDY221,231,251..RHD..EUR

 1
82131-25R10

KDY221,231,251..RHD..EUR

W(HEADLAMP LEVELING)

 1
82131-25R11

KDY221,231,251..RHD..EUR

W(HEADLAMP LEVELING)

 1
82141 - WIRE, INSTRUMENT PANEL
82141-25110

KDY221,231,251..RHD..EUR

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110

LY235..WT;KDY220..RHD..IV3;KDY221,231,251,261,LY220,230..ARL,EUR

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110

LY235..WT;KDY220..RHD..IV3;KDY221,231,251,261,LY220,230..ARL,EUR

 2
Common parts
90119-06923
Linked diagrams
8401
8601
