KDY221R-TBMDYW3 (2006)

Toyota Dyna

Production Oct 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0907)RHD..EUR ; (0609-1310)KDY221,231..GEN

Click highlighted areas on diagram

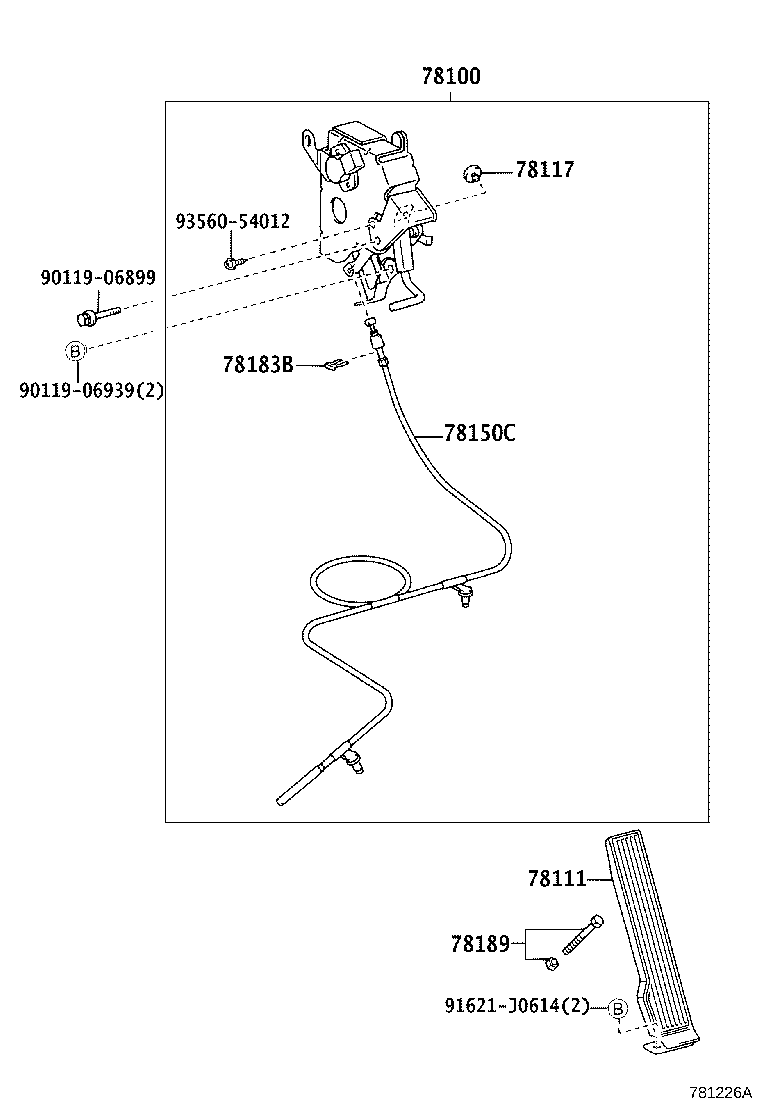

diagram 78100 78111 78117 78150C 78183B 78189 9011906899 9011906939 91621J0614 9356054012
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78110-95410

KDY221,231,251..RHD..EUR

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06038

KDY221,231,251,261..EUR

 1
Common parts
90119-06899
90119-06939
91621-J0614
93560-54012

(0907- )RHD..EUR ; (1310- )KDY221,231..GEN

Click highlighted areas on diagram

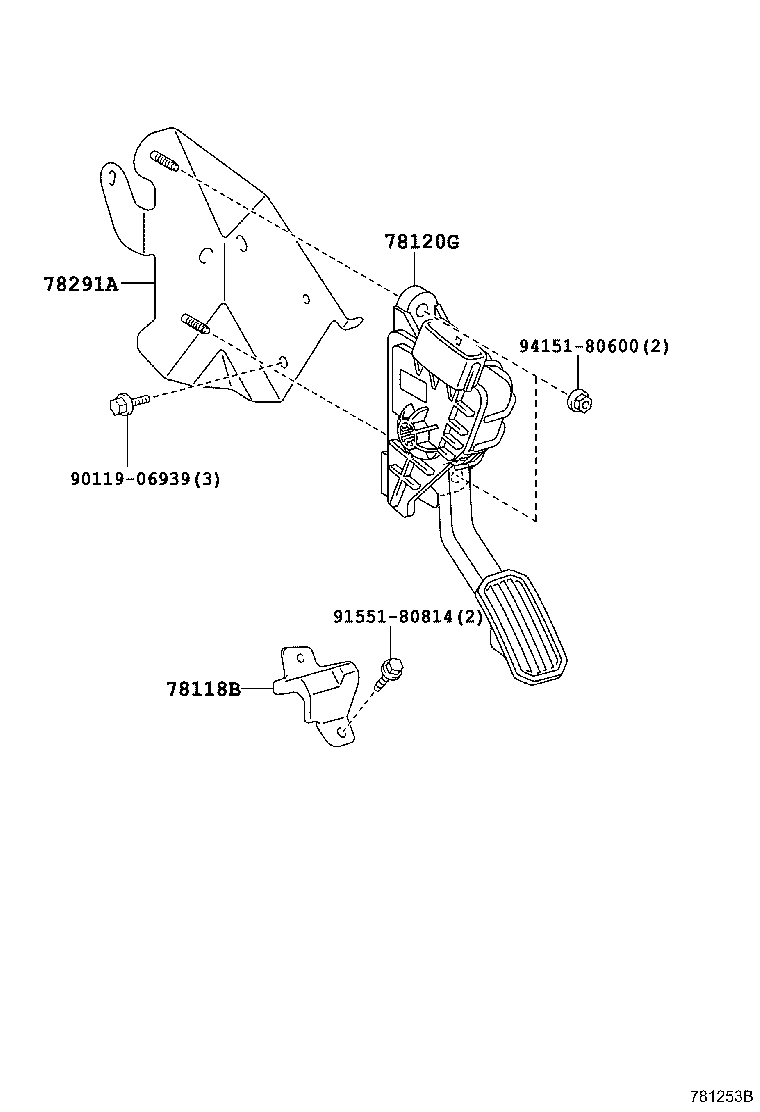

diagram 78118B 78120G 78291A 9011906939 9155180814 9415180600
Part # Description Qty Price
78291A - BRACKET, ACCELERATOR LINK
78291-37070

KDY221,231,251..RHD..EUR

 1
Common parts
90119-06939
91551-80814
94151-80600
