KDY221R-TBMDYW3 (2006)
Toyota Dyna

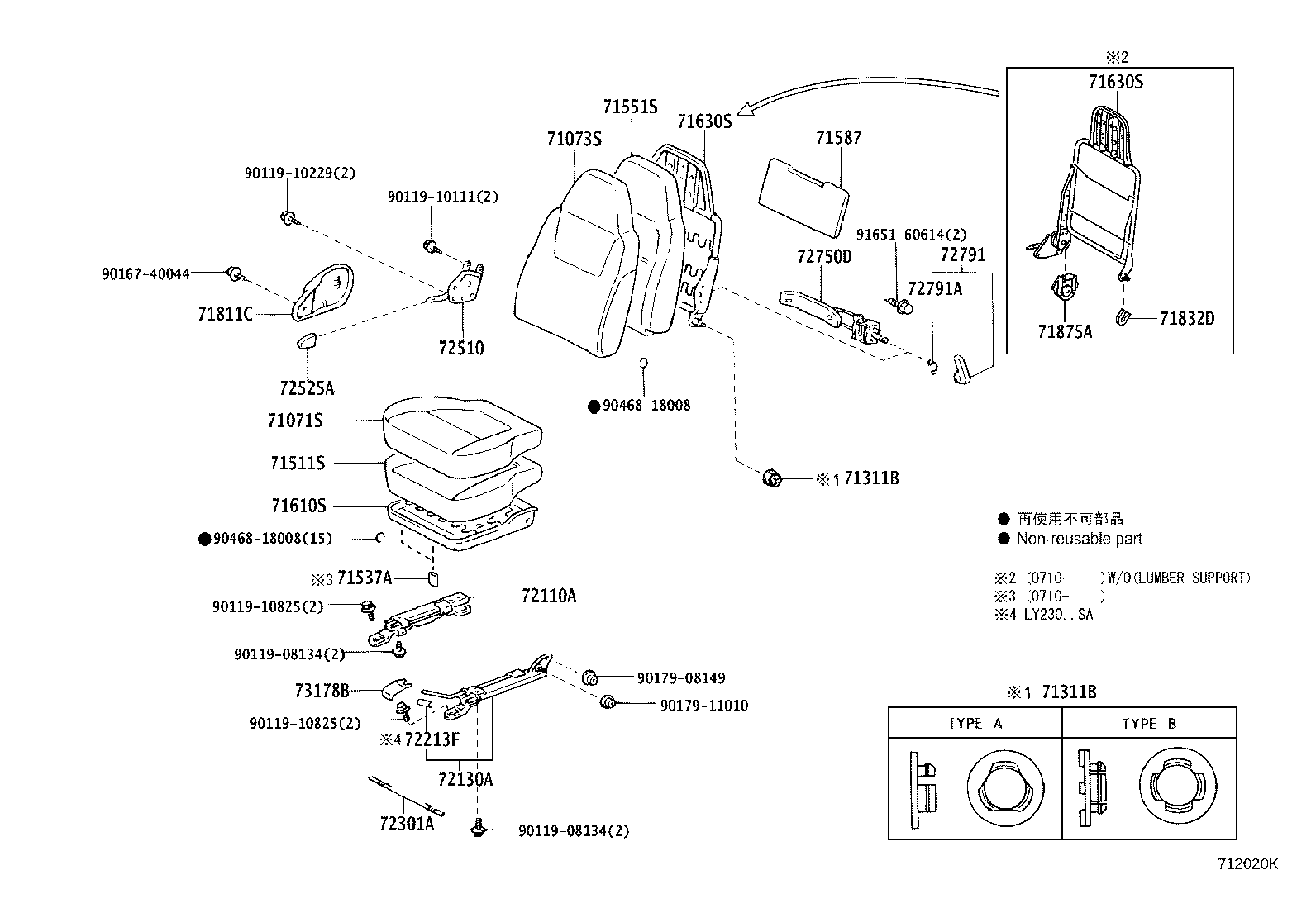

ILLUST NO. 1 OF 3(0107-1610)RHD
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37760B0 |
KDY221,231,251..RHD..EUR FABRIC SEAT,MD. CHARCOAL,TRIM1# |
1 | ||
| 71071-37810B2 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT),MD. CHARCOAL,TRIM1# |
1 | ||
| 71071-37810B0 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT),MD. CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-37120B0 |
KDY221,231,251..RHD..EUR FABRIC SEAT,MD. CHARCOAL,TRIM1# |
1 | ||
| 71073-25350B1 |
KDY221,231,251..RHD..EUR MD. CHARCOAL,TRIM1# |
1 | ||
| 71073-25350B0 |
KDY221,231,251..RHD..EUR MD. CHARCOAL,TRIM1# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12053 |
KDY221,231,251,261..EUR TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90386-12051 |
LY225,235..LHD;KDY220..RHD..IV3;KDY221,231,251,261 TYPE A:REFER ILLUST. |
1 | ||
| 90386-12053 |
LY225,235..LHD;KDY220..RHD..IV3;KDY221,231,251,261 TYPE B:REFER ILLUST. |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12053 |
KDY221,231,251,261..EUR TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90386-12051 |
LY225,235..LHD;KDY220..RHD..IV3;KDY221,231,251,261 TYPE A:REFER ILLUST. |
1 | ||
| 90386-12053 |
LY225,235..LHD;KDY220..RHD..IV3;KDY221,231,251,261 TYPE B:REFER ILLUST. |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37080 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 71511-37130 |
KDY221,231,251..RHD..EUR |
1 | ||
| 71511-37080 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
KDY221,231,251,261..EUR |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-25040 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT) |
1 | ||
| 71551-37160 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 71551-37220 |
KDY221,231,251..RHD..EUR |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-37030 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 71587-37020 |
KDY221,231,251,261..EUR |
1 | ||
| 71587-37021 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-37010 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-37110 |
KDY221,231,251..RHD..EUR |
1 | ||
| 71630-25020 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT) |
1 | ||
| 71630-25021 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT) |
1 | ||
| 71630-25060 |
KDY221,231,251,LY225,23#..RHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-37110 |
KDY221,231,251..RHD..EUR |
1 | ||
| 71630-25020 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT) |
1 | ||
| 71630-25021 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT) |
1 | ||
| 71630-25060 |
KDY221,231,251,LY225,23#..RHD |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-37010B0 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37020B0 |
KDY221,231,251..RHD..EUR MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37011B0 |
KDY221,231,251..RHD..EUR W(LUMBAR SUPPORT),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37010B0 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37021B0 |
KDY221,231,251,LY225,23#..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-37010 |
KDY221,231,251,261..EUR |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-37010 |
KDY221,231,251..RHD..EUR |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37020 |
KDY221,231,251..RHD..EUR |
1 | ||
| 72110-37020 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37020 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 72130-37020 |
KDY221,231,251..RHD..EUR |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-37030 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 72301-37030 |
KDY221,231,251..RHD..EUR |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-37020 |
KDY221,231,251..RHD..EUR |
1 | ||
| 72510-37020 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-37010B0 |
LY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA) MD.CHARCOAL,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-37030 |
KDY221,231,251..RHD..EUR |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010B9 |
KDY221,231,251,261..EUR MD.CHARCOAL,TRIM1# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01006 |
KDY221,231,251,261..EUR |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 72137-37010B0 |
KDY22#,23#,25#,LY22#,23#..RHD DK.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10111 | ||||
| 90119-10229 | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90179-08149 | ||||
| 90179-11010 | ||||
| 90468-18008 | ||||
| 91651-60614 | ||||

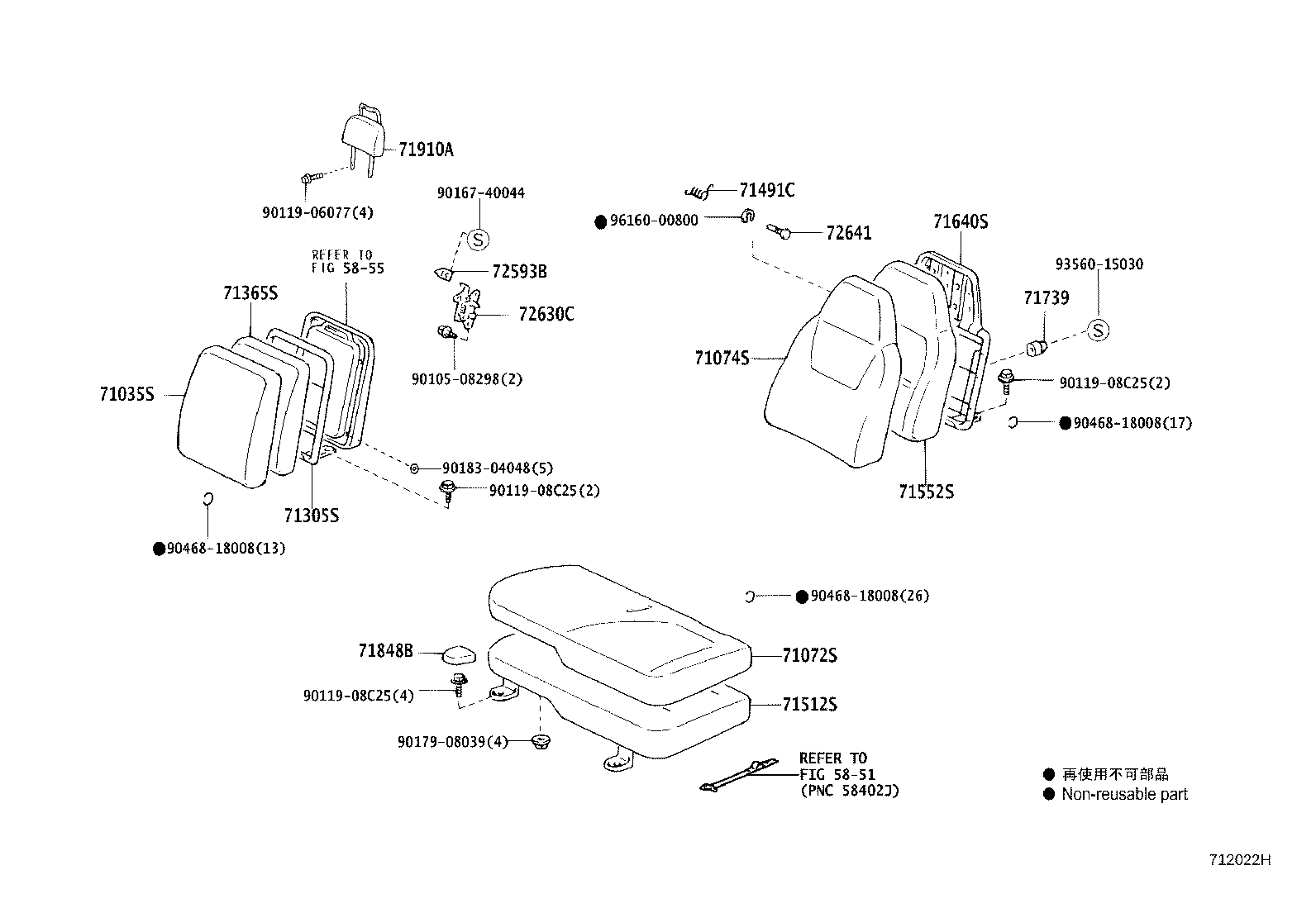

ILLUST NO. 2 OF 3(0107-1610)RHD
PASSENGER SEAT,W(SEAT BACK CONSOLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-37480B1 |
KDY221,231,251..RHD FABRIC SEAT,MD. CHARCOAL,TRIM1# |
1 | ||
| 71095-37480B0 |
KDY221,231,251..RHD..EUR FABRIC SEAT,MD. CHARCOAL,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3V500B0 |
KDY221,231,251..RHD..EUR FABRIC SEAT,MD. CHARCOAL,TRIM1# |
1 | ||
| 71072-25350B0 |
KDY221,231,251..RHD SEAT=TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-37420B0 |
KDY221,231,251..RHD..EUR FABRIC SEAT & W(SEAT BACK CONSOLE),MD. CHARCOAL,TRIM1# |
1 | ||
| 70169-37390B0 |
KDY221,231,251..RHD..EUR FABRIC SEAT & W(PASSENGER SEAT BENCH TYPE),MD. CHARCOAL,TRIM1# |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-37020 |
KDY221,231,251..RHD..EUR |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71365-37060 |
KDY221,231,251..RHD..EUR |
1 | ||
| 71365-37060 |
KDY221,231,251..RHD |
1 | ||
| 71365-25021 |
KDY221,231,251..RHD |
1 | ||
| 71365-25020 |
KDY221,231,251..RHD |
1 | ||
| 71491C - SPRING, REAR SEAT SET | ||||
| 71491-89101 |
LY225,235..RHD..ST;KDY221,231,251,261,LY230..EUR,GEN,SA |
1 | ||
| 71491-89101 |
KDY221,231,251,261..EUR |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-25060 |
KDY221,231,251..RHD |
1 | ||
| 71502-25061 |
KDY221,231,251..RHD..EUR |
1 | ||
| 71502-37220 |
KDY221,231,251..RHD..EUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-37100 |
KDY221,231,251..RHD W(SEAT BACK CONSOLE) |
1 | ||
| 71552-37090 |
KDY22#,23#,25#,LY22#,23#..RHD W(PASSENGER SEAT BENCH TYPE) |
1 | ||
| 71552-37170 |
KDY221,231,251..RHD..EUR W(PASSENGER SEAT BENCH TYPE) |
1 | ||
| 71552-25090 |
KDY221,231,251..RHD W(SEAT BACK CONSOLE) |
1 | ||
| 71552-37100 |
KDY221,231,251..RHD..EUR W(SEAT BACK CONSOLE) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-37150 |
KDY221,231,251..RHD..EUR W(PASSENGER SEAT BENCH TYPE) |
1 | ||
| 71014-37160 |
KDY221,231,251..RHD..EUR W(SEAT BACK CONSOLE) |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
KDY221,231,251,261..EUR |
2 | ||
| 71739-37010 |
LY235..ST;KDY221,231,251,261,LY225,230..EUR,GEN,SA |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-25110B0 |
KDY221..IV3;KDY231,251,261..15T..IV3 PORTUGAL CKD,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-25090B1 |
KDY221..EUR;KDY231,251,261..15T..IV3 MEDIUM CHA,TRIM1# |
1 | ||
| 71910-25130B0 |
KDY221..EUR;KDY231,251,261..15T..IV3 MD.CHARCOAL,TRIM1# |
1 | ||
| 72593B - KNOB, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72593-37020B0 |
KDY221,231,251..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-37020 |
KDY221,231,251..RHD |
1 | ||
| 72630-37020 |
KDY221,231,251..RHD..EUR |
1 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-37010 |
LY235..ST;KDY221,231,251,261,LY225,230..EUR,GEN,SA |
1 | ||
| 72641-37010 |
KDY221,231,251,261..EUR |
1 | ||
| Common parts | ||||
| 90105-08298 | ||||
| 90119-06077 | ||||
| 90119-08C25 | ||||
| 90167-40044 | ||||
| 90179-08039 | ||||
| 90183-04048 | ||||
| 90468-18008 | ||||
| 93560-15030 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 5855 | ||||

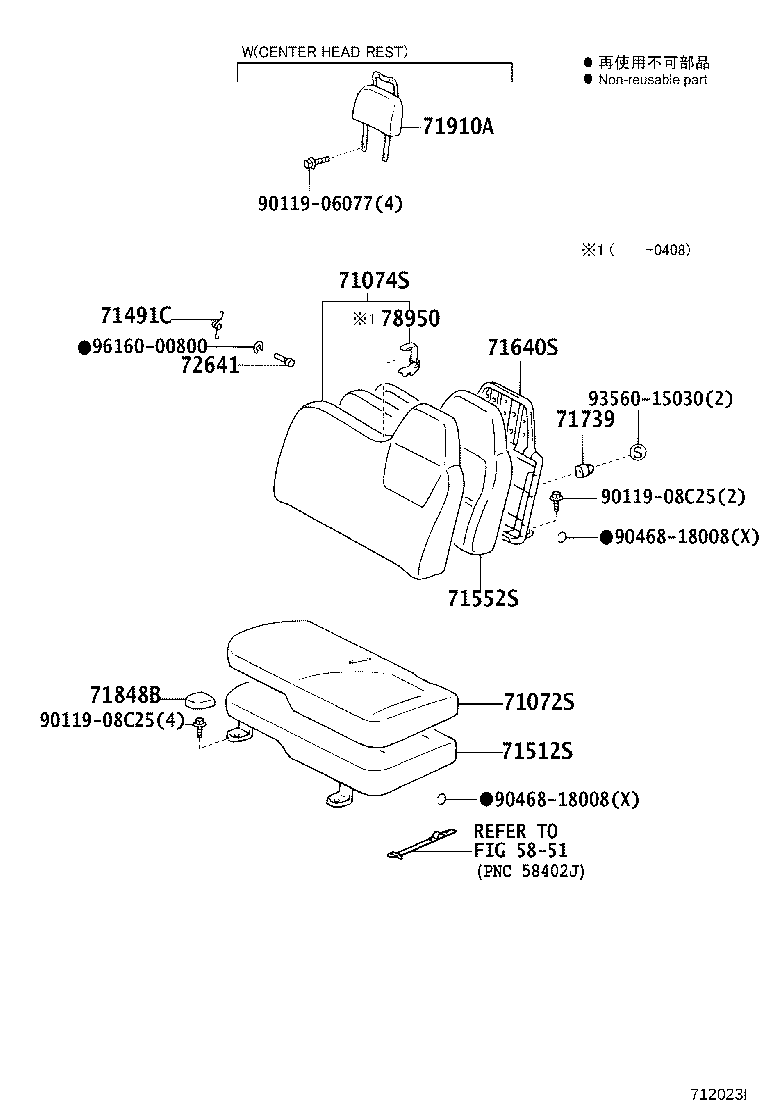

ILLUST NO. 2 OF 3(0107-1610)RHD ; (1610- )LY235..RHD
PASSENGER SEAT, BENCH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3V500B0 |
KDY221,231,251..RHD..EUR FABRIC SEAT,MD. CHARCOAL,TRIM1# |
1 | ||
| 71072-25350B0 |
KDY221,231,251..RHD SEAT=TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-37420B0 |
KDY221,231,251..RHD..EUR FABRIC SEAT & W(SEAT BACK CONSOLE),MD. CHARCOAL,TRIM1# |
1 | ||
| 70169-37390B0 |
KDY221,231,251..RHD..EUR FABRIC SEAT & W(PASSENGER SEAT BENCH TYPE),MD. CHARCOAL,TRIM1# |
1 | ||
| 71491C - SPRING, REAR SEAT SET | ||||
| 71491-89101 |
LY225,235..RHD..ST;KDY221,231,251,261,LY230..EUR,GEN,SA |
1 | ||
| 71491-89101 |
KDY221,231,251,261..EUR |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-25060 |
KDY221,231,251..RHD |
1 | ||
| 71502-25061 |
KDY221,231,251..RHD..EUR |
1 | ||
| 71502-37220 |
KDY221,231,251..RHD..EUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-37100 |
KDY221,231,251..RHD W(SEAT BACK CONSOLE) |
1 | ||
| 71552-37090 |
KDY22#,23#,25#,LY22#,23#..RHD W(PASSENGER SEAT BENCH TYPE) |
1 | ||
| 71552-37170 |
KDY221,231,251..RHD..EUR W(PASSENGER SEAT BENCH TYPE) |
1 | ||
| 71552-25090 |
KDY221,231,251..RHD W(SEAT BACK CONSOLE) |
1 | ||
| 71552-37100 |
KDY221,231,251..RHD..EUR W(SEAT BACK CONSOLE) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-37150 |
KDY221,231,251..RHD..EUR W(PASSENGER SEAT BENCH TYPE) |
1 | ||
| 71014-37160 |
KDY221,231,251..RHD..EUR W(SEAT BACK CONSOLE) |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
KDY221,231,251,261..EUR |
2 | ||
| 71739-37010 |
LY235..ST;KDY221,231,251,261,LY225,230..EUR,GEN,SA |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-25110B0 |
KDY221..IV3;KDY231,251,261..15T..IV3 PORTUGAL CKD,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-25090B1 |
KDY221..EUR;KDY231,251,261..15T..IV3 MEDIUM CHA,TRIM1# |
1 | ||
| 71910-25130B0 |
KDY221..EUR;KDY231,251,261..15T..IV3 MD.CHARCOAL,TRIM1# |
1 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-37010 |
LY235..ST;KDY221,231,251,261,LY225,230..EUR,GEN,SA |
1 | ||
| 72641-37010 |
KDY221,231,251,261..EUR |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90119-08C25 | ||||
| 90468-18008 | ||||
| 93560-15030 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 5851 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
