KDY220L-TBMDYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0210)KDY220,230,LY22#..ST

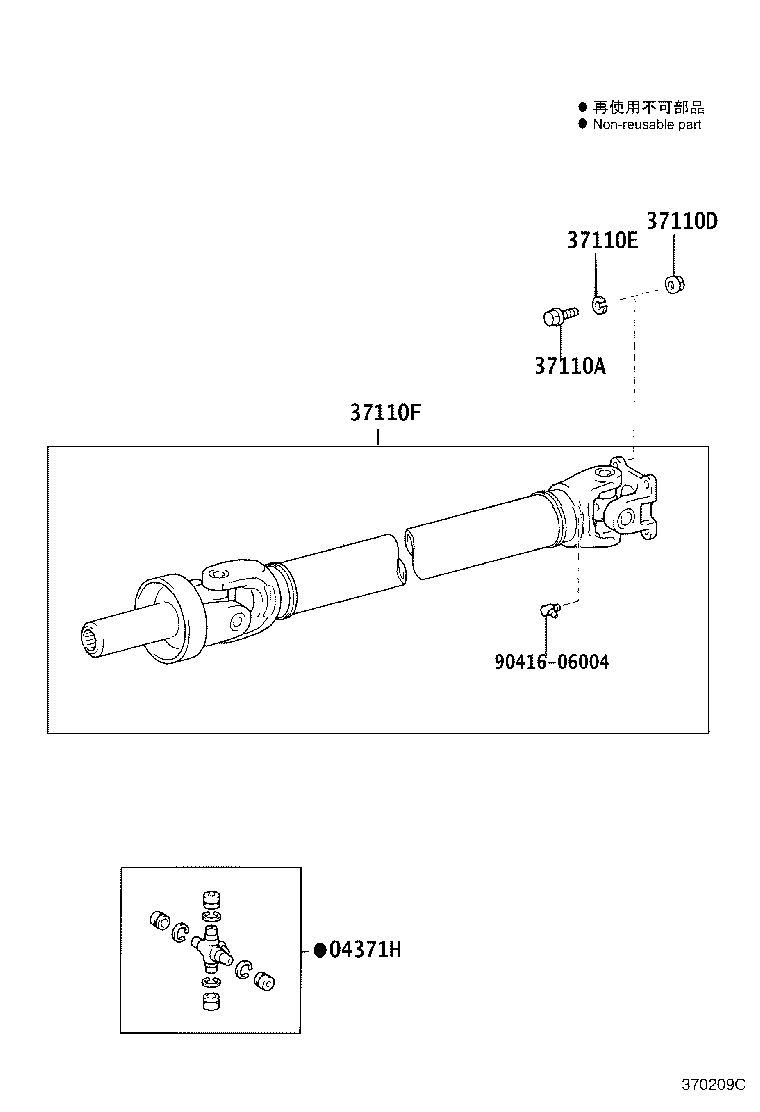

Click highlighted areas on diagram

diagram 04371H 37110A 37110D 37110E 37110F 9041606004
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-60070

KDY230..ST;KDY231..CBU;KDY231..ST..IV3;KDY22#,LY220,23#

 2
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3

*10-1.00PX27-13

 4
37110D - NUT (FOR PROPELLER SHAFT)
90179-10059

KDY22#,23#,LY22#..ST

H=9

 4
37110E - WASHER (FOR PROPELLER SHAFT)
90204-10002

KDY22#,23#,LY22#..ST

 4
Common parts
90416-06004

(0210- )KDY22#,23#,LY22#..ST

Click highlighted areas on diagram

diagram 04371H 37110A 37110D 37110E 37110F 37401E
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-60070

KDY230..ST;KDY231..CBU;KDY231..ST..IV3;KDY22#,LY220,23#

 2
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3

*10-1.00PX27-13

 4
37110D - NUT (FOR PROPELLER SHAFT)
90179-10059

KDY22#,23#,LY22#..ST

H=9

 4
37110E - WASHER (FOR PROPELLER SHAFT)
90204-10002

KDY22#,23#,LY22#..ST

 4
