HU50R-MRDTQ3 (1982)
Toyota Dyna
Production
Apr 1982
-
Aug 1984
Engine
2H
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8204-8408)BU40,HU40,50,WU40,50

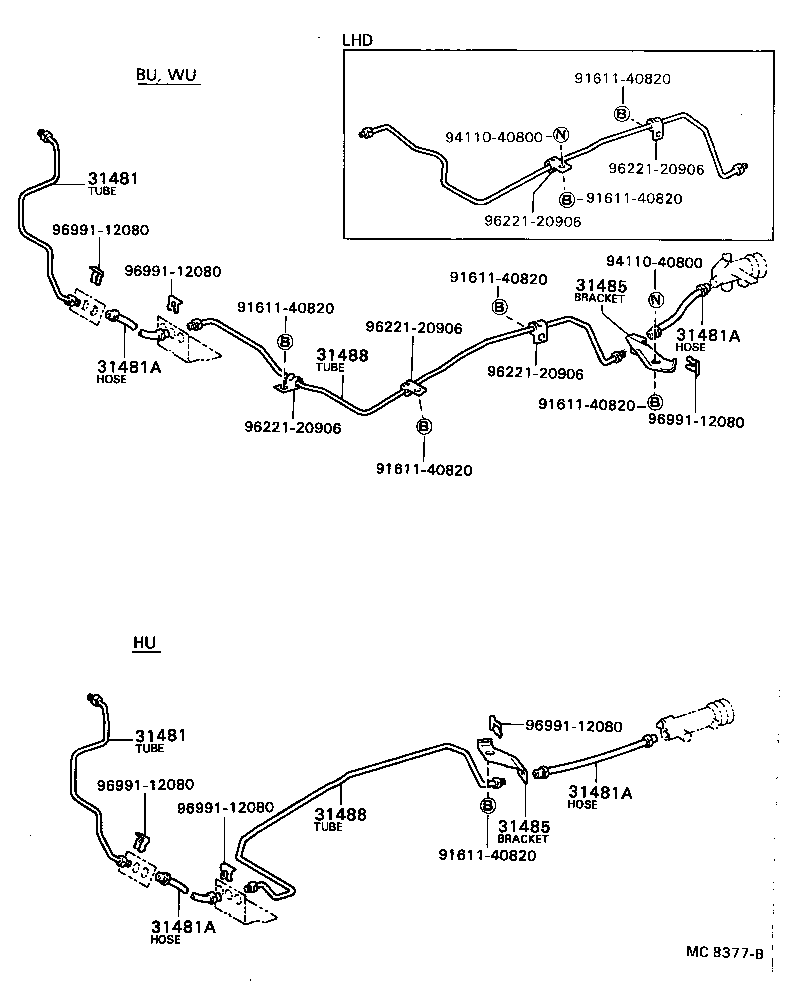

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-36170 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-36170 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-33405 |
BU36,40,HU40,50,WU40,50 FR |
1 | ||
| 96912-33705 |
HU40,50 RR |
1 | ||
| 96912-33905 |
WU40,50 RR |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-33405 |
BU36,40,HU40,50,WU40,50 FR |
1 | ||
| 96912-33705 |
HU40,50 RR |
1 | ||
| 96912-33905 |
WU40,50 RR |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-33405 |
BU36,40,HU40,50,WU40,50 FR |
1 | ||
| 96912-33705 |
HU40,50 RR |
1 | ||
| 96912-33905 |
WU40,50 RR |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-33405 |
BU36,40,HU40,50,WU40,50 FR |
1 | ||
| 96912-33705 |
HU40,50 RR |
1 | ||
| 96912-33905 |
WU40,50 RR |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-36020 |
BU2#,3# |
1 | ||
| 31485-36040 |
WU40,50 |
1 | ||
| 31484-36070 |
HU40,50 |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-36020 |
BU2#,3# |
1 | ||
| 31485-36040 |
WU40,50 |
1 | ||
| 31484-36070 |
HU40,50 |
1 | ||
| 31488 - TUBE, CONNECTOR TO TUBE CONNECTOR | ||||
| 31488-36160 |
HU40,50 |
1 | ||
| 31488 - TUBE, CONNECTOR TO TUBE CONNECTOR | ||||
| 31488-36160 |
HU40,50 |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
| 96221-20906 | ||||
| 96991-12080 | ||||
