HU50R-MRDT3 (1982)

Toyota Dyna

Production Apr 1982 - Aug 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

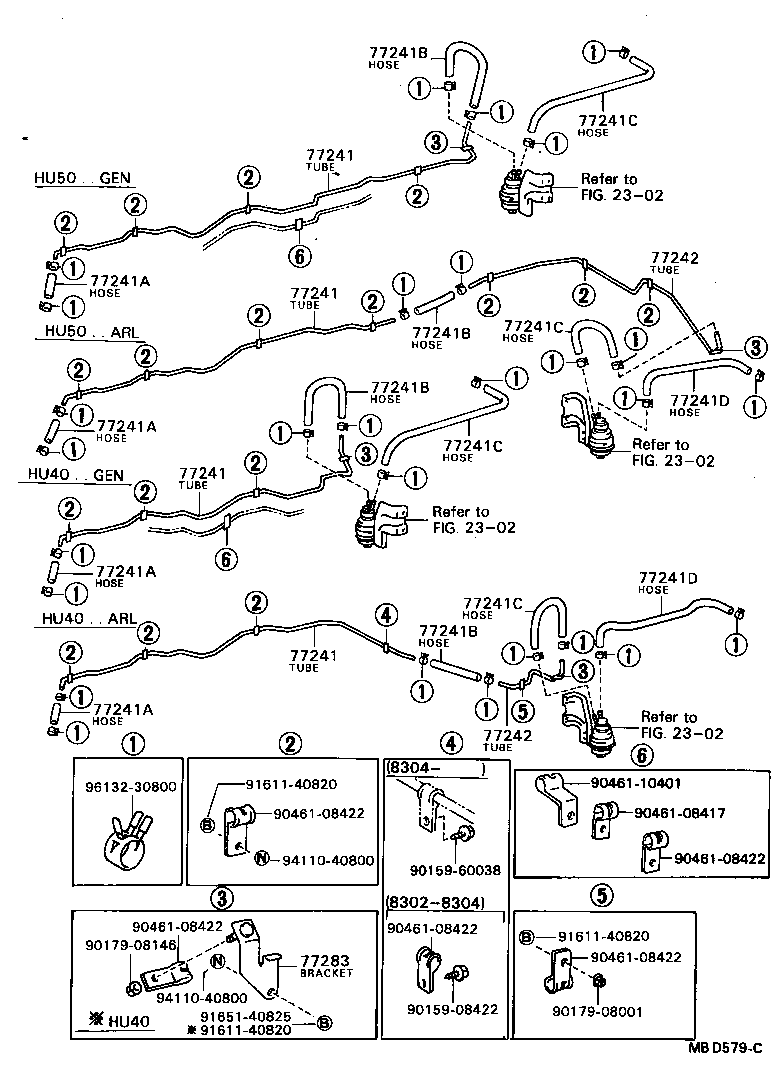

(8204-8408)HU40,50

Click highlighted areas on diagram

diagram 2302 2302 2302 2302 77241 77241 77241 77241 77241A 77241A 77241A 77241A 77241B 77241B 77241B 77241B 77241C 77241C 77241C 77241C 77241D 77241D 77242 77242 77283 9015908422 9015960038 9017908001 9017908146 9046108417 9046108422 9046108422 9046108422 9046108422 9046108422 9046110401 9161140820 9161140820 9161140820 9165140825 9411040800 9411040800 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-36700

HU50..GEN

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36700

HU50..GEN

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36700

HU50..GEN

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36700

HU50..GEN

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

WU40,50

*H,L=180,ID=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

WU40,50

*H,L=180,ID=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

WU40,50

*H,L=180,ID=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

WU40,50

*H,L=180,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

HU50..GEN

*H,L=280,ID=7.6

 1
95332-08040

WU40,50

*H,L=320,ID=7.6

 2
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

HU50..GEN

*H,L=280,ID=7.6

 1
95332-08040

WU40,50

*H,L=320,ID=7.6

 2
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

HU50..GEN

*H,L=280,ID=7.6

 1
95332-08040

WU40,50

*H,L=320,ID=7.6

 2
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

HU50..GEN

*H,L=280,ID=7.6

 1
95332-08040

WU40,50

*H,L=320,ID=7.6

 2
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08090

HU50..GEN

*H,L=900,ID=7.6

 1
95332-08030

WU40,50

*H,L=220,ID=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08090

HU50..GEN

*H,L=900,ID=7.6

 1
95332-08030

WU40,50

*H,L=220,ID=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08090

HU50..GEN

*H,L=900,ID=7.6

 1
95332-08030

WU40,50

*H,L=220,ID=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08090

HU50..GEN

*H,L=900,ID=7.6

 1
95332-08030

WU40,50

*H,L=220,ID=7.6

 1
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95332-08040

WU40,50

*H,L=320,ID=7.6

 1
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95332-08040

WU40,50

*H,L=320,ID=7.6

 1
77283 - BRACKET, FUEL TUBE
58266-36070

BU36,40,HU40,50,WU50

TYPE B

 1
Common parts
90159-08422
90159-60038
90179-08001
90179-08146
90461-08417
90461-08422
90461-10401
91611-40820
91651-40825
94110-40800
96132-30800
Linked diagrams
2302

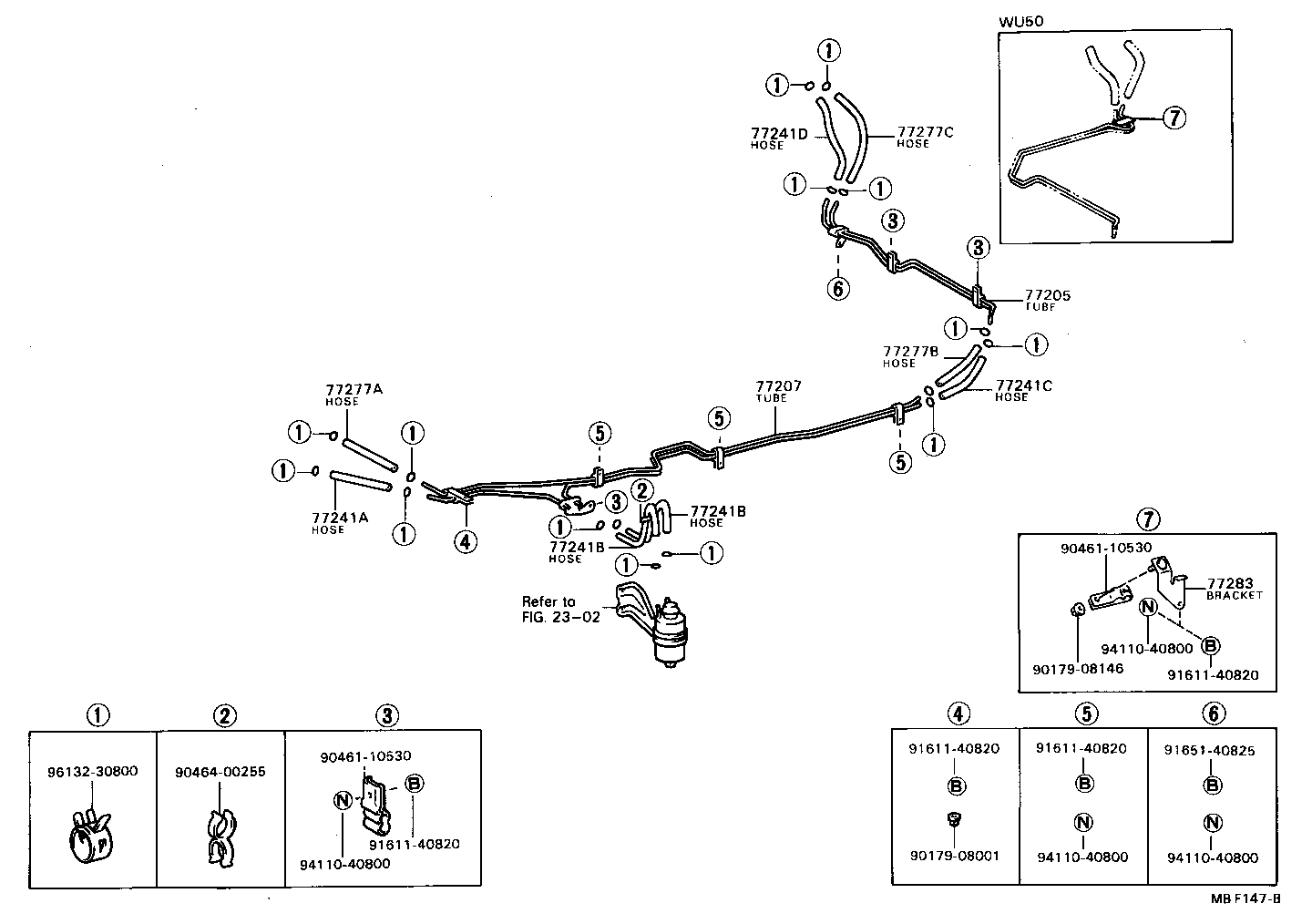

(8304-8408)WU40,50

Click highlighted areas on diagram

diagram 2302 77205 77207 77241A 77241B 77241B 77241C 77241D 77277A 77277B 77277C 77283 9017908001 9017908146 9046110530 9046110530 9046400255 9161140820 9161140820 9161140820 9161140820 9165140825 9411040800 9411040800 9411040800 9411040800 9613230800
Part # Description Qty Price
77207 - TUBE SUB-ASSY, FUEL
77206-36120

WU40,50

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

WU40,50

*H,L=180,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

HU50..GEN

*H,L=280,ID=7.6

 1
95332-08040

WU40,50

*H,L=320,ID=7.6

 2
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

HU50..GEN

*H,L=280,ID=7.6

 1
95332-08040

WU40,50

*H,L=320,ID=7.6

 2
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08090

HU50..GEN

*H,L=900,ID=7.6

 1
95332-08030

WU40,50

*H,L=220,ID=7.6

 1
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95332-08040

WU40,50

*H,L=320,ID=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08020

WU40,50

*H,L=200,ID=7.6

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08030

WU40,50

*H,L=220,ID=7.6

 1
77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1)
95332-08040

WU40,50

*H,L=320,ID=7.6

 1
77283 - BRACKET, FUEL TUBE
58266-36070

BU36,40,HU40,50,WU50

TYPE B

 1
Common parts
90179-08001
90179-08146
90461-10530
90464-00255
91611-40820
91651-40825
94110-40800
96132-30800
Linked diagrams
2302
