HU50R-MRDT3 (1982)
Toyota Dyna
(8204-8408)BU36,40,HU40,50,WU40..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-95451 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 74650-95423 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 55317 - PATCH, INSTRUMENT PANEL | ||||
| 55317-95402 |
BU36,HU40,50,WU40,50..GEN RH,W/O SIDE DEFROSTER |
1 | ||
| 55318-95403 |
BU36,HU40,50,WU40,50..GEN LH,W/O SIDE DEFROSTER |
1 | ||
| 55318A - SUPPORT, FUSE BOX | ||||
| 55318-95401 |
BU36,40,HU40,50,WU40,50 |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55331-95401 |
BU36,40,HU40,50..RHD |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-95408 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 55401-95418 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 55408C - BASE, RESERVOIR TANK SERVICE HOLE DOOR | ||||
| 55432-95410 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-95400 |
BU2#,30,31,32,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 55415A - COVER, METER HOOD | ||||
| 55415-95403 |
BU2#,3#,HU30,JU20,RU2#,30 |
2 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55411-95424 |
BU36,40,HU40,50,WU40..RHD..GEN W/HEATER |
1 | ||
| 55411-95425 |
BU36,40,HU40,50,WU40..RHD..GEN |
1 | ||
| 55411-95446 |
BU36,40,HU40,50,WU40..RHD..GEN W/STEREO |
1 | ||
| 55411-95445 |
BU36,40,HU40,50,WU40..RHD..GEN W/HEATER & STEREO |
1 | ||
| 55427A - ORNAMENT SUB-ASSY, CENTER ACCESSORY | ||||
| 55407-95402 |
BU36,40,HU40,50,WU40..RHD W/CLOCK |
1 | ||
| 55308-95401 |
BU36,40,HU40,50,WU40..RHD |
1 | ||
| 55451 - OUTLET, AIR OUTER, RH | ||||
| 55409-95401 |
BU2#,3#,HU30,JU20,RU2#,30 |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55463-20041 |
BU2#,3#,40,HU30,40,50,JU20,WU40,50 |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-95A00 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-95403 |
BU36,40,HU40,50,WU40,50 |
1 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55950-95407 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55960-95408 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 55953 - REGISTER, DEFROSTER, CENTER | ||||
| 55953-95408 |
BU36,40,HU40,50,WU40,50 |
1 | ||
| Common parts | ||||
| 90119-06048 | ||||
| 90159-60026 | ||||
| 90179-05095 | ||||
| 90179-06011 | ||||
| 90183-05007 | ||||
| 90189-04001 | ||||
| 90201-08267 | ||||
| 90461-06303 | ||||
| 90468-05010 | ||||
| 90541-04005 | ||||
| 90950-01038 | ||||
| 90950-01197 | ||||
| 90950-01219 | ||||
| 91611-40820 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
| 91652-40614 | ||||
| 93240-56020 | ||||
| 93249-54008 | ||||
| 93249-55012 | ||||
| 93510-54012 | ||||
| 93540-45012 | ||||
| 93540-54020 | ||||
| 93540-55014 | ||||
| 93540-55016 | ||||

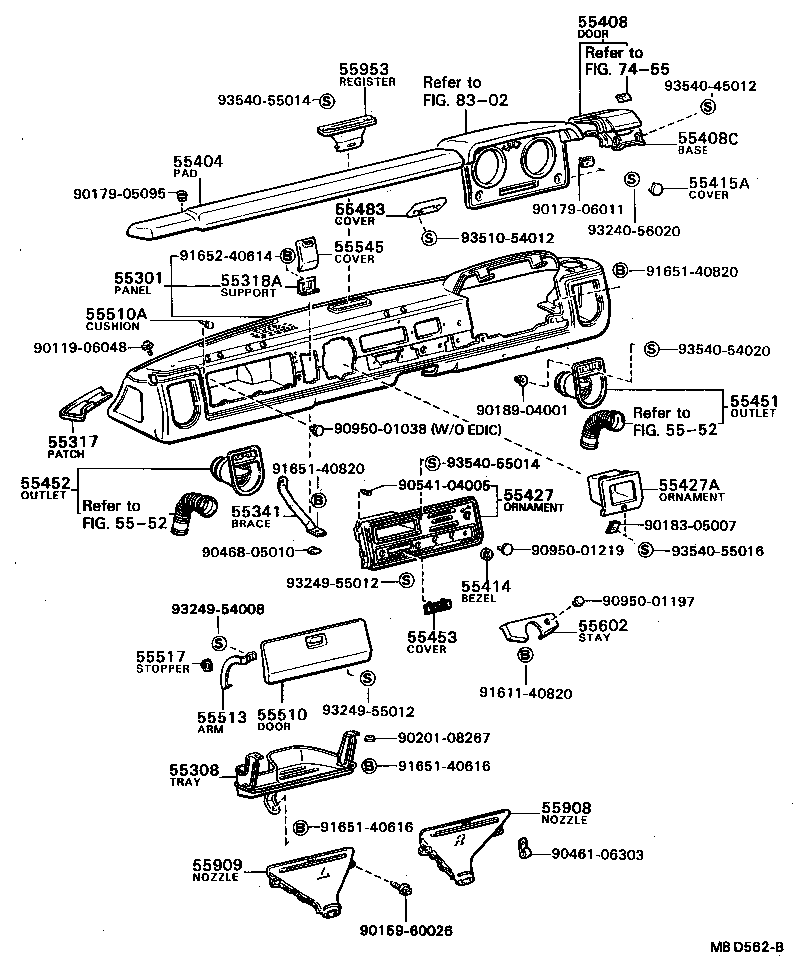

| Linked diagrams | ||||
| 5552 | ||||
| 7455 | ||||
| 8302 | ||||
