HU40R-MRDTQ3 (1983)

Toyota Dyna

Production Feb 1983 - Aug 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8408)2H..HU40..ARL

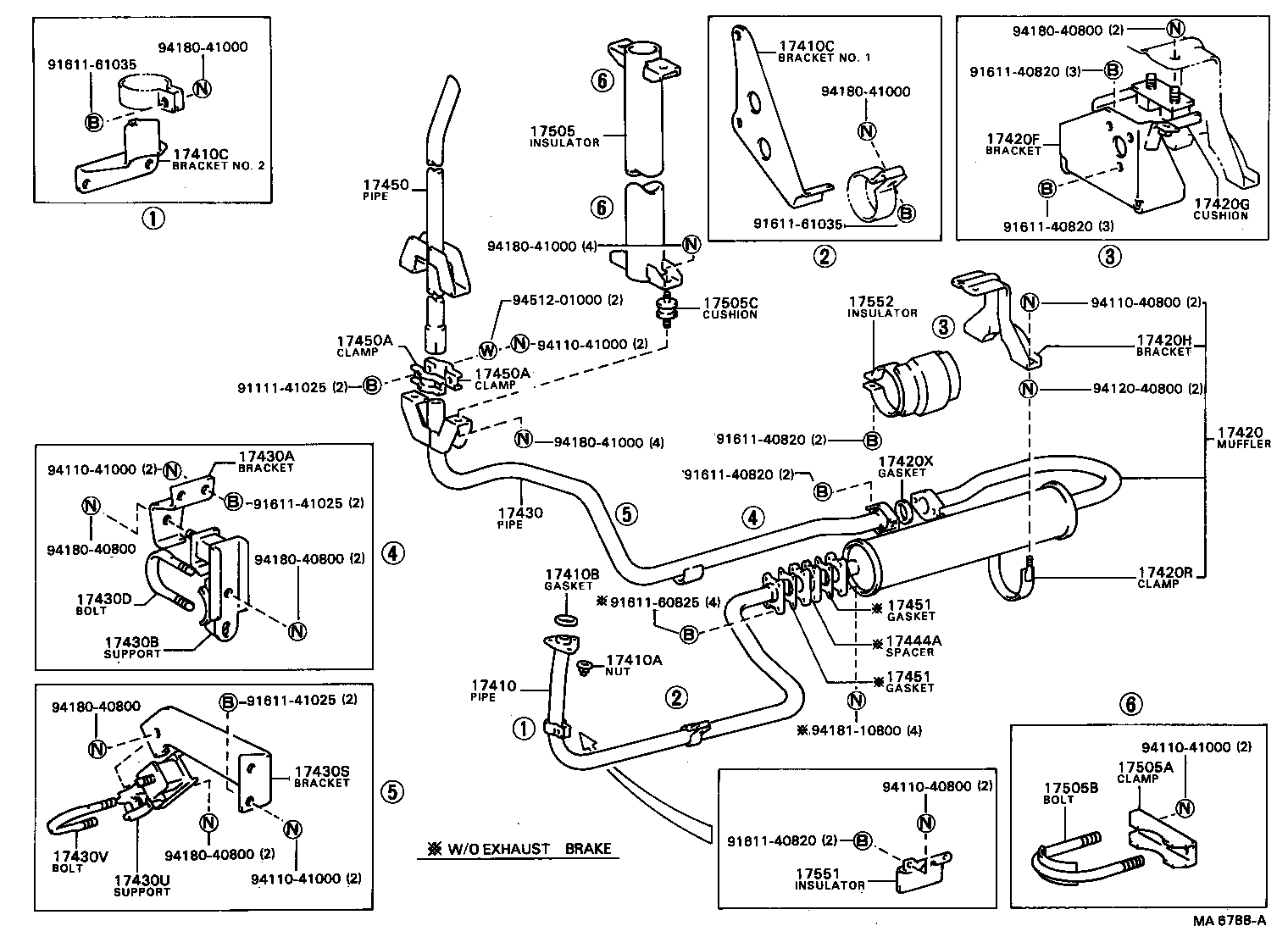

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410C 17420 17420F 17420G 17420H 17420R 17420X 17430 17430A 17430B 17430D 17430S 17430U 17430V 17444A 17450 17450A 17450A 17451 17451 17505 17505A 17505B 17505C 17551 17552 9111141025 9161140820 9161140820 9161140820 9161140820 9161140820 9161141025 9161141025 9161160825 9161161035 9161161035 9411040800 9411040800 9411041000 9411041000 9411041000 9411041000 9412040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000 9418041000 9418041000 9418041000 9418110800 9451201000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-47040

2H..HU40..ARL

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-47050

2H..HU40..ARL

 1
17420-47060

2H..HU40..ARL

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17572-58010

3B,2H..BU36,HU40..ARL

 1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17562-56010

3B,2H..BU36,HU40..ARL

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56020

3B,2H..BU36,HU40..ARL

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56010

3B,2H..BU36,HU40..ARL

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-58030

3B,2H..BU36,HU40..ARL

 1
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-47010

H,3B,2H..BU32,36,HU30,40,50..ARL

 4
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-47010

H,3B,2H..BU32,36,HU30,40,50..ARL

 4
17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505-77010

H,3B,2H..BU32,HU30,40,50..ARL

 1
17505A - CLAMP, EXHAUST PIPE(FOR HEAT INSULATOR)
90917-04029

H,3B,2H..BU32,36,HU30,40,50..ARL

EXHAUST PIPE,NO.5

 2
17505B - BOLT, U(FOR HEAT INSULATOR CLAMP)
90117-10004

H,3B,2H..BU32,36,HU30,40,50..ARL

 2
17505C - CUSHION, EXHAUST PIPE(FOR HEAT INSULATOR)
90917-08011

H,3B,2H..BU32,36,HU30,40,50..ARL

 4
17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2
17551-58010

2H..HU40..ARL

 1
Common parts
91111-41025
91611-40820
91611-41025
91611-60825
91611-61035
94110-40800
94110-41000
94120-40800
94180-40800
94180-41000
94181-10800
94512-01000
