BU86R-MDPDT (1985)
Toyota Dyna
Production
Oct 1985
-
Aug 1987
Engine
11B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8510- )BU85,86..TW1

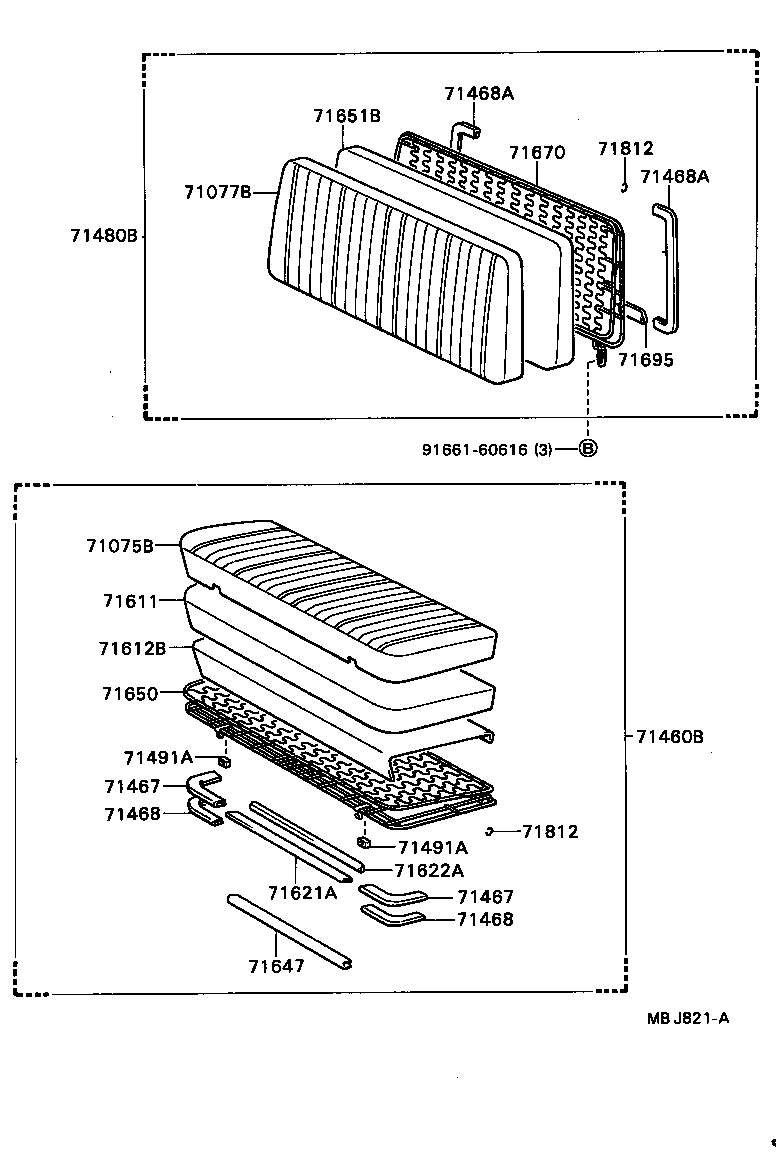

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-9260803 |
BU86 VL,GRAY,SHADOW GRAY |
1 | ||
| 71075-9261103 |
BU86 VL,GRAY,SHADOW GRAY |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-9261503 |
BU86 VL,GRAY,SHADOW GRAY |
1 | ||
| 71077-9263103 |
BU86 VL,GRAY,SHADOW GRAY |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-9263203 |
BU86 VL,GRAY,SHADOW GRAY |
1 | ||
| 71460-9264003 |
BU86 VL,GRAY,SHADOW GRAY |
1 | ||
| 71467 - PAD, CORNER | ||||
| 71467-95400 |
BU60,85,86..TW1 |
2 | ||
| 71467 - PAD, CORNER | ||||
| 71467-95400 |
BU60,85,86..TW1 |
2 | ||
| 71468A - PROTECTOR, REAR SEAT, NO.1 (FOR SEAT BACK) | ||||
| 71468-95400 |
BU60,85,86..TW1 |
2 | ||
| 71468A - PROTECTOR, REAR SEAT, NO.1 (FOR SEAT BACK) | ||||
| 71468-95400 |
BU60,85,86..TW1 |
2 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-9261803 |
BU86 VL,GRAY,SHADOW GRAY |
1 | ||
| 71480-9262803 |
BU86 VL,GRAY,SHADOW GRAY |
1 | ||
| 71491A - CUSHION, REAR SEAT SET | ||||
| 71491-95A00 |
BU60,85,86..TW1 |
2 | ||
| 71491A - CUSHION, REAR SEAT SET | ||||
| 71491-95A00 |
BU60,85,86..TW1 |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-92601 |
BU85,86..TW1 |
1 | ||
| 71612B - PAD, REAR SEAT CUSHION, B | ||||
| 71612-92600 |
BU85,86..TW1 |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-92601 |
BU85,86..TW1 |
1 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-92600 |
BU85,86..TW1 |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-92600 |
BU85,86..TW1 |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-92602 |
BU85,86..TW1 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-92601 |
BU85,86..TW1 |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-92602 |
BU85,86..TW1 |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-92600 |
BU85,86..TW1 L=670 |
2 | ||
| 71697-92601 |
BU85,86..TW1 L=570 |
1 | ||
| 71697-92600 |
BU85,86..TW1 L=1520 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BU6#,7#,8# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BU6#,7#,8# |
1 | ||
| Common parts | ||||
| 91661-60616 | ||||
