BU85R-MDDHTQ3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

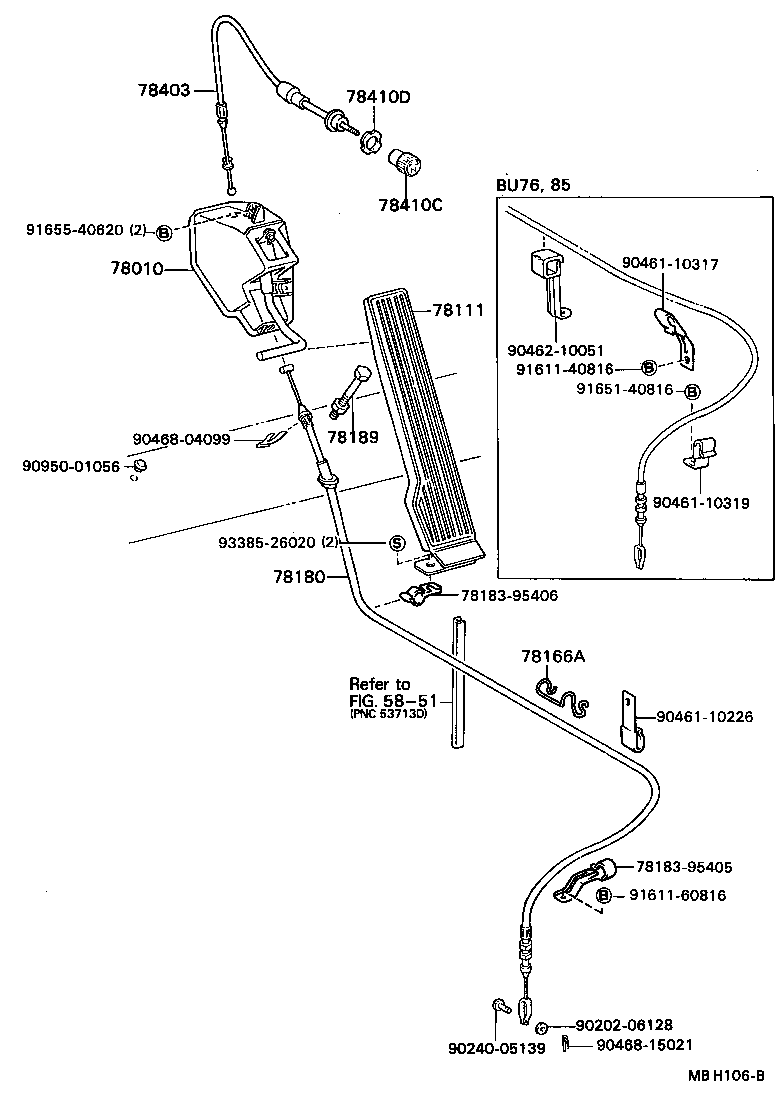

(8409- )BU61,65,76,81,82,85,86..RHD

Click highlighted areas on diagram

diagram 5851 78010 78111 78166A 78180 7818395405 7818395406 78189 78403 78410C 78410D 9020206128 9024005139 9046110226 9046110317 9046110319 9046210051 9046804099 9046815021 9095001056 9161140816 9161160816 9165140816 9165540620 9338526020
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95402

BU75,76,85,86..RHD

 1
78111 - PEDAL, ACCELERATOR
78110-95410

BU6#,75,76,8#..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95467

BU76,85,86..RHD

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95400

BU6#,75,76,8#..RHD

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78404-95011

BU6#,75,76,8#..RHD

 1
78404-95400

BU60,61,63,75,76,8#..RHD

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

BU6#,7#,8#

 1
78410D - NUT, THROTTLE
78314-95010

BU6#,7#,8#

 1
78413-95J00

BU6#,7#,8#

 1
Common parts
78183-95405
78183-95406
90202-06128
90240-05139
90461-10226
90461-10317
90461-10319
90462-10051
90468-04099
90468-15021
90950-01056
91611-40816
91611-60816
91651-40816
91655-40620
93385-26020
Linked diagrams
5851

(8409- )YU60,62,8#..RHD

Click highlighted areas on diagram

diagram 78010 78111 78180 7818395406 78184B 78189 78302 78310 78310A 78310B 78310F 78403 78410C 78410D 8271112200 9046110226 9046210051 9046804099 9095001056 9098901082 9161160816 9161160816 9165140620 9165140816 9338526020 9411040800
Part # Description Qty Price
Common parts
78183-95406
82711-12200
90461-10226
90462-10051
90468-04099
90950-01056
90989-01082
91611-60816
91651-40620
91651-40816
93385-26020
94110-40800

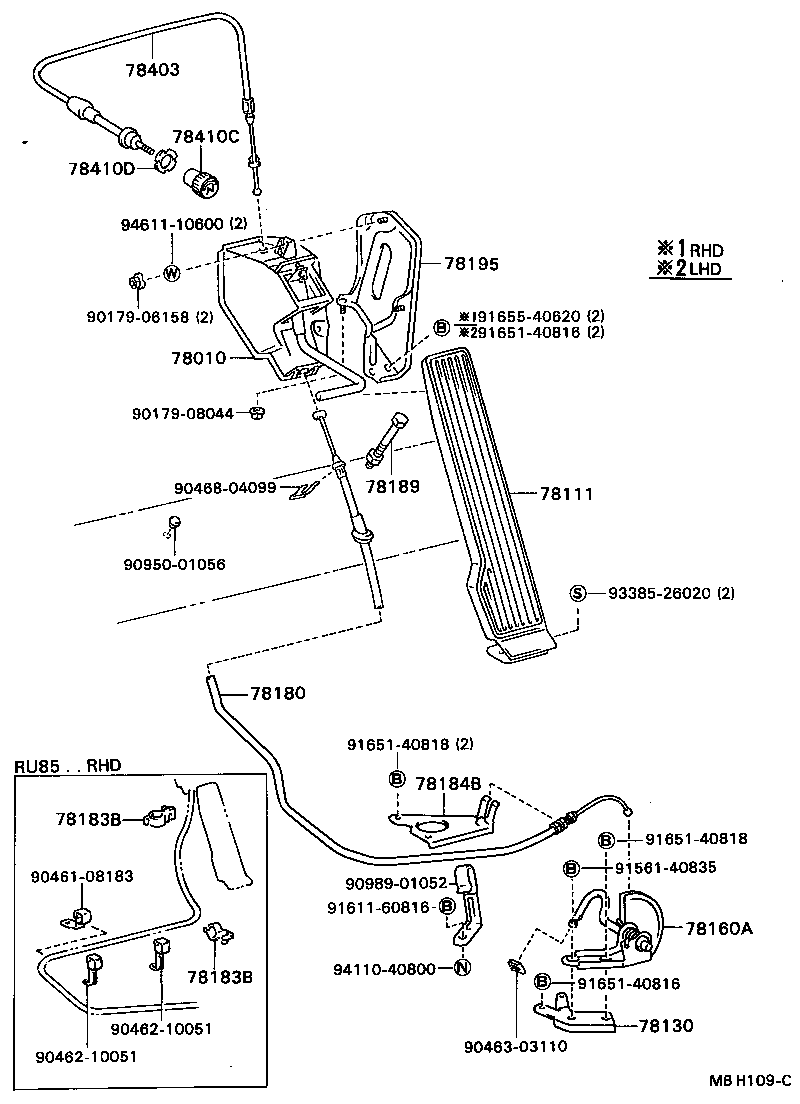

(8409- )RU75,85

Click highlighted areas on diagram

diagram 78010 78111 78130 78160A 78180 78183B 78183B 78184B 78189 78195 78403 78410C 78410D 9017906158 9017908044 9046108183 9046210051 9046210051 9046303110 9046804099 9095001056 9098901052 9156140835 9161160816 9165140816 9165140816 9165140818 9165140818 9165540620 9338526020 9411040800 9461110600
Part # Description Qty Price
Common parts
90179-06158
90179-08044
90461-08183
90462-10051
90463-03110
90468-04099
90950-01056
90989-01052
91561-40835
91611-60816
91651-40816
91651-40818
91655-40620
93385-26020
94110-40800
94611-10600
