BU85R-MDDHTQ3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU85

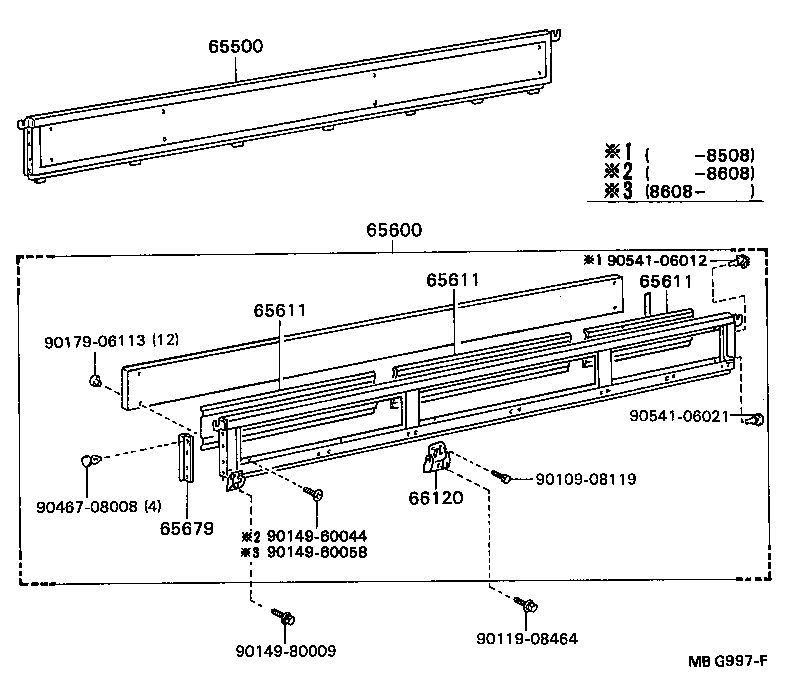

Click highlighted areas on diagram

diagram 65500 65600 65611 65611 65611 65679 66120 9010908119 9011908464 9014960044 9014960058 9014980009 9017906113 9046708008 9054106012 9054106021
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-92808

BU85

 1
65500-92824

BU85

 1
65500-92838

BU85

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-92808

BU85

 1
65600-92824

BU85

 1
65600-92838

BU85

 1
65611 - PANEL, SIDE GATE
65621-92802

BU85

L=1319

 6
65621-92822

BU85

L=1324(LH-FR,RH-RR)

 2
65621-92823

BU85

L=1303

 2
65621-92824

BU85

L=1324(RH-FR,LH-RR)

 2
65611 - PANEL, SIDE GATE
65621-92802

BU85

L=1319

 6
65621-92822

BU85

L=1324(LH-FR,RH-RR)

 2
65621-92823

BU85

L=1303

 2
65621-92824

BU85

L=1324(RH-FR,LH-RR)

 2
65611 - PANEL, SIDE GATE
65621-92802

BU85

L=1319

 6
65621-92822

BU85

L=1324(LH-FR,RH-RR)

 2
65621-92823

BU85

L=1303

 2
65621-92824

BU85

L=1324(RH-FR,LH-RR)

 2
65679 - DRIP, SIDE GATE
65679-92701

BU60,75,76,80,81,85,86..TB

 2
65679-92706

BU60,75,76,80,81,85,86..TB

 2
66120 - HINGE ASSY, SIDE GATE
65010-92701

BU80,81,85

RH 2ND,3RD,4TH,5TH,6TH

 5
65050-92702

BU80,81,85

RH 1ST,7TH

 2
65060-92702

BU80,81,85

LH 1ST,7TH

 2
65020-92701

BU80,81,85

LH 2ND,3RD,4TH,5TH,6TH

 5
65020-92700

BU80,81,85

LH 2ND,3RD,4TH,5TH,6TH

 5
65010-92702

BU80,81,85

RH 2ND,3RD,4TH,5TH,6TH

 5
65050-92704

BU80,81,85

RH 1ST,7TH

 2
65060-92703

BU80,81,85

LH 1ST,7TH

 2
Common parts
90109-08119
90119-08464
90149-60044
90149-60058
90149-80009
90179-06113
90467-08008
90541-06012
90541-06021
