BU85R-MDDHTQ3 (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
13B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

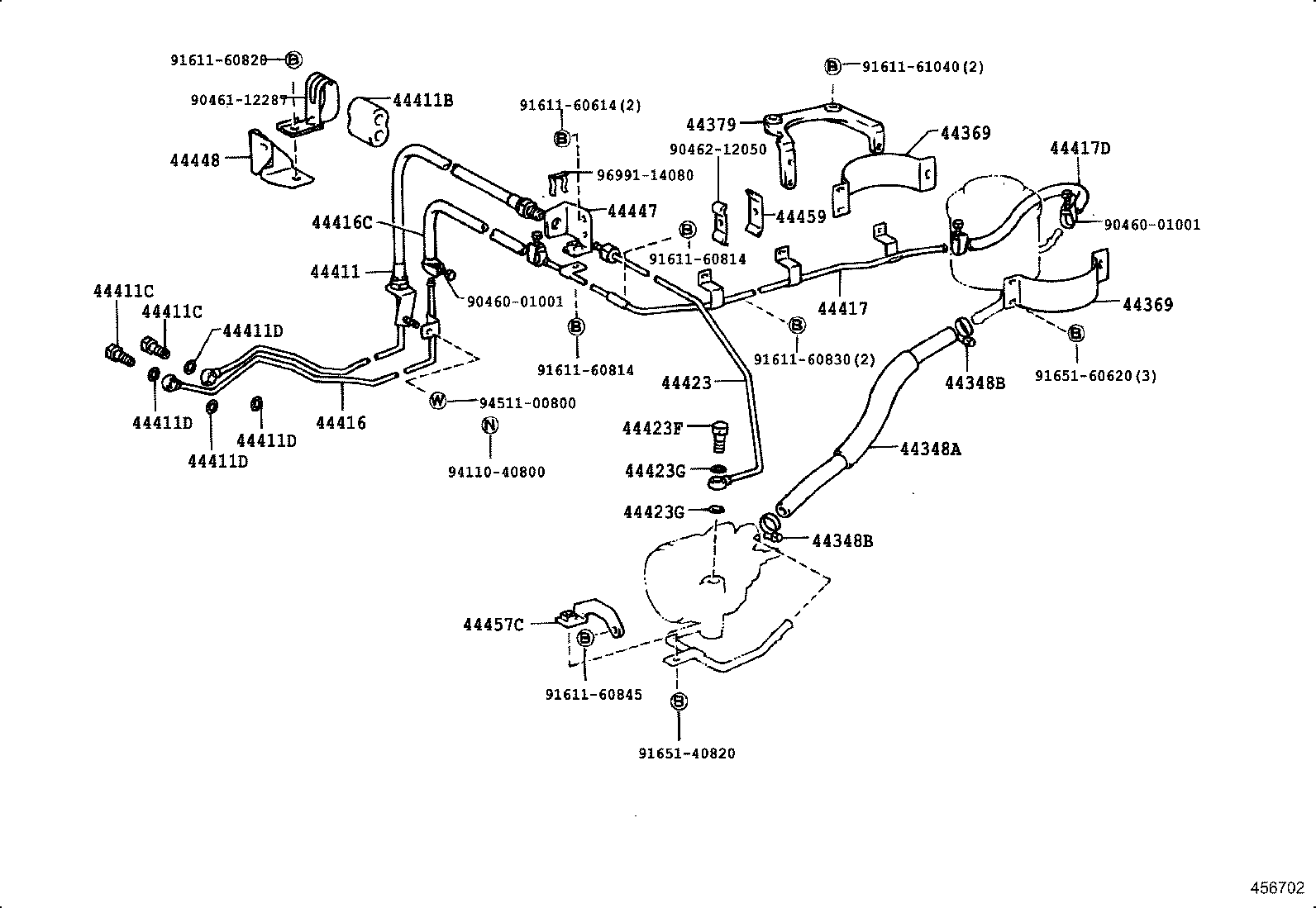

(8409- )BU76,85,86..RHD..CBU,IV3
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36090 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
BU76,85,86..CBU,IV3 |
2 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
BU76,85,86..CBU,IV3 |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU76,85,86..CBU,IV3 |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU76,85,86..CBU,IV3 |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-36080 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36110 |
BU76,85,86..RHD..(CBU,IV3) |
1 | ||
| 44411B - CUSHION(FOR PRESSURE FEED HOSE) | ||||
| 90540-18002 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-14003 |
BU76,85,86..CBU,IV3 |
2 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-14003 |
BU76,85,86..CBU,IV3 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU76,85,86..CBU,IV3 |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU76,85,86..CBU,IV3 |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU76,85,86..CBU,IV3 |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU76,85,86..CBU,IV3 |
4 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-36090 |
BU76,85,86..RHD..(CBU,IV3) |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18130 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44417 - TUBE, RETURN, NO.2 | ||||
| 44417-36090 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44417D - HOSE(FOR RETURN TUBE TO RESERVOIR) | ||||
| 90445-18132 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-36110 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-16004 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16168 |
BU76,85,86..CBU,IV3 |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16168 |
BU76,85,86..CBU,IV3 |
2 | ||
| 44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT | ||||
| 44447-36100 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44448 - BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1 | ||||
| 44447-36090 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-36060 |
BU76,85,86..CBU,IV3 |
1 | ||
| 44459 - BRACKET, TUBE SUPPORT, NO.3 | ||||
| 44459-36080 |
BU76,85,86..CBU,IV3 |
1 | ||
| Common parts | ||||
| 90460-01001 | ||||
| 90461-12287 | ||||
| 90462-12050 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91611-60830 | ||||
| 91611-60845 | ||||
| 91611-61040 | ||||
| 91651-40820 | ||||
| 91651-60620 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 96991-14080 | ||||
(8508- )YU60,62,8#..RHD..ARL,GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10092 | ||||
| 90179-08146 | ||||
| 90460-01001 | ||||
| 90461-10633 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-61025 | ||||
| 91651-40820 | ||||
| 91651-61035 | ||||
| 96991-14080 | ||||
| Linked diagrams | ||||
| 1605 | ||||
