BU85R-MDDHTQ3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )B,11B,13B..BU75,76,85..T3

Click highlighted areas on diagram

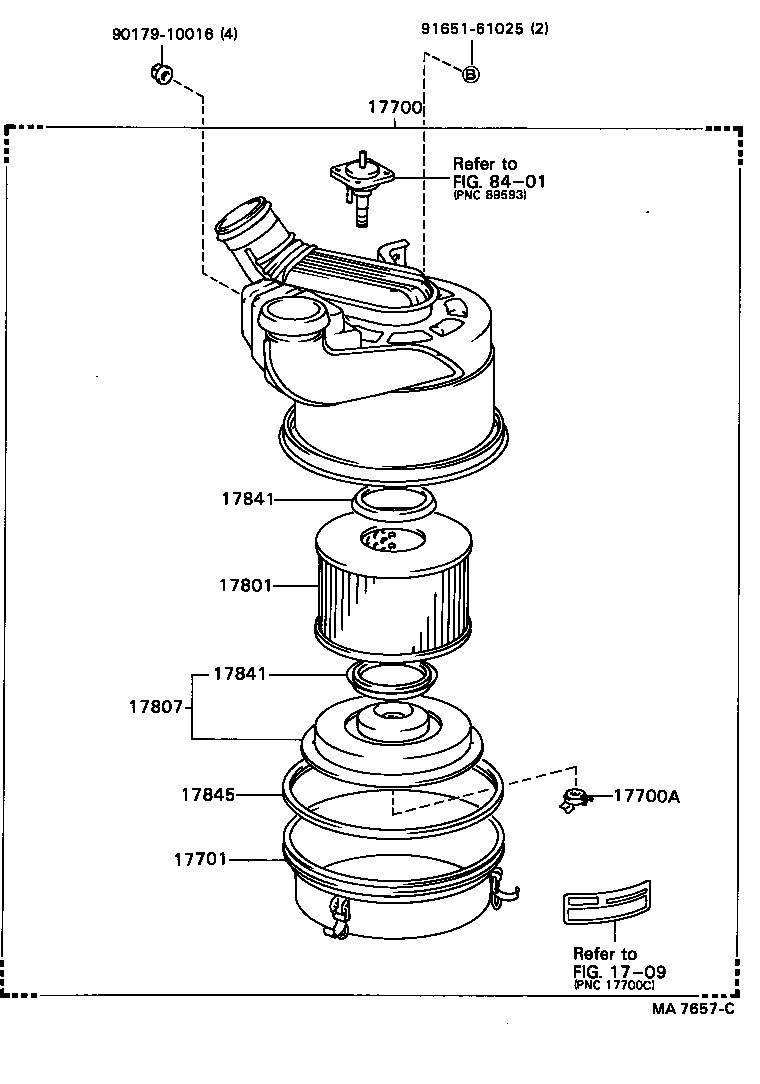

diagram 1709 17700 17700A 17701 17801 17807 17841 17841 17845 8401 9017910016 9165161025
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-58110

B,13B..BU75,85..T3..(ARL,EUR)

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

B,11B,13B..BU62,75,76,82,85,86..CBU,IV3

SCHNORKEL TYPE

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-58040

B,11B,13B..BU75,76,85,86..CBU,IV3

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-68020

B,11B,13B..BU75,76,85,86..CBU,IV3

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-68010

B,11B,13B..BU75,76,85,86..CBU,IV3

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

B,11B,13B..BU75,76,85,86..CBU,IV3

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

B,11B,13B..BU75,76,85,86..CBU,IV3

 2
17845 - GASKET, AIR CLEANER CAP
17845-68020

B,11B,13B..BU75,76,85,86..CBU,IV3

 1
Common parts
90179-10016
91651-61025
Linked diagrams
1709
8401

(8409- )B,11B,13B..BU75,76,85..T3

Click highlighted areas on diagram

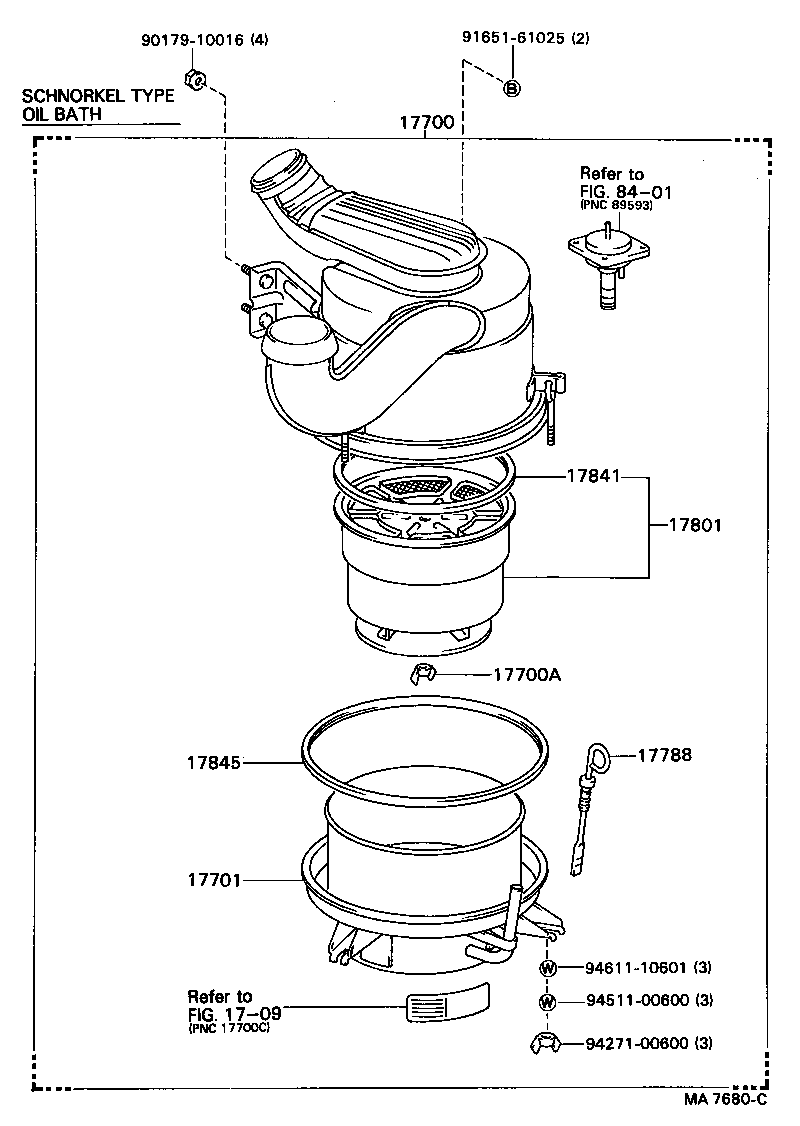

diagram 1709 17700 17700A 17701 17788 17801 17841 17845 8401 9017910016 9165161025 9427100600 9451100600 9461110601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-58110

B,13B..BU75,85..T3..(ARL,EUR)

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

B,11B,13B..BU62,75,76,82,85,86..CBU,IV3

SCHNORKEL TYPE

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-58040

B,11B,13B..BU75,76,85,86..CBU,IV3

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-68020

B,11B,13B..BU75,76,85,86..CBU,IV3

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

B,11B,13B..BU75,76,85,86..CBU,IV3

 2
17845 - GASKET, AIR CLEANER CAP
17845-68020

B,11B,13B..BU75,76,85,86..CBU,IV3

 1
Common parts
90179-10016
91651-61025
94271-00600
94511-00600
94611-10601
Linked diagrams
1709
8401

(8409- )B,11B,13B..BU75,76,85..T3

Click highlighted areas on diagram

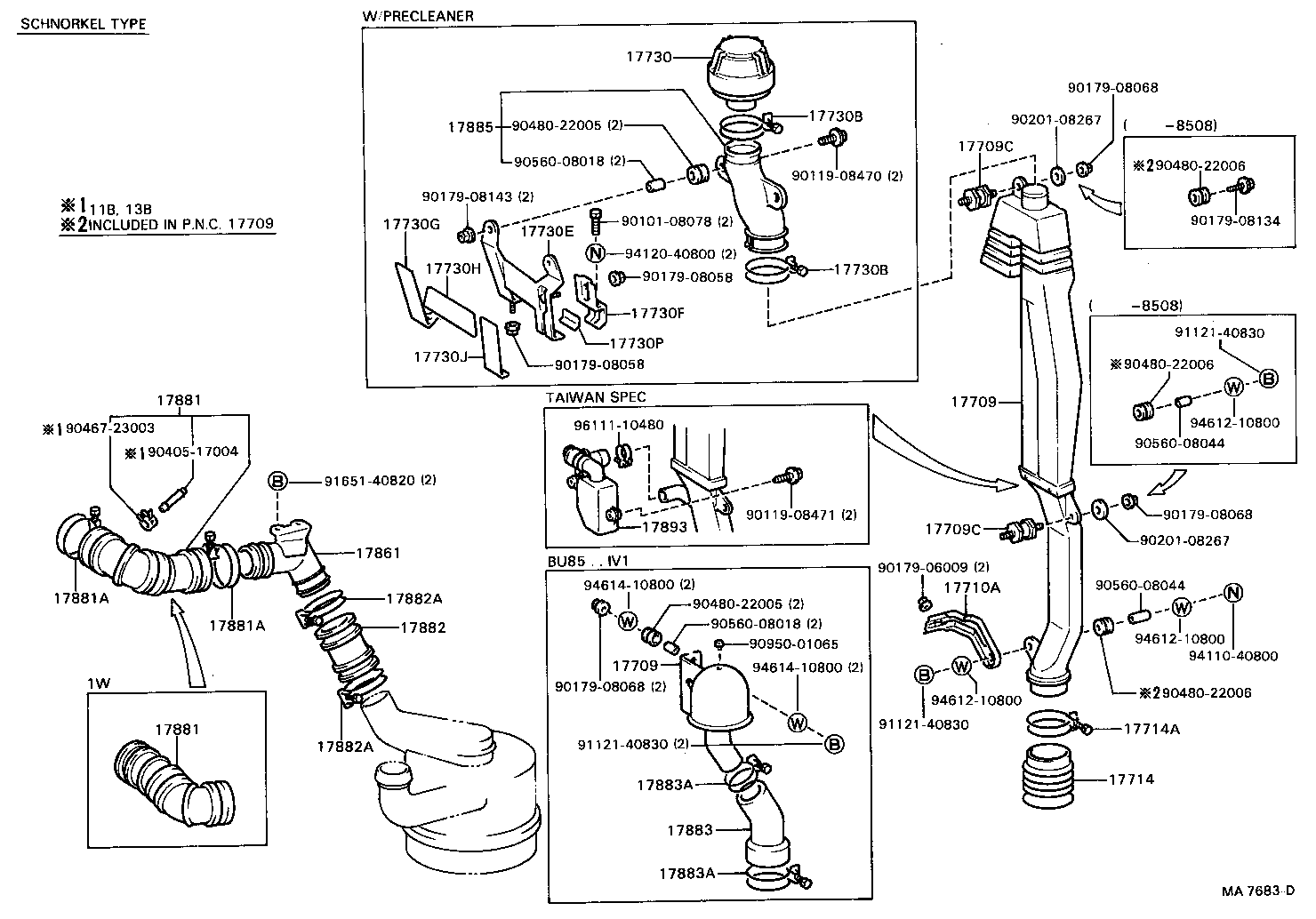

diagram 17709 17709 17709C 17709C 17710A 17714 17714A 17730 17730B 17730B 17730E 17730F 17730G 17730H 17730J 17730P 17861 17881 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 17883A 17885 17893 9010108078 9011908470 9011908471 9017906009 9017908058 9017908058 9017908068 9017908068 9017908068 9017908134 9017908143 9020108267 9020108267 9040517004 9046723003 9048022005 9048022005 9048022006 9048022006 9048022006 9056008018 9056008018 9056008044 9056008044 9095001065 9112140830 9112140830 9112140830 9165140820 9411040800 9412040800 9461210800 9461210800 9461210800 9461410800 9461410800 9611110480
Part # Description Qty Price
17709 - INLET SUB-ASSY, AIR CLEANER
53097-95404

B,11B,13B..BU75,76,85..CBU,IV3

 1
53097-95409

B,11B,13B..BU75,76,85..T3..(CBU,IV3)

 1
17709 - INLET SUB-ASSY, AIR CLEANER
53097-95404

B,11B,13B..BU75,76,85..CBU,IV3

 1
53097-95409

B,11B,13B..BU75,76,85..T3..(CBU,IV3)

 1
17709C - CUSHION, AIR CLEANER INLET
53955-95402

B,11B,13B..BU75,76,85..T3..(CBU,IV3)

 2
17709C - CUSHION, AIR CLEANER INLET
53955-95402

B,11B,13B..BU75,76,85..T3..(CBU,IV3)

 2
17710A - BRACKET SUB-ASSY, AIR CLEANER INLET DUCT
53773-95401

B,11B,13B..BU75,76,85..T3..(CBU,IV3)

 1
17714 - RUBBER SEAL, AIR INTAKE
53299-95400

B,11B,13B..BU75,76,85..T3..(CBU,IV3)

 1
17714A - CLAMP(FOR AIR INTAKE RUBBER SEAL)
96111-10880

B,11B,13B..BU75,76,85..T3..(CBU,IV3)

 1
17861 - CONNECTOR, INTAKE AIR
17886-58030

11B,13B..BU76,85

 1
17886-58010

B,11B,13B..BU75,76,85,86

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-58020

11B,13B..BU76,85,86

 1
17880-58021

11B,13B..BU76,85,86

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-58020

11B,13B..BU76,85,86

 1
17880-58021

11B,13B..BU76,85,86

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10930

B,11B,13B..BU75,76,85,86

CONNECTOR SIDE

 1
96111-10800

11B,13B..BU61,62,65,76,81,82,85,86

SCHNORKEL,ENGINE SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10930

B,11B,13B..BU75,76,85,86

CONNECTOR SIDE

 1
96111-10800

11B,13B..BU61,62,65,76,81,82,85,86

SCHNORKEL,ENGINE SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17883-58010

B,11B,13B..BU75,76,85,86

 1
17883-58030

11B,13B..BU76,85,86

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

11B,13B..BU76,85,86

 2
96111-10930

B,11B,13B..BU75,76,85,86

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

11B,13B..BU76,85,86

 2
96111-10930

B,11B,13B..BU75,76,85,86

 2
Common parts
90101-08078
90119-08470
90119-08471
90179-06009
90179-08058
90179-08068
90179-08134
90179-08143
90201-08267
90405-17004
90467-23003
90480-22005
90480-22006
90560-08018
90560-08044
90950-01065
91121-40830
91651-40820
94110-40800
94120-40800
94612-10800
94614-10800
96111-10480
