BU85R-MDDHTQ3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )13B..BU85..ARL

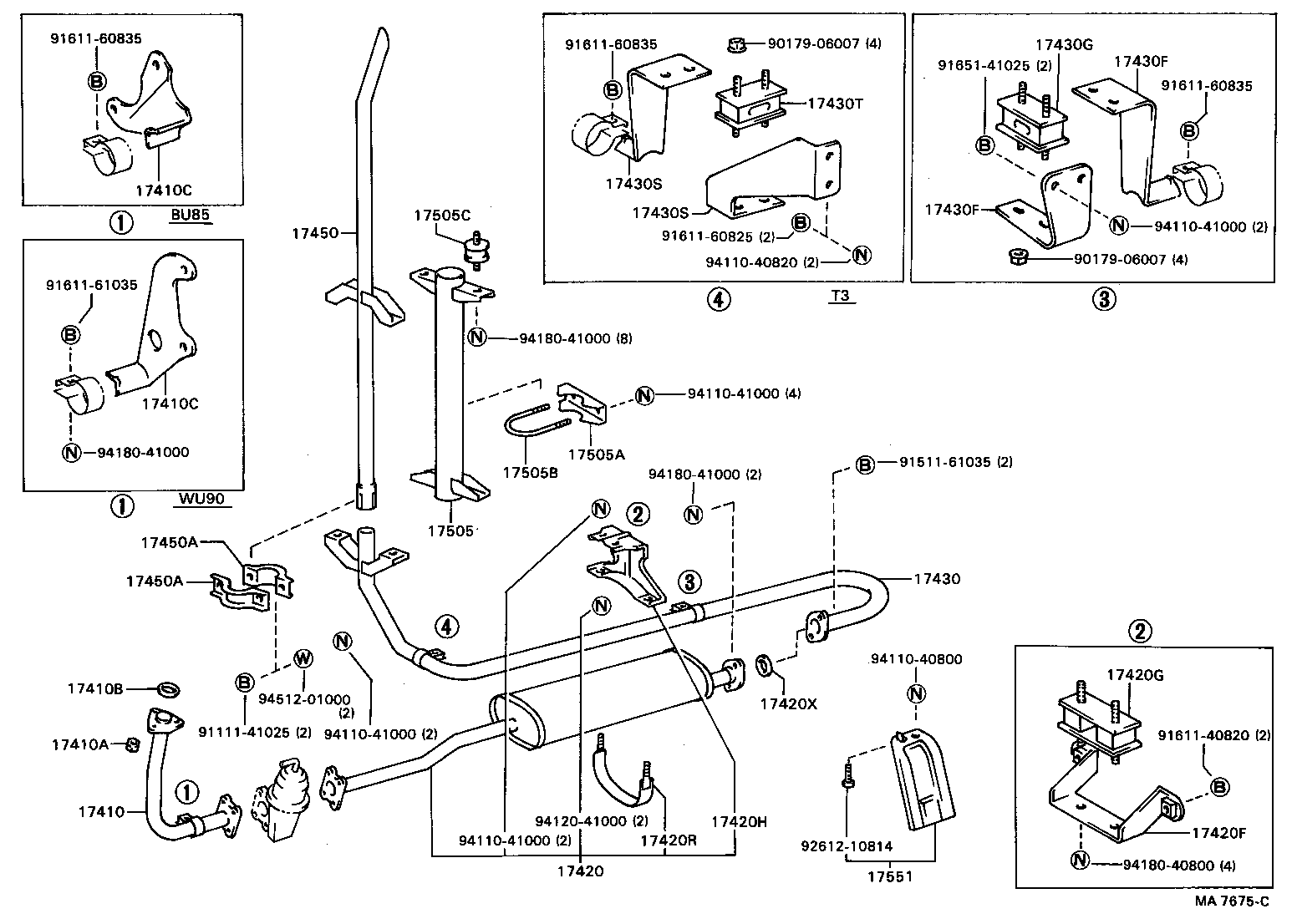

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410C 17420 17420F 17420G 17420H 17420R 17420X 17430 17430F 17430F 17430G 17430S 17430S 17430T 17450 17450A 17450A 17505 17505A 17505B 17505C 17551 9017906007 9017906007 9111141025 9151161035 9161140820 9161160825 9161160835 9161160835 9161160835 9161161035 9165141025 9261210814 9411040800 9411040820 9411041000 9411041000 9411041000 9411041000 9412041000 9418040800 9418041000 9418041000 9418041000 9451201000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58010

13B..BU85..ARL

W/EXHAUST BRAKE

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B,11B,13B..BU6#,7#,8#

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

B,11B,13B..BU6#,7#,8#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58050

B,11B..BU75,76;13B..BU85..ARL

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58050

B,11B..BU75,76;13B..BU85..ARL

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56150

13B..BU85..ARL

 1
17420-56151

13B..BU85..ARL

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58070

13B..BU85..ARL

 1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010

B,11B,13B..BU75,76,85,86

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040

B,11B,13B..BU75,76,85,86

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020

B,11B,13B..BU75,76,85,86

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012

B,11B,13B..BU75,76,85

 2
90917-06008

11B,13B..BU85,86

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-58160

13B..BU85..ARL

 1
17430-58161

13B..BU85..T3..ARL

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17561-56010

13B..BU85..ARL

PIPE SIDE

 1
17574-58100

13B..BU85..ARL

BODY SIDE

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17561-56010

13B..BU85..ARL

PIPE SIDE

 1
17574-58100

13B..BU85..ARL

BODY SIDE

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-61030

13B..BU85..ARL

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

13B..BU85..T3..ARL

PIPE SIDE

 1
17574-58090

13B..BU85..T3..ARL

BODY SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

13B..BU85..T3..ARL

PIPE SIDE

 1
17574-58090

13B..BU85..T3..ARL

BODY SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

B,11B,13B..BU6#,7#,8#

 1
17567-61030

13B..BU85..T3

 1
17450 - PIPE ASSY, EXHAUST, NO.5
17450-58030

13B..BU85..ARL

 1
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-47010

13B..BU85..ARL

 2
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-47010

13B..BU85..ARL

 2
17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505-77010

13B..BU85..ARL

 1
17505A - CLAMP, EXHAUST PIPE(FOR HEAT INSULATOR)
90917-04029

13B..BU85..ARL

 2
17505B - BOLT, U(FOR HEAT INSULATOR CLAMP)
90117-10004

13B..BU85..ARL

 2
17505C - CUSHION, EXHAUST PIPE(FOR HEAT INSULATOR)
90917-08011

13B..BU85..ARL

 4
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-58020

13B..BU85..ARL

 1
Common parts
90179-06007
91111-41025
91511-61035
91611-40820
91611-60825
91611-60835
91611-61035
91651-41025
92612-10814
94110-40800
94110-40820
94110-41000
94120-41000
94180-40800
94180-41000
94512-01000
