BU85R-MDDHT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU6#,75,76,8#

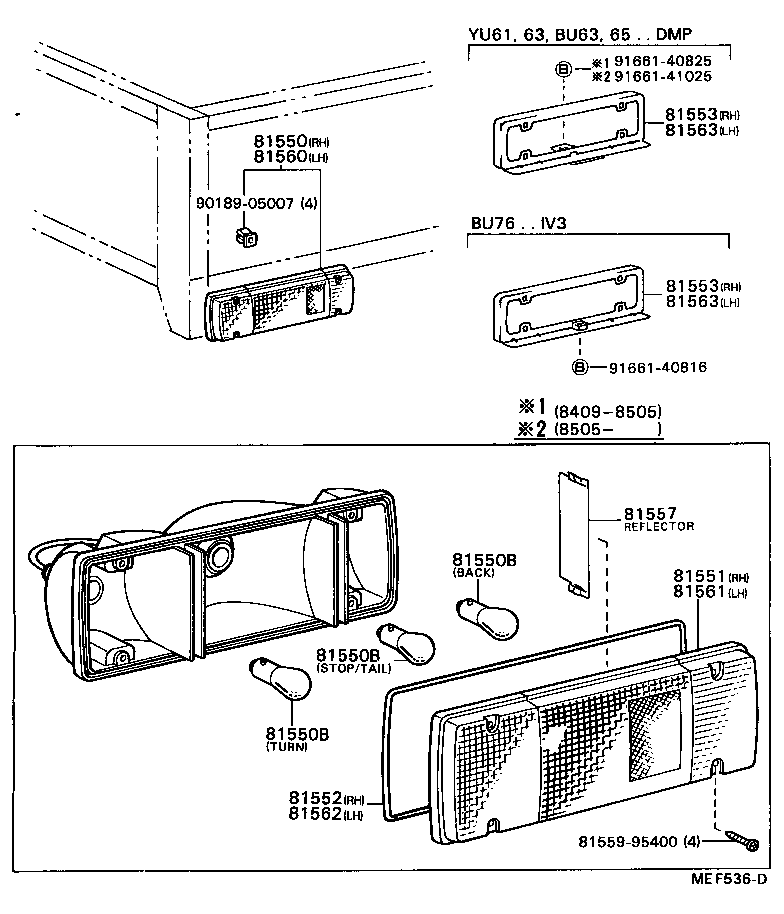

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81552 81553 81553 81557 8155995400 81560 81561 81562 81563 81563 9018905007 9166140816 9166140825 9166141025
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-39465

BU65..CBU;BU60,61,62,63,75,76,8#..ARL,GEN,GHD

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95400

BU6#,75,76,8#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95400

BU6#,7#,8#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-39435

BU65..CBU;BU60,61,62,63,75,76,8#..ARL,GEN,GHD

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95400

BU6#,75,76,8#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-95400

BU6#,7#,8#

 1
Common parts
81559-95400
90189-05007
91661-40816
91661-40825
91661-41025

(8409- )RU75,85,WU9#,YU6#,8#

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81552 81553 81553 81557 8155995400 81560 81561 81562 81563 81563 9018905007 9166140816 9166140825 9166141025
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-39465

BU65..CBU;BU60,61,62,63,75,76,8#..ARL,GEN,GHD

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95400

BU6#,75,76,8#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95400

BU6#,7#,8#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-39435

BU65..CBU;BU60,61,62,63,75,76,8#..ARL,GEN,GHD

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95400

BU6#,75,76,8#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-95400

BU6#,7#,8#

 1
Common parts
81559-95400
90189-05007
91661-40816
91661-40825
91661-41025
