BU85R-MDDHT3 (1984)
Toyota Dyna

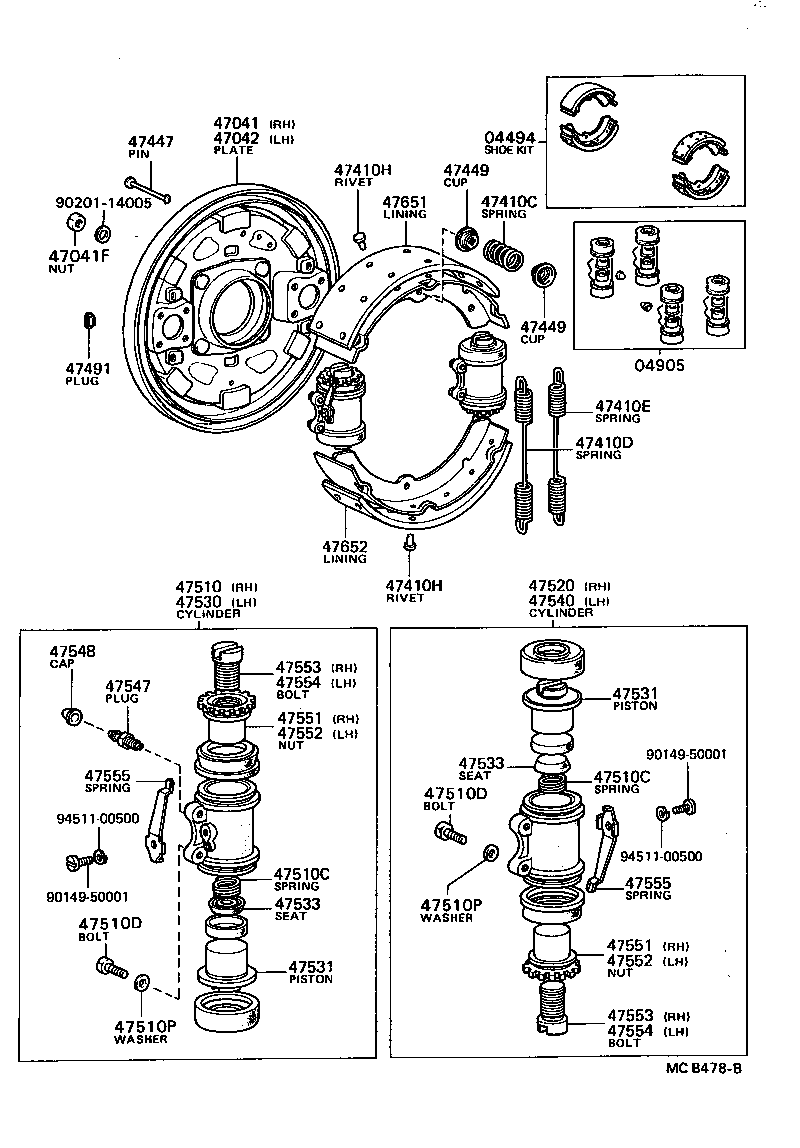

(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
BU6#,7#,8# |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU6#,7#,8# |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36030 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8# |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8# |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BU6#,7#,8# |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU6#,7#,8# |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU6#,7#,8# |
4 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BU6#,7#,8# |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BU6#,7#,8# |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BU6#,7#,8# |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BU6#,7#,8# |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BU6#,7#,8#..5F T=0.8 |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BU6#,7#,8#..5F T=0.8 |
4 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-36120 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-36120 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| Common parts | ||||
| 90149-50001 | ||||
| 90201-14005 | ||||
| 94511-00500 | ||||

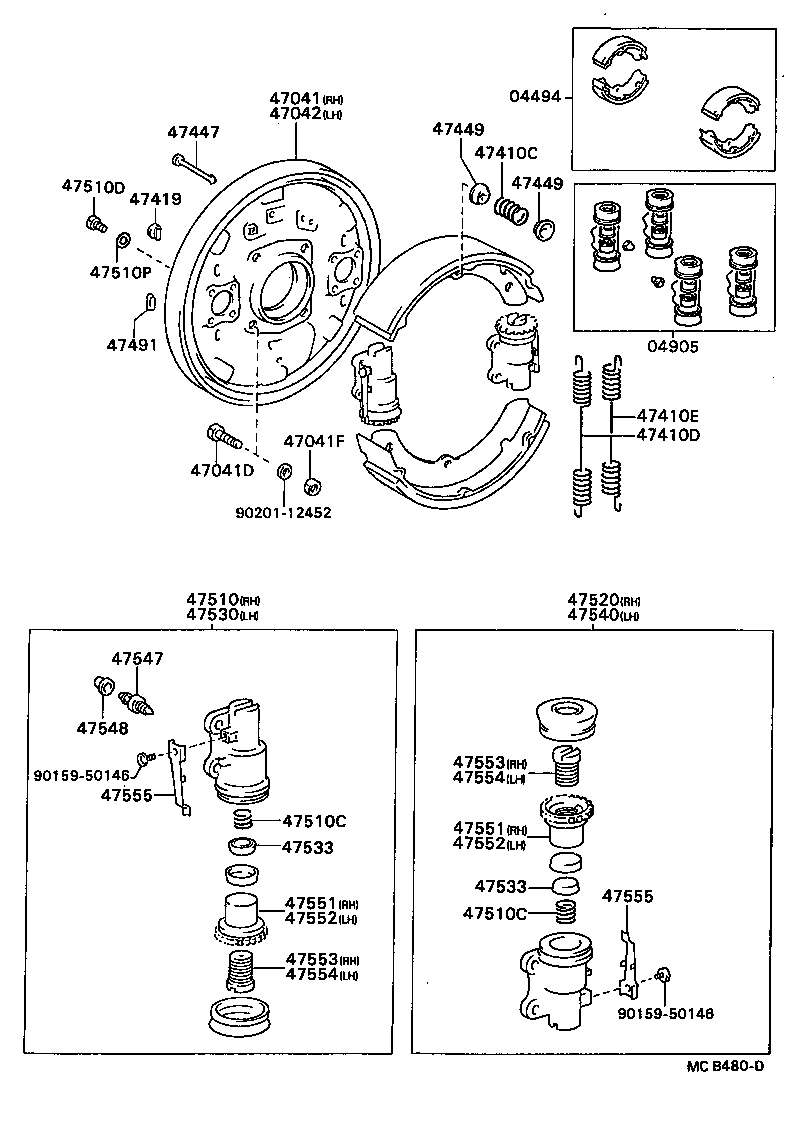

(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12113 |
BU6#,7#,8# |
8 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
BU6#,7#,8# |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU6#,7#,8# |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| 47419 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47419-35011 |
BU6#,7#,8#..5F |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36030 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8# |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8# |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BU6#,7#,8# |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU6#,7#,8# |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU6#,7#,8# |
4 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BU6#,7#,8# |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BU6#,7#,8# |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BU6#,7#,8# |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BU6#,7#,8# |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BU6#,7#,8#..5F T=0.8 |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BU6#,7#,8#..5F T=0.8 |
4 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-12452 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
BU6#,7#,8# |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU6#,7#,8# |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36030 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8# |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8# |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BU6#,7#,8# |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU6#,7#,8# |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU6#,7#,8# |
4 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BU6#,7#,8# |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BU6#,7#,8# |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BU6#,7#,8# |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BU6#,7#,8# |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BU6#,7#,8#..5F T=0.8 |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BU6#,7#,8#..5F T=0.8 |
4 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-36120 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-36120 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| Common parts | ||||
| 90149-50001 | ||||
| 90201-14005 | ||||
| 94511-00500 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12113 |
BU6#,7#,8# |
8 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
BU6#,7#,8# |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU6#,7#,8# |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| 47419 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47419-35011 |
BU6#,7#,8#..5F |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36030 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8# |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8# |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BU6#,7#,8# |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU6#,7#,8# |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU6#,7#,8# |
4 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
8 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BU6#,7#,8# |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BU6#,7#,8# |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36100 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BU6#,7#,8# |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BU6#,7#,8# |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36130 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BU6#,7#,8#..5F T=0.8 |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BU6#,7#,8#..5F T=0.8 |
4 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-12452 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
