BU85R-MDDHT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU75,76,85..RHD ; (8409- )BU6#,80,81,82,86

Click highlighted areas on diagram

diagram 38902 38902A 38902A 38903 38906 38910 38946A 9161160616 9161160816 9161160816 9165640825 9165640825 9411040800 9451200800 9461210800
Part # Description Qty Price
38902 - BRACKET SUB-ASSY, CONTROL SHAFT, UPPER
38902-96312

BU75,76,85,86..RHD

 1
38902A - BUSH, CONTROL SHAFT UPPER BRACKET
90386-13007

BU75,76,85,86..RHD

 2
38902A - BUSH, CONTROL SHAFT UPPER BRACKET
90386-13007

BU75,76,85,86..RHD

 2
38903 - KNOB SUB-ASSY, CONTROL
38908-96304

BU60,80..T3,TW1;BU61,62,63,75,76,81,82,85..WT..(CBU,IV3)

 1
38908-36010

BU63,65..CBU;BU60,61,62,75,76,8#..(T3,TW1)..(ARL,EUR,GEN,GHD)..(CBU,IV3)

 1
38910 - LEVER ASSY, DUMP
38901-96311

BU75,76,85,86..RHD

 1
Common parts
91611-60616
91611-60816
91656-40825
94110-40800
94512-00800
94612-10800

(8409- )BU75,76,85,86..RHD

Click highlighted areas on diagram

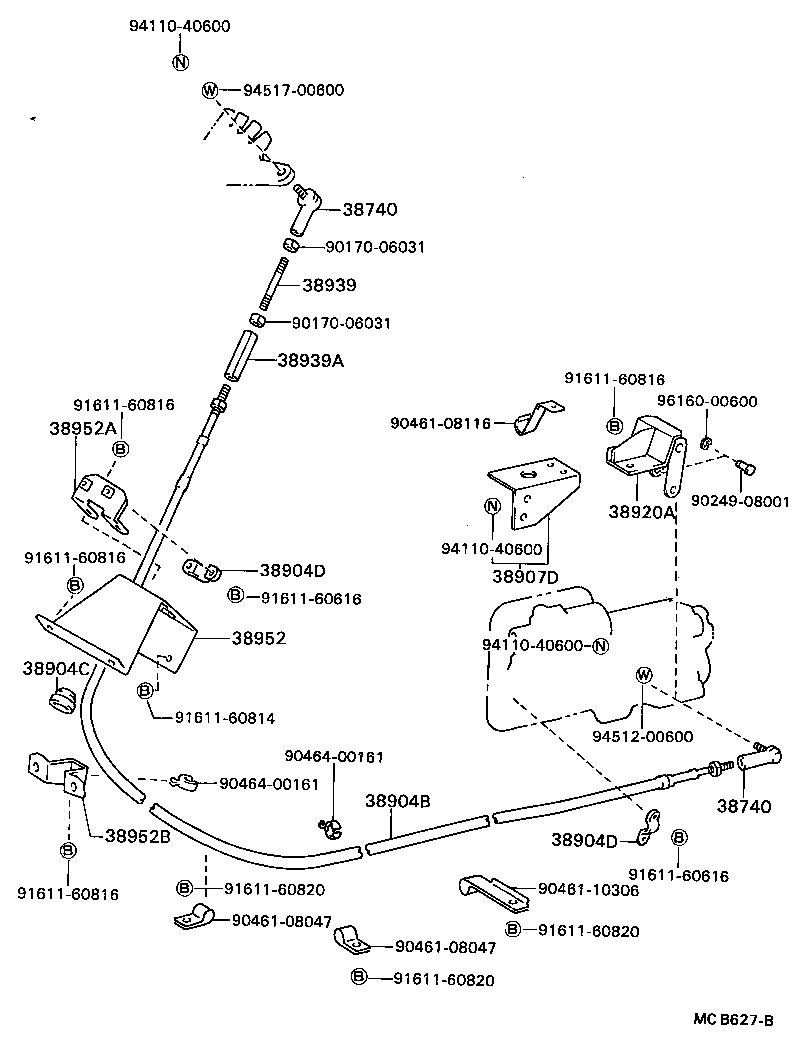

diagram 38740 38740 38904B 38904C 38904D 38904D 38907D 38920A 38939 38939A 38952 38952A 38952B 9017006031 9017006031 9024908001 9046108047 9046108047 9046108116 9046110306 9046400161 9046400161 9161160616 9161160616 9161160814 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9411040600 9411040600 9411040600 9451200600 9451700600 9616000600
Part # Description Qty Price
38740 - END ASSY, CONNECTING ROD
33740-96301

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 1
38740 - END ASSY, CONNECTING ROD
33740-96301

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 1
38904B - CABLE ASSY, PUSH PULL
38930-96305

BU75,76,85..RHD..(CBU,IV3)

 1
38930-93108

BU75,76,85,86..RHD..(CBU,IV3)

 1
38904C - GROMMET, PUSH PULL CABLE
90480-22013

BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT..(CBU,IV3)

 1
90480-22013

BU75,76,85,86..CBU,IV3

 1
38904D - CLAMP, CABLE PUSH PULL
38982-96302

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 2
38904D - CLAMP, CABLE PUSH PULL
38982-96302

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 2
38907D - STAY SUB-ASSY, POWER TAKE-OFF CONTROL
38907-93109

BU75,76,85,86..RHD..(CBU,IV3)

 1
38907-93103

BU75,76,85..RHD..(CBU,IV3)

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93100

BU75,76,85,86..RHD..(CBU,IV3)

 1
38939 - ROD, CABLE CONNECTING
38953-96303

BU75,76,85,86..RHD

 1
38939A - TURNBUCKLE(FOR CABLE CONNECTING ROD)
90587-06006

BU75,76,85,86..RHD

 1
38952 - BRACKET, CONTROL LINK
38977-96303

BU75,76,85,86..RHD

 1
38952A - BRACKET, CONTROL CABLE CLAMP, NO.1
38961-96307

BU75,76,85,86..RHD

 1
38952B - BRACKET, CONTROL CABLE CLAMP, NO.2
38962-96302

BU75,76,85,86..RHD

 1
Common parts
90170-06031
90249-08001
90461-08047
90461-08116
90461-10306
90464-00161
91611-60616
91611-60814
91611-60816
91611-60820
94110-40600
94512-00600
94517-00600
96160-00600

(8409- )YU6#,8# ; (8409- )WU9#..RHD

Click highlighted areas on diagram

diagram 38902 38902A 38902A 38903 38906 38910 38946A 9161160616 9161160816 9161160816 9165640825 9165640825 9411040800 9451200800 9461210800
Part # Description Qty Price
38902 - BRACKET SUB-ASSY, CONTROL SHAFT, UPPER
38902-96312

BU75,76,85,86..RHD

 1
38902A - BUSH, CONTROL SHAFT UPPER BRACKET
90386-13007

BU75,76,85,86..RHD

 2
38902A - BUSH, CONTROL SHAFT UPPER BRACKET
90386-13007

BU75,76,85,86..RHD

 2
38903 - KNOB SUB-ASSY, CONTROL
38908-96304

BU60,80..T3,TW1;BU61,62,63,75,76,81,82,85..WT..(CBU,IV3)

 1
38908-36010

BU63,65..CBU;BU60,61,62,75,76,8#..(T3,TW1)..(ARL,EUR,GEN,GHD)..(CBU,IV3)

 1
38910 - LEVER ASSY, DUMP
38901-96311

BU75,76,85,86..RHD

 1
Common parts
91611-60616
91611-60816
91656-40825
94110-40800
94512-00800
94612-10800

(8409- )YU60,62,8#..RHD

Click highlighted areas on diagram

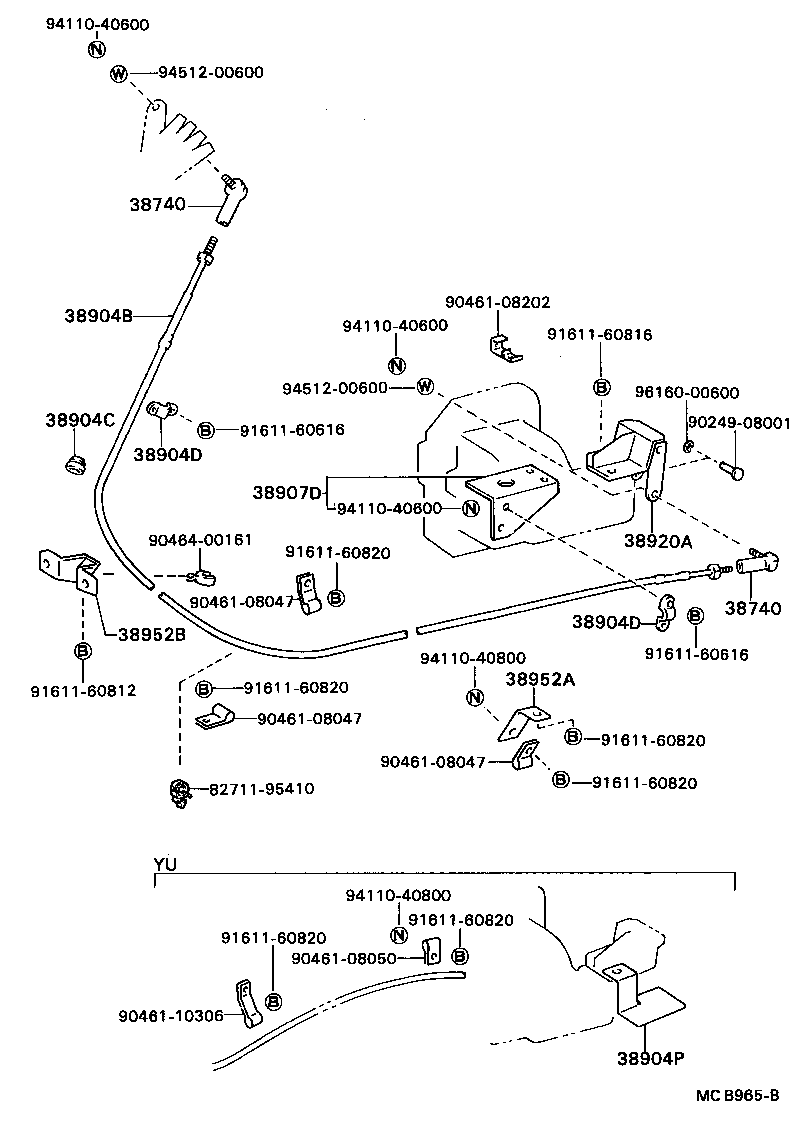

diagram 38740 38740 38904B 38904C 38904D 38904D 38904P 38907D 38920A 38952A 38952B 8271195410 9024908001 9046108047 9046108047 9046108047 9046108050 9046108202 9046110306 9046400161 9161160616 9161160616 9161160812 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9411040600 9411040600 9411040600 9411040800 9411040800 9451200600 9451200600 9616000600
Part # Description Qty Price
38740 - END ASSY, CONNECTING ROD
33740-96301

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 1
38740 - END ASSY, CONNECTING ROD
33740-96301

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 1
38904B - CABLE ASSY, PUSH PULL
38930-96305

BU75,76,85..RHD..(CBU,IV3)

 1
38930-93108

BU75,76,85,86..RHD..(CBU,IV3)

 1
38904C - GROMMET, PUSH PULL CABLE
90480-22013

BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT..(CBU,IV3)

 1
90480-22013

BU75,76,85,86..CBU,IV3

 1
38904D - CLAMP, CABLE PUSH PULL
38982-96302

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 2
38904D - CLAMP, CABLE PUSH PULL
38982-96302

BU60,80..T3..WT;BU61,62,63,65,75,76,82,85,86..5F..WT..(CBU,IV3)

 2
38907D - STAY SUB-ASSY, POWER TAKE-OFF CONTROL
38907-93109

BU75,76,85,86..RHD..(CBU,IV3)

 1
38907-93103

BU75,76,85..RHD..(CBU,IV3)

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93100

BU75,76,85,86..RHD..(CBU,IV3)

 1
38952A - BRACKET, CONTROL CABLE CLAMP, NO.1
38961-96307

BU75,76,85,86..RHD

 1
38952B - BRACKET, CONTROL CABLE CLAMP, NO.2
38962-96302

BU75,76,85,86..RHD

 1
Common parts
82711-95410
90249-08001
90461-08047
90461-08050
90461-08202
90461-10306
90464-00161
91611-60616
91611-60812
91611-60816
91611-60820
94110-40600
94110-40800
94512-00600
96160-00600
