BU85R-MDDHT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU75,76,85..RHD

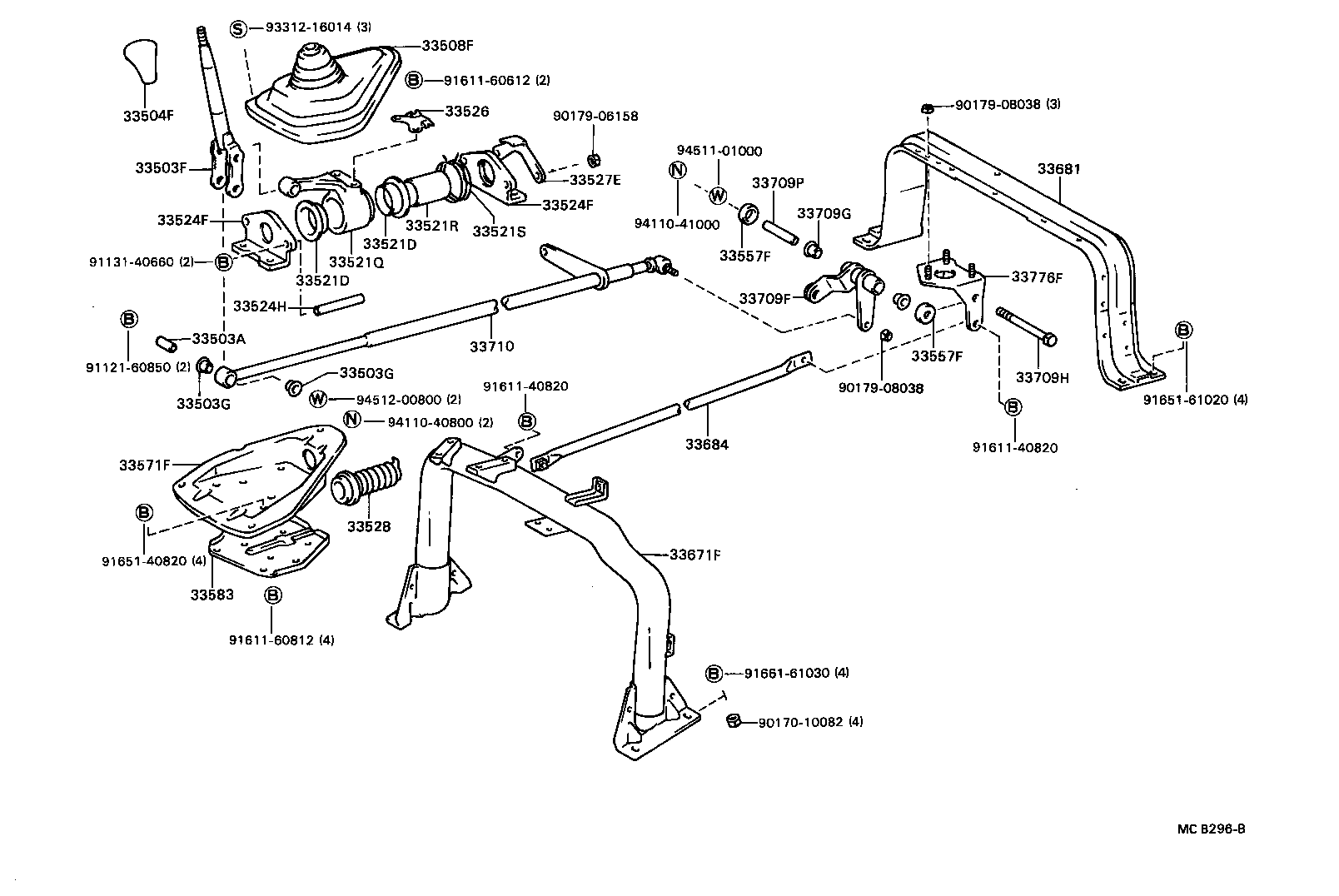

Click highlighted areas on diagram

diagram 33503A 33503F 33503G 33503G 33504F 33508F 33521D 33521D 33521Q 33521R 33521S 33524F 33524F 33524H 33526 33527E 33528 33557F 33557F 33571F 33583 33671F 33681 33684 33709F 33709G 33709H 33709P 33710 33776F 9017010082 9017906158 9017908038 9017908038 9112160850 9113140660 9161140820 9161140820 9161160612 9161160812 9165140820 9165161020 9166161030 9331216014 9411040800 9411041000 9451101000 9451200800
Part # Description Qty Price
33503A - COLLAR(FOR SHIFT LEVER)
90387-08009

BU6#,7#,8#..5F

 2
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-36060

BU6#,7#,8#..5F

 1
33503-36060

BU75,76,85;BU60,61,62,70,80,81..LHD

 1
33503G - BUSH(FOR SHIFT LEVER)
90389-11006

BU6#,7#,8#..5F

 4
33503G - BUSH(FOR SHIFT LEVER)
90389-11006

BU6#,7#,8#..5F

 4
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2401001

BU6#,7#,8#

BLACK

 1
33504-3605001

BU65..CBU;BU60,61,62,63,7#,8#..5F

BLACK

 1
33508F - BOOT SUB-ASSY, CONTROL SHAFT (FOR FLOOR SHIFT)
33508-36010

BU60,61,63,65,75,76,8#..RHD

 1
33521D - BUSH (FOR SHIFT LEVER HOUSING)
90389-38004

BU6#,7#,8#..5F

 2
33521D - BUSH (FOR SHIFT LEVER HOUSING)
90389-38004

BU6#,7#,8#..5F

 2
33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT)
33521-36050

BU6#,7#,8#..5F

 1
33521R - COLLAR (FOR SHIFT LEVER HOUSING)
90387-34001

BU6#,7#,8#..5F

 1
33521S - SPRING (FOR SHIFT LEVER HOUSING)
90508-26067

BU75,76,85,86..RHD

 1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-36030

BU6#,7#,8#..5F

 2
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-36030

BU6#,7#,8#..5F

 2
33524H - COLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)
90387-06026

BU6#,7#,8#..5F

 2
33526 - PLATE, SHIFT LEVER SUPPORT, NO.1
33526-36030

BU75,76,85,86

 1
33527E - PLATE, SHIFT LEVER SUPPORT, NO.2
33527-36130

BU6#,7#,8#..5F

 1
33528 - COVER, CONTROL SHAFT
33528-36020

BU6#,7#,8#..5F

 1
33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33557-36020

BU60,61,63,65,75,76,8#..RHD

 2
33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33557-36020

BU60,61,63,65,75,76,8#..RHD

 2
33571F - BRACKET, CONTROL SHAFT, LOWER NO.2
33571-36090

BU60,61,63,65,75,76,8#..RHD

 1
33583 - BRACKET, CONTROL SHAFT, LOWER NO.2
33583-36020

BU60,61,63,65,75,76,8#..RHD

 1
33671F - SUPPORT, CONTROL ROD, NO.1
33607-36040

BU75,76,85,86..RHD

 1
33681 - MEMBER, CONTROL ROD, REAR
33681-36011

BU60,61,62,7#,8#..5F

 1
33681-36010

BU6#,7#,8#

 1
33684 - ROD, CONTROL MEMBER BRACE
33684-36030

BU75,76,85,86

 1
33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33709-36310

BU75,76,85,86..RHD

 1
33709G - BUSH (FOR CROSS SHAFT, NO.1
90386-13007

BU75,76,85..RHD;BU6#,70,80,81,82

 4
90386-13007

BU65;BU60,61,63,75,76,8#..RHD

 4
33709H - BOLT, HEXAGON (FOR CROSS SHAFT)
90101-10117

BU75,76,85,86..RHD

 1
33709P - COLLAR (FOR CROSS SHAFT)
90387-10064

BU75,76,85,86..RHD

 1
33710 - ROD ASSY, GEAR SHIFTING, NO.1
33710-36210

BU75,76,85,86..RHD

 1
33776F - BRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)
33776-36190

BU75,76,85,86..RHD

 1
Common parts
90170-10082
90179-06158
90179-08038
91121-60850
91131-40660
91611-40820
91611-60612
91611-60812
91651-40820
91651-61020
91661-61030
93312-16014
94110-40800
94110-41000
94511-01000
94512-00800
