BU85R-MDDHT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )11B,13B

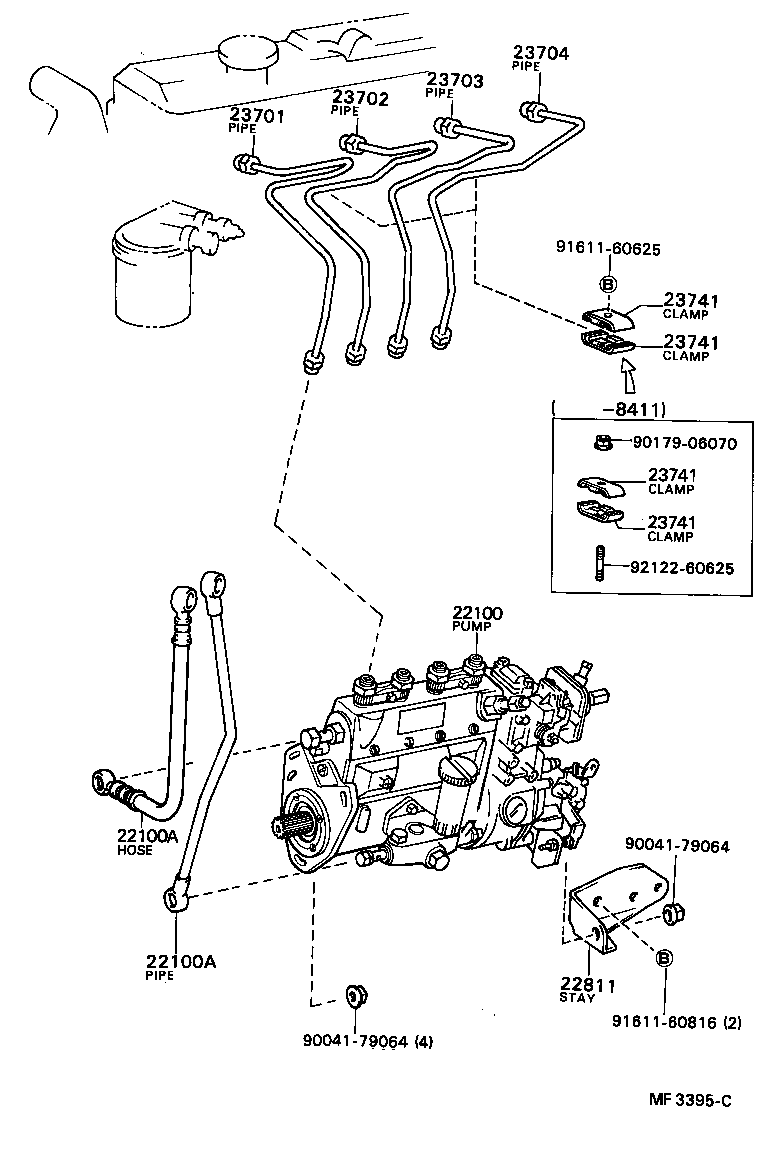

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 23701 23702 23703 23704 23741 23741 23741 23741 9004179064 9004179064 9017906070 9161160625 9161160816 9212260625
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-58290

13B..BU62,82,85..5F

W/TACHO METER

 1
22100-58260

13B..BU62,82,85..GEN,GHD

 1
22100-58280

13B..BU85..GEN

W/HAC & TACHO METER

 1
22100-58291

13B..BU82,85

W/TACHO METER

 1
22100-58250

13B..BU85..GEN

W/HAC

 1
22100-58261

13B..BU62,85..GEN

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23802-56040

B,11B,13B..BU6#,7#,8#

HOSE L=210

 1
23801-56060

B,11B,13B..BU6#,7#,8#

PIPE L=300

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23802-56040

B,11B,13B..BU6#,7#,8#

HOSE L=210

 1
23801-56060

B,11B,13B..BU6#,7#,8#

PIPE L=300

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56040

11B,13B..BU61,62,65,76,81,82,85,86

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-56060

11B,13B..BU61,62,65,76,81,82,85,86

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-56060

11B,13B..BU61,62,65,76,81,82,85,86

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-56060

11B,13B..BU61,62,65,76,81,82,85,86

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-56060

11B,13B..BU61,62,65,76,81,82,85,86

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,7#,8#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,7#,8#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,7#,8#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,7#,8#

 4
Common parts
90041-79064
90179-06070
91611-60625
91611-60816
92122-60625

(8409- )B

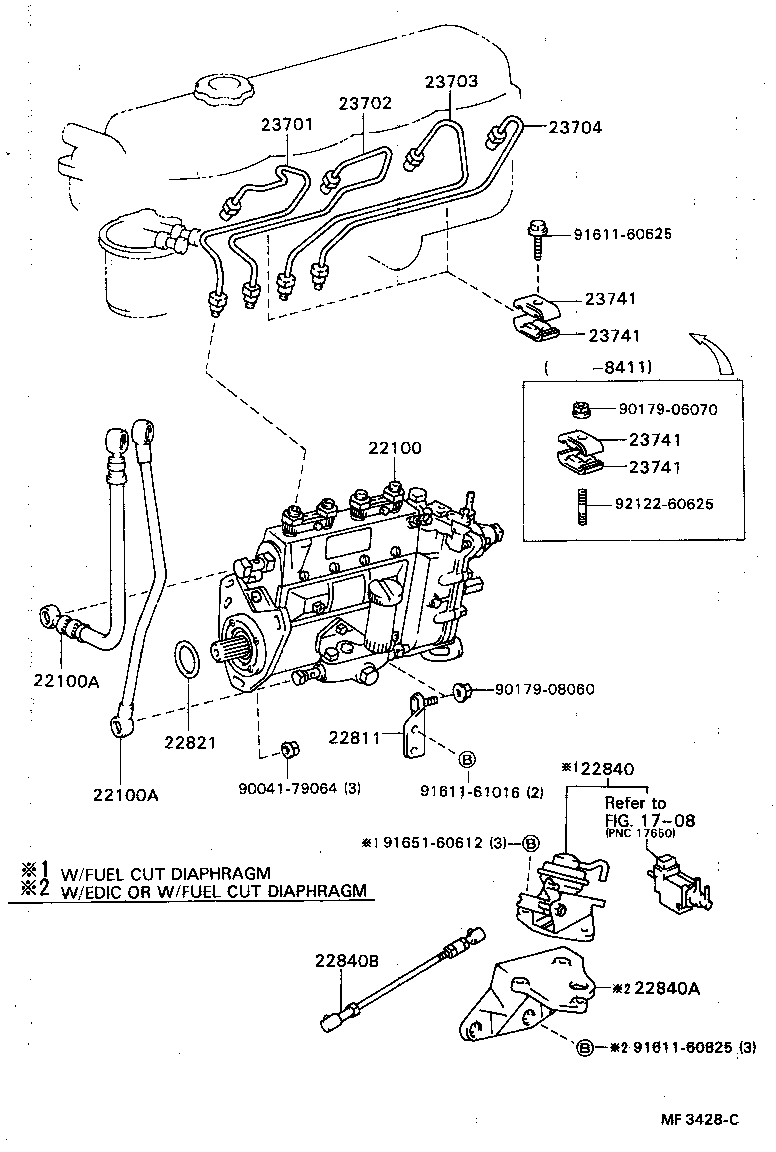

Click highlighted areas on diagram

diagram 1708 22100 22100A 22100A 22811 22821 22840 22840A 22840B 23701 23702 23703 23704 23741 23741 23741 23741 9004179064 9017906070 9017908060 9161160625 9161160825 9161161016 9165160612 9212260625
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-58290

13B..BU62,82,85..5F

W/TACHO METER

 1
22100-58260

13B..BU62,82,85..GEN,GHD

 1
22100-58280

13B..BU85..GEN

W/HAC & TACHO METER

 1
22100-58291

13B..BU82,85

W/TACHO METER

 1
22100-58250

13B..BU85..GEN

W/HAC

 1
22100-58261

13B..BU62,85..GEN

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23802-56040

B,11B,13B..BU6#,7#,8#

HOSE L=210

 1
23801-56060

B,11B,13B..BU6#,7#,8#

PIPE L=300

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23802-56040

B,11B,13B..BU6#,7#,8#

HOSE L=210

 1
23801-56060

B,11B,13B..BU6#,7#,8#

PIPE L=300

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56040

11B,13B..BU61,62,65,76,81,82,85,86

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-56060

11B,13B..BU61,62,65,76,81,82,85,86

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-56060

11B,13B..BU61,62,65,76,81,82,85,86

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-56060

11B,13B..BU61,62,65,76,81,82,85,86

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-56060

11B,13B..BU61,62,65,76,81,82,85,86

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,7#,8#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,7#,8#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,7#,8#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,7#,8#

 4
Common parts
90041-79064
90179-06070
90179-08060
91611-60625
91611-60825
91611-61016
91651-60612
92122-60625
Linked diagrams
1708
