BU85R-MDDHT1 (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
13B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )BU62,75,76,80,81,82,85..T3..5F

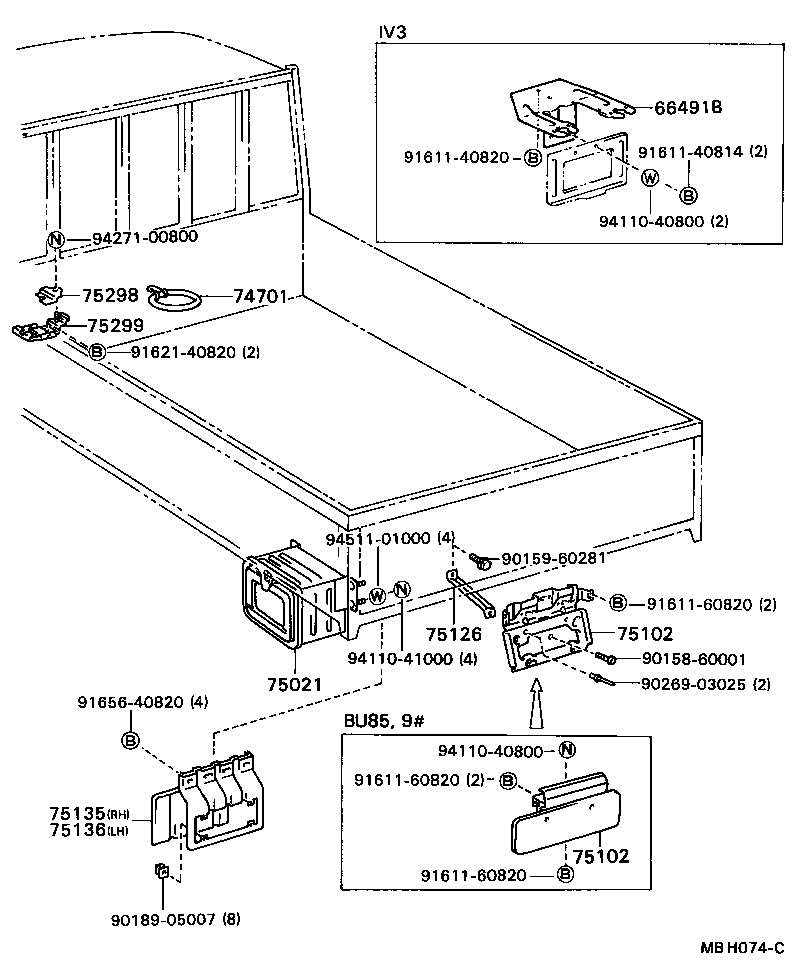

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74701 - CLAMP SUB-ASSY, TOOL BAG | ||||
| 58705-95400 |
BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82 |
1 | ||
| 75021 - BOX SUB-ASSY, TOOL | ||||
| 75210-92804 |
BU80,81,82,85..GEN,GHD |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-92802 |
BU85,86..ARL,GEN |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-92802 |
BU85,86..ARL,GEN |
1 | ||
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75105-92700 |
BU60,75,76,80,81,85,86..TB |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75105-92700 |
BU75,76,80,81,85,86 |
1 | ||
| 75298 - PLATE, JACK HOLDER | ||||
| 75298-95400 |
BU60,85..T1,T2,T3;BU61,62,63,65,7#,80,81,82 |
1 | ||
| 75299 - BASE, JACK HOLDER | ||||
| 75209-95404 |
BU75,76,85 |
1 | ||
| 75299-95402 |
BU75,76,85..T3 |
1 | ||
| 75299-95402 |
BU75,76,85..EUR,GEN |
1 | ||
| Common parts | ||||
| 90158-60001 | ||||
| 90159-60281 | ||||
| 90189-05007 | ||||
| 90269-03025 | ||||
| 91611-40814 | ||||
| 91611-40820 | ||||
| 91611-60820 | ||||
| 91621-40820 | ||||
| 91656-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94271-00800 | ||||
| 94511-01000 | ||||
(8409- )RU75,85,WU9#,YU8#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74701 - CLAMP SUB-ASSY, TOOL BAG | ||||
| 58705-95400 |
BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82 |
1 | ||
| 75021 - BOX SUB-ASSY, TOOL | ||||
| 75210-92804 |
BU80,81,82,85..GEN,GHD |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-92802 |
BU85,86..ARL,GEN |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-92802 |
BU85,86..ARL,GEN |
1 | ||
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75105-92700 |
BU60,75,76,80,81,85,86..TB |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75105-92700 |
BU75,76,80,81,85,86 |
1 | ||
| 75298 - PLATE, JACK HOLDER | ||||
| 75298-95400 |
BU60,85..T1,T2,T3;BU61,62,63,65,7#,80,81,82 |
1 | ||
| 75299 - BASE, JACK HOLDER | ||||
| 75209-95404 |
BU75,76,85 |
1 | ||
| 75299-95402 |
BU75,76,85..T3 |
1 | ||
| 75299-95402 |
BU75,76,85..EUR,GEN |
1 | ||
| Common parts | ||||
| 90158-60001 | ||||
| 90159-60281 | ||||
| 90189-05007 | ||||
| 90269-03025 | ||||
| 91611-40814 | ||||
| 91611-40820 | ||||
| 91611-60820 | ||||
| 91621-40820 | ||||
| 91656-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94271-00800 | ||||
| 94511-01000 | ||||
