BU85R-MDDHT1 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

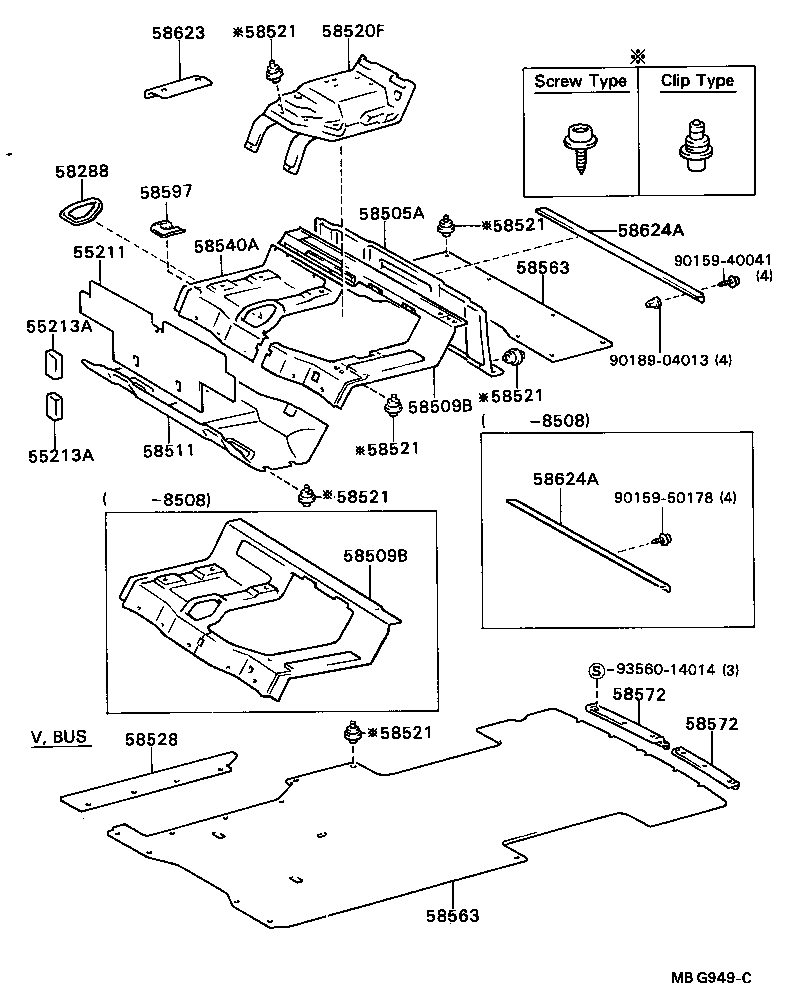

Click highlighted areas on diagram

diagram 55211 55213A 55213A 58288 58505A 58509B 58509B 58511 58520F 58521 58521 58521 58521 58521 58521 58528 58540A 58563 58563 58572 58572 58597 58623 58624A 58624A 9015940041 9015950178 9018904013 9356014014
Part # Description Qty Price
55211 - SILENCER, FRONT PANEL
55211-95405

BU75,76,85,86

 2
58288 - SEAL, SHIFT LEVER BOOT
58288-95400

BU6#,75,76,8#..RHD

 1
58511 - MAT, FLOOR, FRONT
58510-95B0603

BU75,76,85,86..RHD..GEN

SHADOW GRAY,GRAY

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58597 - PLATE, SEAT TRACK SET
58597-95400

BU6#,75,76,8#..GEN,GHD,SA

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58624-9540003

BU60,61,63,75,76,8#..RHD..(GEN,GHD)

SHADOW GRAY,GRAY

 1
58624-9540203

BU60,61,63,75,76,8#..RHD..(GEN,GHD,SA)

GRAY,SHADOW GRAY

 1
Common parts
90159-40041
90159-50178
90189-04013
93560-14014

(8409- )

Click highlighted areas on diagram

diagram 55211 55213A 55213A 58288 58505A 58509B 58509B 58511 58520F 58521 58521 58521 58521 58521 58521 58528 58540A 58563 58563 58572 58572 58597 58623 58624A 58624A 9015940041 9015950178 9018904013 9356014014
Part # Description Qty Price
55211 - SILENCER, FRONT PANEL
55211-95405

BU75,76,85,86

 2
58288 - SEAL, SHIFT LEVER BOOT
58288-95400

BU6#,75,76,8#..RHD

 1
58511 - MAT, FLOOR, FRONT
58510-95B0603

BU75,76,85,86..RHD..GEN

SHADOW GRAY,GRAY

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

BU6#,7#,8#

CLIP TYPE

 1
58597 - PLATE, SEAT TRACK SET
58597-95400

BU6#,75,76,8#..GEN,GHD,SA

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58624-9540003

BU60,61,63,75,76,8#..RHD..(GEN,GHD)

SHADOW GRAY,GRAY

 1
58624-9540203

BU60,61,63,75,76,8#..RHD..(GEN,GHD,SA)

GRAY,SHADOW GRAY

 1
Common parts
90159-40041
90159-50178
90189-04013
93560-14014
