BU85R-MDDHT1 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU6#,75,76,8#

Click highlighted areas on diagram

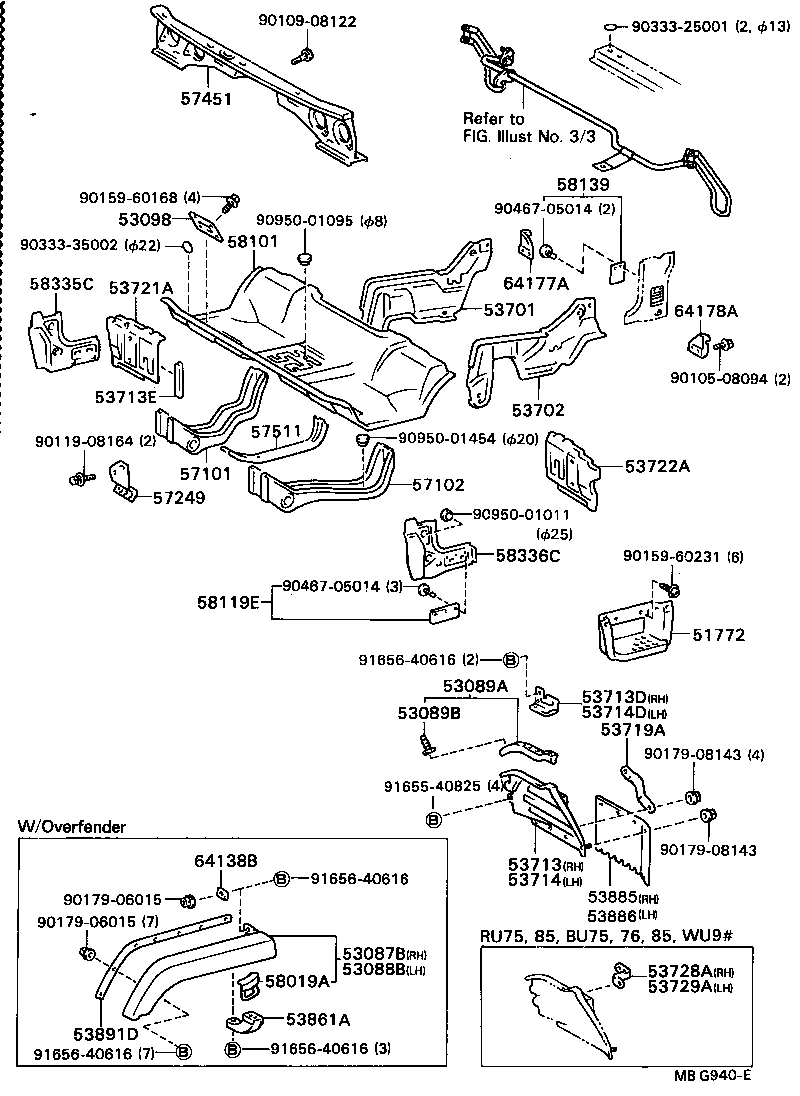

diagram 51772 53087B 53088B 53089A 53089B 53098 53701 53702 53713 53713D 53713E 53714 53714D 53719A 53721A 53722A 53728A 53729A 53861A 53885 53886 53891D 57101 57102 57249 57451 57511 58019A 58101 58119E 58139 58335C 58336C 64138B 64177A 64178A 9010508094 9010908122 9011908164 9015960168 9015960231 9017906015 9017906015 9017908143 9017908143 9033325001 9033335002 9046705014 9046705014 9095001011 9095001095 9095001454 9165540825 9165640616 9165640616 9165640616 9165640616
Part # Description Qty Price
51772 - PLATE, STEP
51771-95406

BU6#,7#,8#

RH

 1
51772-95406

BU6#,7#,8#

LH

 1
53089A - MUDGUARD SUB-ASSY, FRONT
53089-95400

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

 2
53089B - CLIP, FRONT MUDGUARD
67868-95401

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

 12
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53711-95411

BU75,76,85,86

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53712-95415

BU75,76,85,86

 1
53713 - APRON, FENDER SIDE, RH
53715-95404

BU85..RHD..GEN..(IV1,IV3)

W/O TILT CAB

 1
53714 - APRON, FENDER SIDE, LH
53716-95403

BU75,76,85..T3

 1
53719A - BRACE, FENDER APRON
53719-95403

BU85..RHD..GEN..(IV1,IV3)

W/O TILT CAB

 2
53721A - APRON, FRONT FENDER, NO.2 RH
53707-95400

BU75,76,85,86

 1
53722A - APRON, FRONT FENDER, NO.2 LH
53708-95400

BU75,76,85,86

 1
53885 - MUDGUARD, FRONT RH
53881-95400

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

 1
53881-95402

BU75,76,85..T3

 1
53886 - MUDGUARD, FRONT LH
53881-95400

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

 1
53881-95402

BU75,76,85..T3

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57011-95401

BU75,76,85,86

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57012-95401

BU75,76,85..T3

 1
57249 - BRACKET, FLEXIBLE HOSE, NO.1
57249-95400

BU6#,75,76,8#..RHD

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-95411

BU75,76,85,86..RHD..GEN

W/AIR CONDITIONER

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-95441

BU75,76,85,86..RHD

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-95400

BU6#,7#,8#

 2
58139 - COVER, FRONT FLOOR SIDE, REAR
58139-95400

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

LH

 1
58139-95401

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

RH

 1
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-95401

BU6#,7#,8#

 1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-95401

BU6#,7#,8#

 1
Common parts
90105-08094
90109-08122
90119-08164
90159-60168
90159-60231
90179-06015
90179-08143
90333-25001
90333-35002
90467-05014
90950-01011
90950-01095
90950-01454
91655-40825
91656-40616

(8409- )

Click highlighted areas on diagram

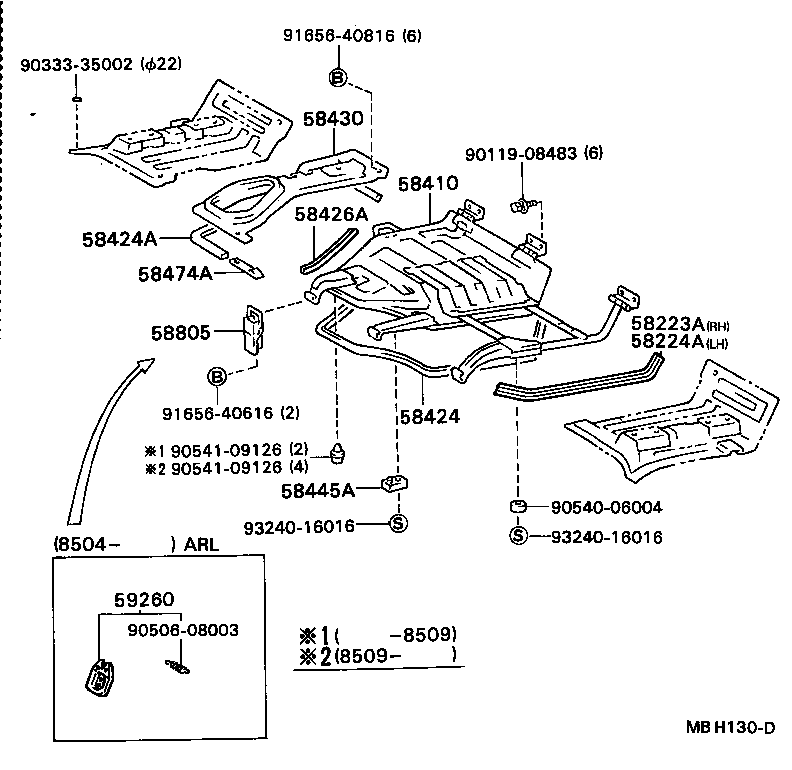

diagram 58223A 58224A 58410 58424 58424A 58426A 58430 58445A 58474A 58805 59260 9011908483 9033335002 9050608003 9054006004 9054109126 9054109126 9165640616 9165640816 9324016016 9324016016
Part # Description Qty Price
58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH
58224-95404

BU75,76,85,86..RHD

 1
58410 - COVER, ENGINE SERVICE HOLE
59208-95404

BU75,76,85,86..RHD..GEN

 1
58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1
58424-95405

BU6#,7#,8#

 1
58424A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1
58444-95402

BU6#,7#,8#

 1
58426A - PROTECTOR, ENGINE SERVICE HOLE
58426-95405

BU6#,7#,8#

 1
58430 - COVER ASSY, SUB-FLOOR SERVICE HOLE
58407-95410

BU75,76,85..RHD

 1
58407-95417

BU75,76,85,86..RHD

 1
58445A - CUSHION, ENGINE SERVICE HOLE COVER
58445-95400

BU6#,7#,8#

 2
58474A - PACKING, ENGINE SUB COVER, NO.2
58474-95401

BU6#,7#,8#

 1
58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER
71902-9540003

BU75,76,85,86

CTR,SHADOW GRAY,SHADOW GRAY

 1
71901-9570403

BU85

SHADOW GRAY,SHADOW GRAY

 2
71901-9570403

BU6#,7#,8#

SHADOW GRAY,SHADOW GRAY

 2
71901-9570403

BU85,86..EUR,GEN

SHADOW GRAY,SHADOW GRAY

 2
Common parts
90119-08483
90333-35002
90506-08003
90540-06004
90541-09126
91656-40616
91656-40816
93240-16016

(8409- )

Click highlighted areas on diagram

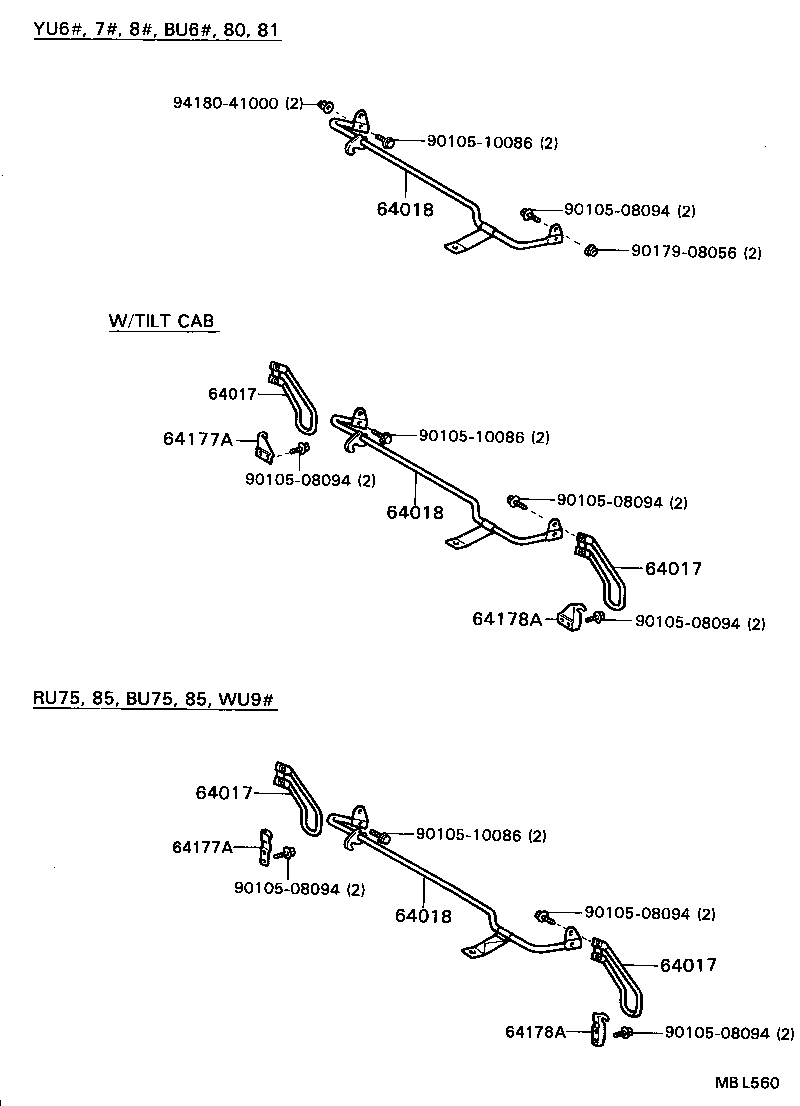

diagram 64017 64017 64017 64017 64018 64018 64018 64177A 64177A 64178A 64178A 9010508094 9010508094 9010508094 9010508094 9010508094 9010508094 9010508094 9010510086 9010510086 9010510086 9017908056 9418041000
Part # Description Qty Price
Common parts
90105-08094
90105-10086
90179-08056
94180-41000

(8409- )RU75,85,WU9#,YU6#,8#

Click highlighted areas on diagram

diagram 51772 53087B 53088B 53089A 53089B 53098 53701 53702 53713 53713D 53713E 53714 53714D 53719A 53721A 53722A 53728A 53729A 53861A 53885 53886 53891D 57101 57102 57249 57451 57511 58019A 58101 58119E 58139 58335C 58336C 64138B 64177A 64178A 9010508094 9010908122 9011908164 9015960168 9015960231 9017906015 9017906015 9017908143 9017908143 9033325001 9033335002 9046705014 9046705014 9095001011 9095001095 9095001454 9165540825 9165640616 9165640616 9165640616 9165640616
Part # Description Qty Price
51772 - PLATE, STEP
51771-95406

BU6#,7#,8#

RH

 1
51772-95406

BU6#,7#,8#

LH

 1
53089A - MUDGUARD SUB-ASSY, FRONT
53089-95400

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

 2
53089B - CLIP, FRONT MUDGUARD
67868-95401

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

 12
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53711-95411

BU75,76,85,86

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53712-95415

BU75,76,85,86

 1
53713 - APRON, FENDER SIDE, RH
53715-95404

BU85..RHD..GEN..(IV1,IV3)

W/O TILT CAB

 1
53714 - APRON, FENDER SIDE, LH
53716-95403

BU75,76,85..T3

 1
53719A - BRACE, FENDER APRON
53719-95403

BU85..RHD..GEN..(IV1,IV3)

W/O TILT CAB

 2
53721A - APRON, FRONT FENDER, NO.2 RH
53707-95400

BU75,76,85,86

 1
53722A - APRON, FRONT FENDER, NO.2 LH
53708-95400

BU75,76,85,86

 1
53885 - MUDGUARD, FRONT RH
53881-95400

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

 1
53881-95402

BU75,76,85..T3

 1
53886 - MUDGUARD, FRONT LH
53881-95400

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

 1
53881-95402

BU75,76,85..T3

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57011-95401

BU75,76,85,86

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57012-95401

BU75,76,85..T3

 1
57249 - BRACKET, FLEXIBLE HOSE, NO.1
57249-95400

BU6#,75,76,8#..RHD

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-95411

BU75,76,85,86..RHD..GEN

W/AIR CONDITIONER

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-95441

BU75,76,85,86..RHD

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-95400

BU6#,7#,8#

 2
58139 - COVER, FRONT FLOOR SIDE, REAR
58139-95400

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

LH

 1
58139-95401

BU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82

RH

 1
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-95401

BU6#,7#,8#

 1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-95401

BU6#,7#,8#

 1
Common parts
90105-08094
90109-08122
90119-08164
90159-60168
90159-60231
90179-06015
90179-08143
90333-25001
90333-35002
90467-05014
90950-01011
90950-01095
90950-01454
91655-40825
91656-40616

(8409- )

Click highlighted areas on diagram

diagram 58223A 58224A 58410 58424 58424A 58426A 58430 58445A 58474A 58805 59260 9011908483 9033335002 9050608003 9054006004 9054109126 9054109126 9165640616 9165640816 9324016016 9324016016
Part # Description Qty Price
58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH
58224-95404

BU75,76,85,86..RHD

 1
58410 - COVER, ENGINE SERVICE HOLE
59208-95404

BU75,76,85,86..RHD..GEN

 1
58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1
58424-95405

BU6#,7#,8#

 1
58424A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1
58444-95402

BU6#,7#,8#

 1
58426A - PROTECTOR, ENGINE SERVICE HOLE
58426-95405

BU6#,7#,8#

 1
58430 - COVER ASSY, SUB-FLOOR SERVICE HOLE
58407-95410

BU75,76,85..RHD

 1
58407-95417

BU75,76,85,86..RHD

 1
58445A - CUSHION, ENGINE SERVICE HOLE COVER
58445-95400

BU6#,7#,8#

 2
58474A - PACKING, ENGINE SUB COVER, NO.2
58474-95401

BU6#,7#,8#

 1
58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER
71902-9540003

BU75,76,85,86

CTR,SHADOW GRAY,SHADOW GRAY

 1
71901-9570403

BU85

SHADOW GRAY,SHADOW GRAY

 2
71901-9570403

BU6#,7#,8#

SHADOW GRAY,SHADOW GRAY

 2
71901-9570403

BU85,86..EUR,GEN

SHADOW GRAY,SHADOW GRAY

 2
Common parts
90119-08483
90333-35002
90506-08003
90540-06004
90541-09126
91656-40616
91656-40816
93240-16016

(8409- )

Click highlighted areas on diagram

diagram 64017 64017 64017 64017 64018 64018 64018 64177A 64177A 64178A 64178A 9010508094 9010508094 9010508094 9010508094 9010508094 9010508094 9010508094 9010510086 9010510086 9010510086 9017908056 9418041000
Part # Description Qty Price
Common parts
90105-08094
90105-10086
90179-08056
94180-41000
