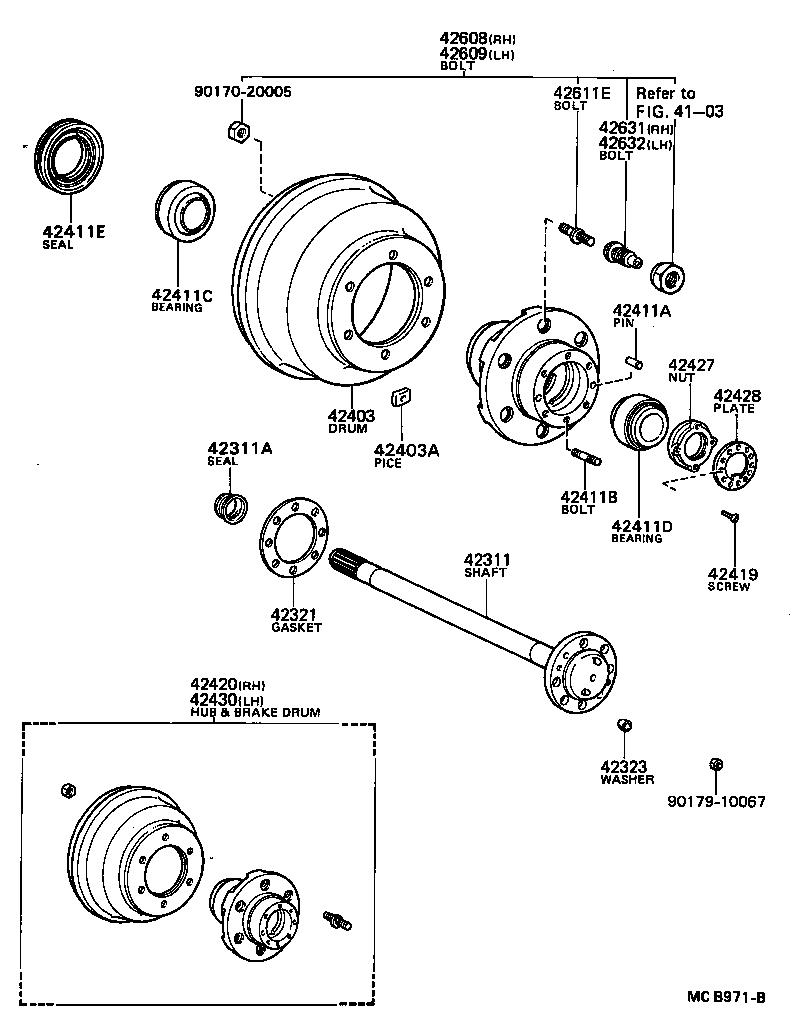

BU85R-MDDHT1 (1984)
Toyota Dyna
(8409- )BU60,80..T3..WT ; (8409- )BU61,62,63,65,75,76,81,82,85,86..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-25050 |
BU85;BU80,81,82..GHD 12 IN DIFF |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-40001 |
BU80,81..GHD;BU63,65,82,85 12 IN DIFF |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36030 |
BU6#,7#,8# |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU6#,7#,8# |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36120 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01120 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 40G,40G |
1 | ||
| 90937-01118 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 20G,20G |
1 | ||
| 90937-01122 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT 60G,60G |
1 | ||
| 90937-01119 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 30G,30G |
1 | ||
| 90937-01121 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 50G,50G |
1 | ||
| 90937-01117 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 10G,10G |
1 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
BU6#,7#,8# |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
BU6#,7#,8# |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
BU6#,7#,8# |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU6#,7#,8# |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
BU6#,7#,8# |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU6#,7#,8# |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36140 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU6#,7#,8# |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU6#,7#,8# |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36140 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 42608 - BOLT SUB-ASSY, REAR AXLE HUB, RH | ||||
| 42608-36050 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
5 | ||
| 42609 - BOLT SUB-ASSY, REAR AXLE HUB, LH | ||||
| 42609-36050 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
5 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02055 |
BU85..RHD..GEN..(IV1,IV3) LH,INDIA SPEC |
5 | ||
| 90942-02054 |
BU85..RHD..GEN..(IV1,IV3) RH,INDIA SPEC |
5 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
BU60,80,85..T3..WT;BU61,62,63,65,75,76,81,82..WT |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
BU60,80,85..T3..WT;BU61,62,63,65,75,76,81,82..WT |
5 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8409- )RU75,85,YU6#,8#..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-25050 |
BU85;BU80,81,82..GHD 12 IN DIFF |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-40001 |
BU80,81..GHD;BU63,65,82,85 12 IN DIFF |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36030 |
BU6#,7#,8# |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU6#,7#,8# |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36120 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01120 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 40G,40G |
1 | ||
| 90937-01118 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 20G,20G |
1 | ||
| 90937-01122 |
BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT 60G,60G |
1 | ||
| 90937-01119 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 30G,30G |
1 | ||
| 90937-01121 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 50G,50G |
1 | ||
| 90937-01117 |
BU60,80..T3..WT;BU61,62,63,75,76,81,82,85..WT 10G,10G |
1 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
BU6#,7#,8# |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
BU6#,7#,8# |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
BU6#,7#,8# |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU6#,7#,8# |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
BU6#,7#,8# |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU6#,7#,8# |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36140 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU6#,7#,8# |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU6#,7#,8# |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36140 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
1 | ||
| 42608 - BOLT SUB-ASSY, REAR AXLE HUB, RH | ||||
| 42608-36050 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
5 | ||
| 42609 - BOLT SUB-ASSY, REAR AXLE HUB, LH | ||||
| 42609-36050 |
BU85..RHD..GEN..(IV1,IV3) INDIA SPEC |
5 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02055 |
BU85..RHD..GEN..(IV1,IV3) LH,INDIA SPEC |
5 | ||
| 90942-02054 |
BU85..RHD..GEN..(IV1,IV3) RH,INDIA SPEC |
5 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
BU60,80,85..T3..WT;BU61,62,63,65,75,76,81,82..WT |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
BU60,80,85..T3..WT;BU61,62,63,65,75,76,81,82..WT |
5 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
