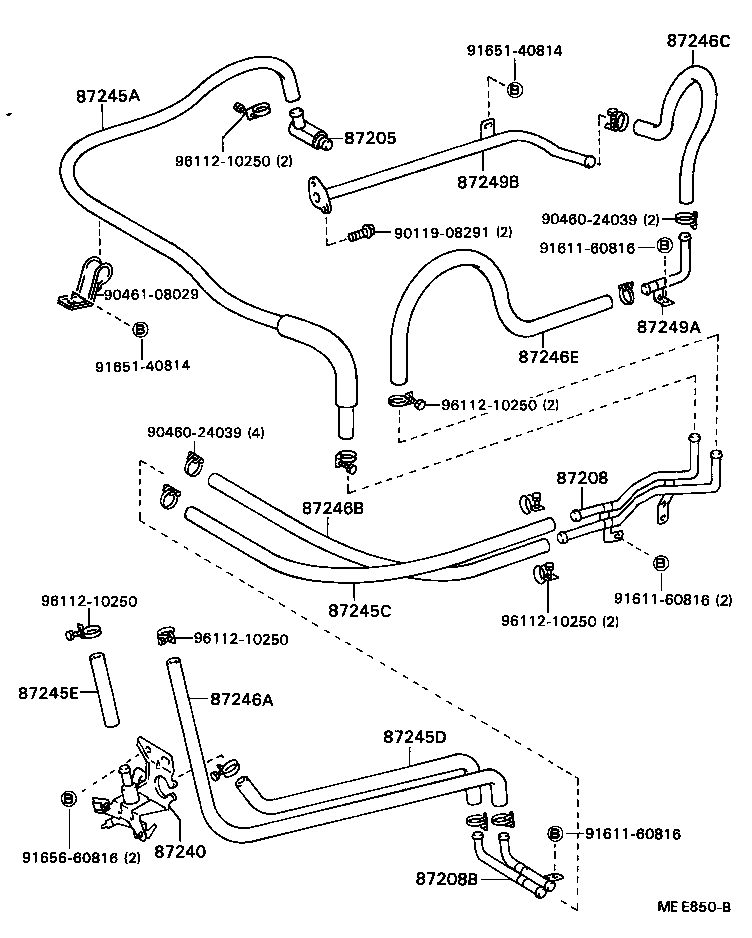

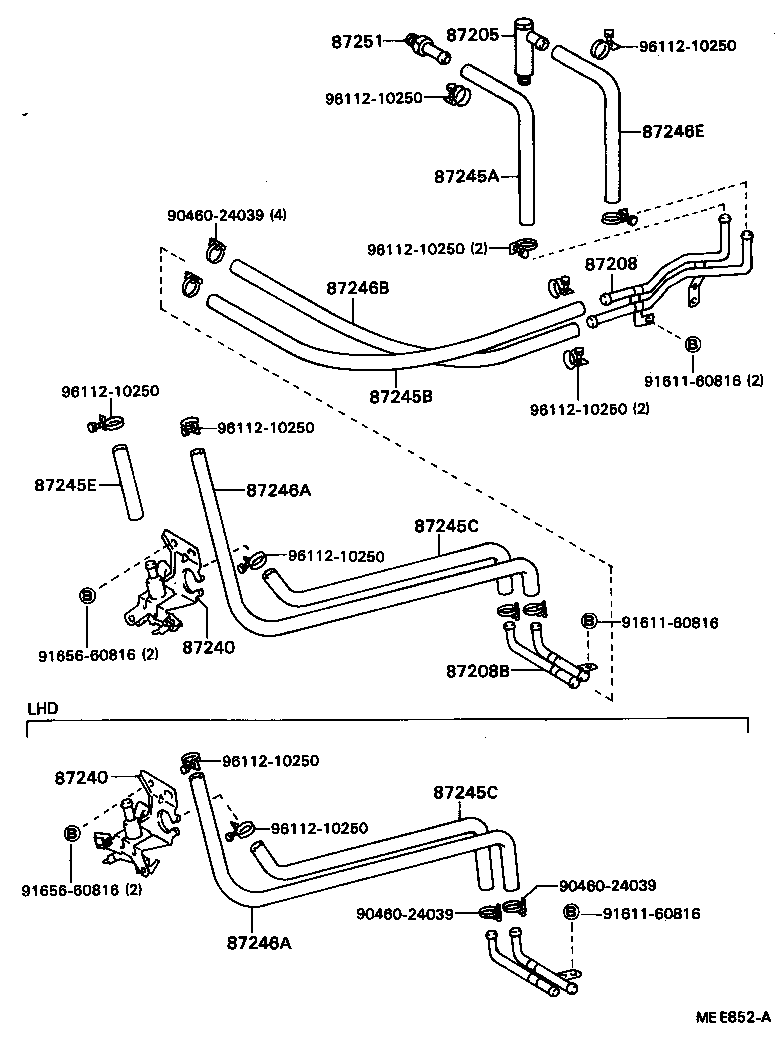

Toyota Dyna BU85 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400	BU6#,7#,8#	09/1984 - 08/1987	1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95402	BU75,76,85..T3	10/1985 - 08/1987	1
87208-95402	BU75,76,85	09/1984 - 10/1985	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95406	BU75,76,85,86	09/1984 - 08/1987	1
87240 - VALVE ASSY, HEATER WATER
87240-95405	BU6#,75,76,8#..RHD	09/1984 - 08/1987	1
87240 - VALVE ASSY, HEATER WATER
87240-95405	BU6#,75,76,8#..RHD	09/1984 - 08/1987	1
87245A - HOSE, HEATER WATER, INLET A
87245-95467	BU75,76,85,86	09/1984 - 08/1987	1
87245B - HOSE, HEATER WATER, INLET B
87245-95463	BU75,76,85,86..RHD	09/1984 - 08/1987	1
87245C - HOSE, HEATER WATER ,INLET C
99556-30500	BU75,76,85,86 *H,L=400	09/1984 - 08/1987	1
87245C - HOSE, HEATER WATER ,INLET C
99556-30500	BU75,76,85,86 *H,L=400	09/1984 - 08/1987	1
87245E - HOSE, HEATER WATER, INLET E
99556-30100	BU6#,7#,8# *H,L=60	09/1984 - 08/1987	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30700	BU75,76,85,86 *H,L=520	09/1984 - 08/1987	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30700	BU75,76,85,86 *H,L=520	09/1984 - 08/1987	1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30500	BU75,76,85,86..RHD *H,L=370	08/1985 - 08/1987	1
87245-95462	BU75,76,85..RHD	09/1984 - 08/1985	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95466	BU75,76,85,86	09/1984 - 08/1987	1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200	BU6#,7#,8# FR HEATER	09/1984 - 08/1987	1
Common parts
90460-24039
91611-60816
91656-60816
96112-10250

BU85R-MDDHT (1984)
