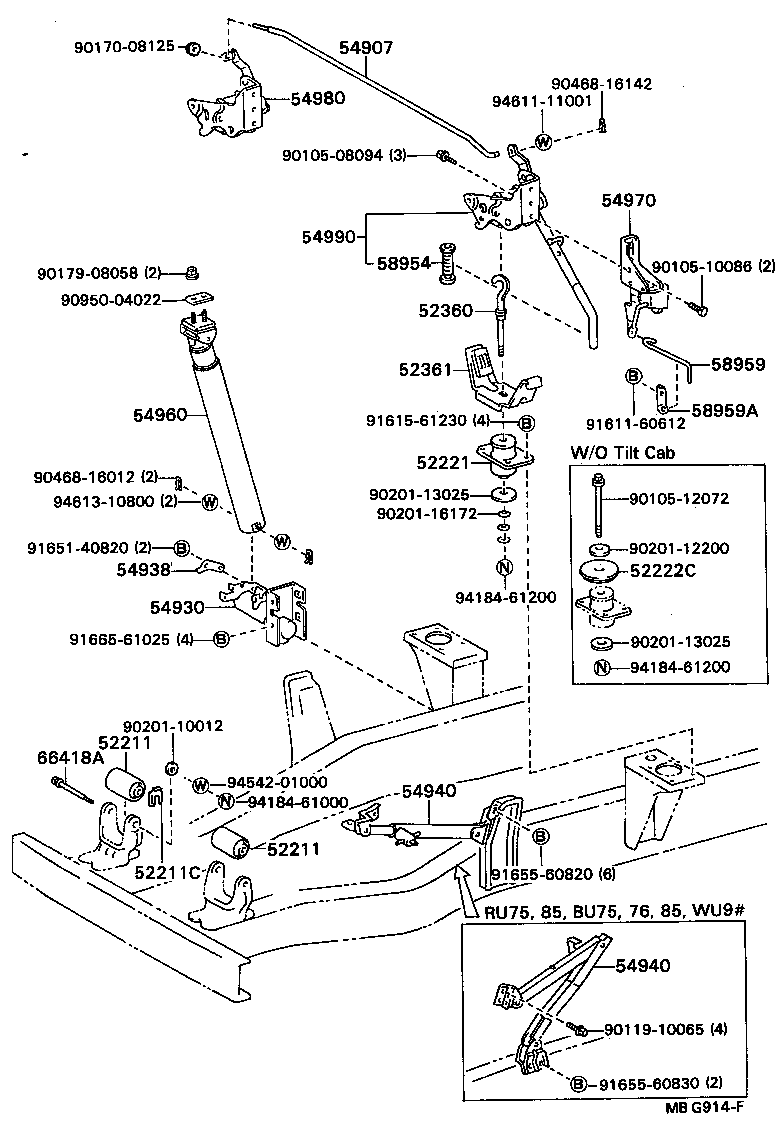

BU85L-MDDHT3 (1984)
Toyota Dyna
(8409- )T1,T2,T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52211 - CUSHION, BODY MOUNTING, NO.1 UPPER | ||||
| 52201-36050 |
BU75,76,85,86 |
2 | ||
| 52211 - CUSHION, BODY MOUNTING, NO.1 UPPER | ||||
| 52201-36050 |
BU75,76,85,86 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-36020 |
BU6#,7#,8# |
2 | ||
| 52221 - CUSHION, BODY MOUNT, NO.2 UPPER | ||||
| 52203-36050 |
BU6#,7#,8# |
2 | ||
| 52360 - HOOK ASSY, CAB MOUNTING | ||||
| 52367-36030 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 |
2 | ||
| 52361 - BRACKET, CAB MOUNTING HOOK | ||||
| 52307-36020 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 RH |
1 | ||
| 52306-36020 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 LH |
1 | ||
| 54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING | ||||
| 54907-95401 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54930 - BRACKET ASSY, TILT CAB COIL SPRING, LOWER | ||||
| 54930-95400 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54938 - PLATE, TILT CAB COIL SPRING SUPPORT | ||||
| 54938-95400 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 |
2 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-95402 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-95402 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54960 - SPRING ASSY, TILT CAB COIL | ||||
| 54960-95401 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-95401 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-95400 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-95401 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54990-95404 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 58954 - COVER, REAR LOCK HANDLE GRIP | ||||
| 58954-95400 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 |
1 | ||
| 58959 - ROD, REAR LOCK, HANDLE LATCH | ||||
| 58959-95402 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 58959A - BRACKET, REAR LOCK HANDLE ROD | ||||
| 53825-95401 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 66418A - BOLT, MOUNTING | ||||
| 90109-10076 |
BU6#,7#,8# |
2 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10086 | ||||
| 90105-12072 | ||||
| 90119-10065 | ||||
| 90170-08125 | ||||
| 90179-08058 | ||||
| 90201-10012 | ||||
| 90201-12200 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90468-16012 | ||||
| 90468-16142 | ||||
| 90950-04022 | ||||
| 91611-60612 | ||||
| 91615-61230 | ||||
| 91651-40820 | ||||
| 91655-60820 | ||||
| 91655-60830 | ||||
| 91665-61025 | ||||
| 94184-61000 | ||||
| 94184-61200 | ||||
| 94542-01000 | ||||
| 94611-11001 | ||||
| 94613-10800 | ||||
(8409- )RU75,85,WU9#,YU6#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52211 - CUSHION, BODY MOUNTING, NO.1 UPPER | ||||
| 52201-36050 |
BU75,76,85,86 |
2 | ||
| 52211 - CUSHION, BODY MOUNTING, NO.1 UPPER | ||||
| 52201-36050 |
BU75,76,85,86 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-36020 |
BU6#,7#,8# |
2 | ||
| 52221 - CUSHION, BODY MOUNT, NO.2 UPPER | ||||
| 52203-36050 |
BU6#,7#,8# |
2 | ||
| 52360 - HOOK ASSY, CAB MOUNTING | ||||
| 52367-36030 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 |
2 | ||
| 52361 - BRACKET, CAB MOUNTING HOOK | ||||
| 52307-36020 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 RH |
1 | ||
| 52306-36020 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 LH |
1 | ||
| 54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING | ||||
| 54907-95401 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54930 - BRACKET ASSY, TILT CAB COIL SPRING, LOWER | ||||
| 54930-95400 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54938 - PLATE, TILT CAB COIL SPRING SUPPORT | ||||
| 54938-95400 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 |
2 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-95402 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-95402 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54960 - SPRING ASSY, TILT CAB COIL | ||||
| 54960-95401 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-95401 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-95400 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-95401 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 54990-95404 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 58954 - COVER, REAR LOCK HANDLE GRIP | ||||
| 58954-95400 |
BU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3 |
1 | ||
| 58959 - ROD, REAR LOCK, HANDLE LATCH | ||||
| 58959-95402 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 58959A - BRACKET, REAR LOCK HANDLE ROD | ||||
| 53825-95401 |
BU75,76,85..T3..(CBU,IV3) |
1 | ||
| 66418A - BOLT, MOUNTING | ||||
| 90109-10076 |
BU6#,7#,8# |
2 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10086 | ||||
| 90105-12072 | ||||
| 90119-10065 | ||||
| 90170-08125 | ||||
| 90179-08058 | ||||
| 90201-10012 | ||||
| 90201-12200 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90468-16012 | ||||
| 90468-16142 | ||||
| 90950-04022 | ||||
| 91611-60612 | ||||
| 91615-61230 | ||||
| 91651-40820 | ||||
| 91655-60820 | ||||
| 91655-60830 | ||||
| 91665-61025 | ||||
| 94184-61000 | ||||
| 94184-61200 | ||||
| 94542-01000 | ||||
| 94611-11001 | ||||
| 94613-10800 | ||||
