BU85L-MDDHT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

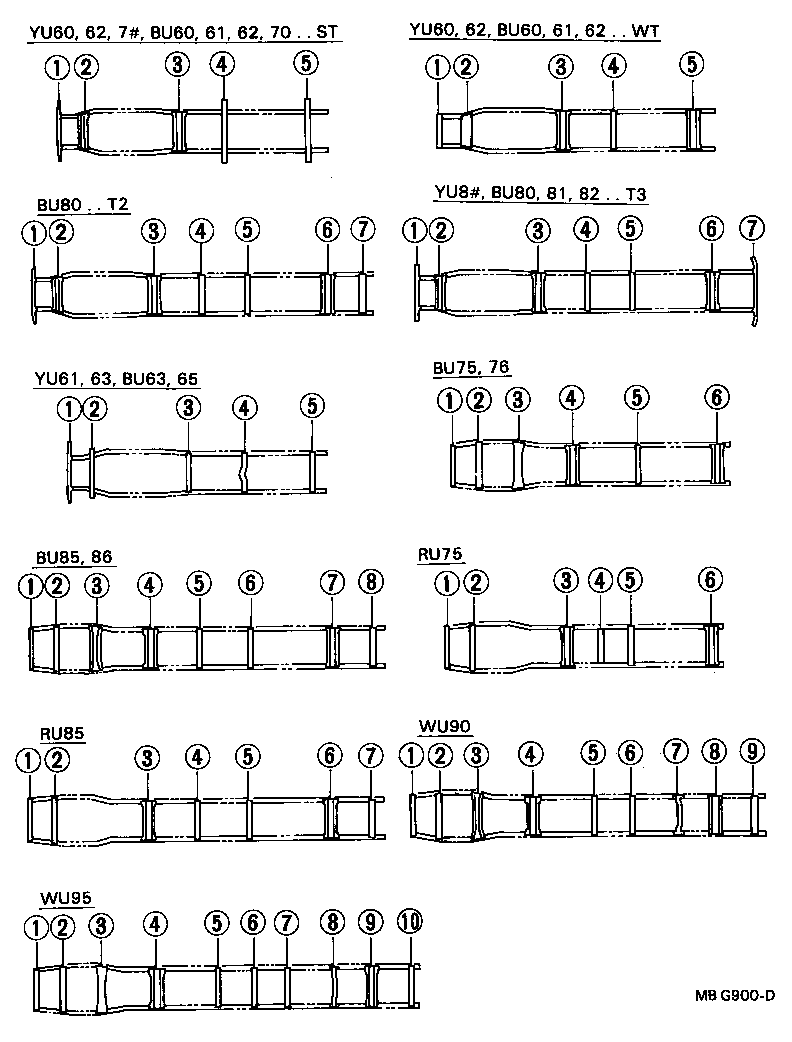

Click highlighted areas on diagram

diagram 51100F 51202 51203 51204 51205 51206 51207 51208 51209 51210 51211
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51001-3B630

BU85..T3..(CBU,IV3)

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-36120

BU75,76,85,86

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36120

BU75,76,85,86

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51025-36030

BU75,76,85,86

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51203-36270

BU85

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51204-36120

BU85,86

 1
51207 - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51251-36110

BU85

 1
51208 - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51207-36010

BU85

 1
51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8
51209-36200

BU85,86

 1

(8409- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(8409- )

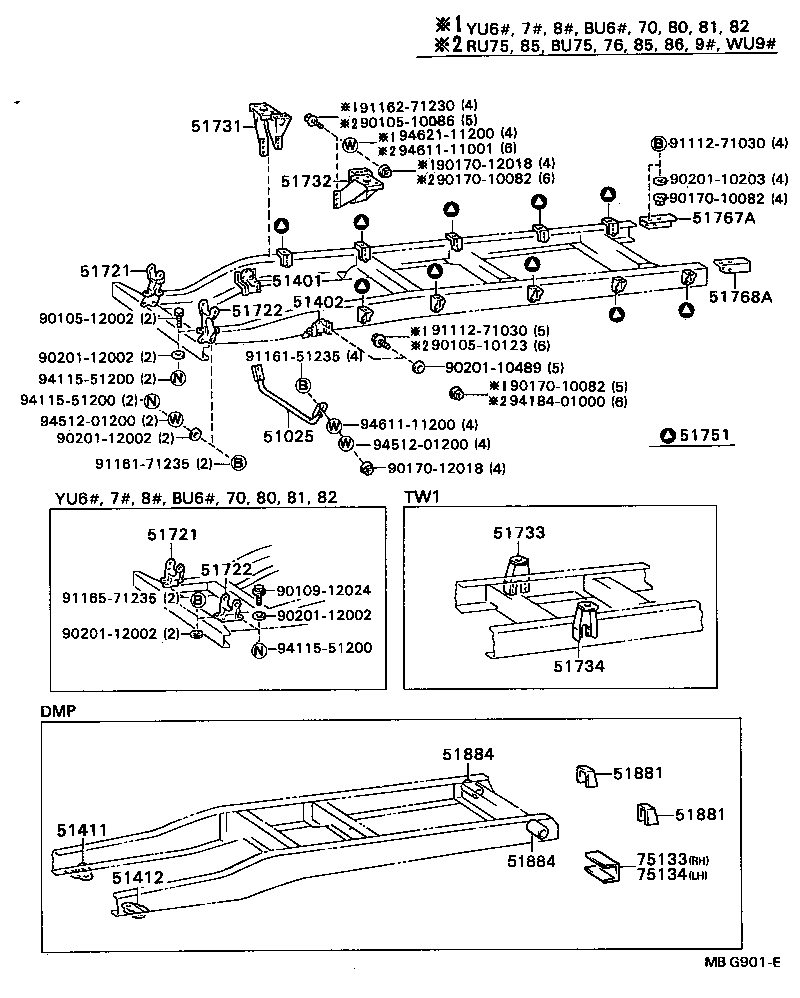

Click highlighted areas on diagram

diagram 51025 51401 51402 51411 51412 51721 51721 51722 51722 51731 51732 51733 51734 51751 51767A 51768A 51881 51881 51884 51884 75133 75134 9010510086 9010510123 9010512002 9010912024 9017010082 9017010082 9017010082 9017012018 9017012018 9020110203 9020110489 9020112002 9020112002 9020112002 9020112002 9111271030 9111271030 9116151235 9116171235 9116271230 9116571235 9411551200 9411551200 9411551200 9418401000 9451201200 9451201200 9461111001 9461111200 9462111200
Part # Description Qty Price
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-36120

BU75,76,85,86

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-36120

BU75,76,85,86

 1
51721 - BRACKET, CAB FRONT MOUNTING, RH
51711-36010

BU75,76,85,86

 1
51721 - BRACKET, CAB FRONT MOUNTING, RH
51711-36010

BU75,76,85,86

 1
51722 - BRACKET, CAB FRONT MOUNTING, LH
51712-36010

BU75,76,85,86

 1
51722 - BRACKET, CAB FRONT MOUNTING, LH
51712-36010

BU75,76,85,86

 1
51731 - BRACKET, CAB REAR MOUNTING, RH
51731-36090

BU75,76,85,86

 1
51732 - BRACKET, CAB REAR MOUNTING, LH
51732-36090

BU75,76,85,86

 1
Common parts
90105-10086
90105-10123
90105-12002
90109-12024
90170-10082
90170-12018
90201-10203
90201-10489
90201-12002
91112-71030
91161-51235
91161-71235
91162-71230
91165-71235
94115-51200
94184-01000
94512-01200
94611-11001
94611-11200
94621-11200
