BU80R-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )13B..BU85..GEN ; (8409- )B,11B,13B..BU6#,7#,80,81,82,86..ARL,GEN,GHD,

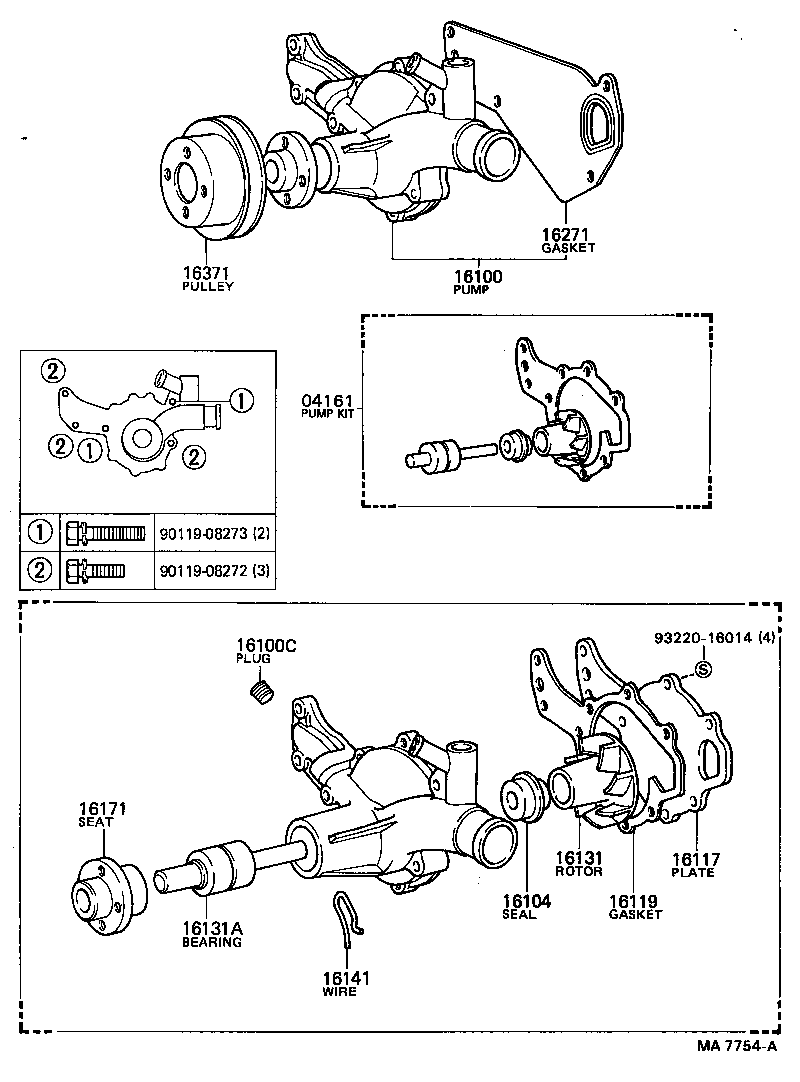

Click highlighted areas on diagram

diagram 04161 16100 16100C 16104 16117 16119 16131 16131A 16141 16171 16271 16371 9011908272 9011908273 9322016014
Part # Description Qty Price
04161 - PUMP KIT, WATER
04161-56040

B,11B,13B..BU60,63,70,76,80,81,82,86

 1
16100 - PUMP ASSY, ENGINE WATER
16100-59075

B,11B,13B..BU60,63,70,76,80,81,82,86

 1
16100-59076

B,11B,13B..BU60,63,70,76,80,81,82,86

 1
16100C - PLUG, W/HEAD TAPER SCREW
15184-15010

B,11B,13B..BU6#,7#,8#

 1
16104 - SEAL SET, WATER PUMP
16104-15020

B,11B,13B..BU6#,7#,8#

 1
16104-41111

B,11B,13B..BU60,63,70,76,80,81,82

 1
16117 - PLATE, WATER PUMP
16117-56040

B,11B,13B..BU6#,7#,8#

 1
16119 - GASKET, WATER PUMP BODY
16119-56040

B,11B,13B..BU6#,7#,8#

 1
16131 - ROTOR, WATER PUMP
16131-56030

B,11B,13B..BU6#,7#,8#

 1
16131A - BEARING, WATER PUMP
90369-30028

B,11B,13B..BU60,63,70,76,80,81,82,86

 1
90369-30060

B,11B,13B..BU6#,7#,8#

 1
16141 - WIRE, WATER PUMP BEARING RETAINING
16141-60010

B,11B,13B..BU6#,7#,8#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-56010

B,11B,13B..BU60,63,70,76,80,81,82,86

 1
16271 - GASKET, WATER PUMP
16271-56020

B,11B,13B..BU6#,7#,8#

 1
16371 - PULLEY, FAN
16371-56021

B,11B,13B..BU60,63,70,76,80,81,82,86

 1
Common parts
90119-08272
90119-08273
93220-16014
