BU75L-MDDT3 (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

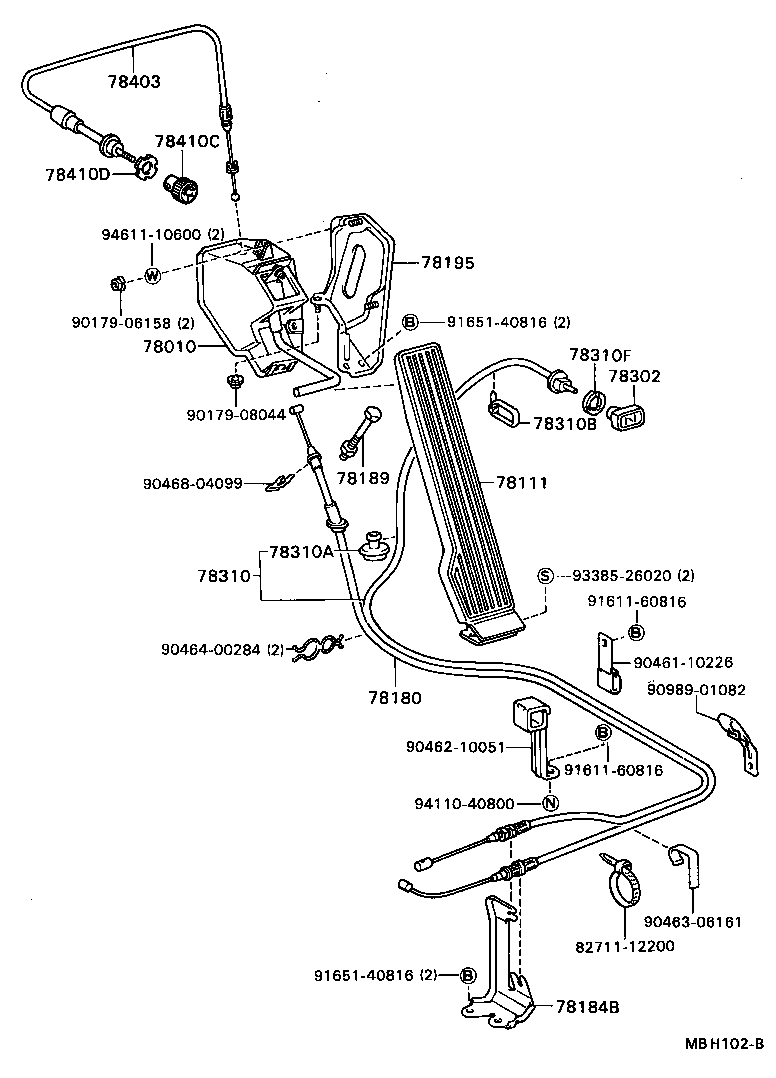

(8409- )BU60,70,75,80..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78202-95401 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-95400 |
BU75,76,85..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95474 |
BU75..LHD |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-95403 |
BU75,76,85..LHD |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-08523 |
BU60,63,70,75,80 |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-08523 |
BU60,63,70,75,80 |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-95401 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 78403 - CABLE SUB-ASSY, THROTTLE CONTROL | ||||
| 78404-95012 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 78404-95401 |
BU60,61,62,7#,80,81,85..LHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-22010 |
BU6#,7#,8# |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-22010 |
BU6#,7#,8# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
BU6#,7#,8# |
1 | ||
| 78413-95J00 |
BU6#,7#,8# |
1 | ||
| Common parts | ||||
| 78313-95A00 | ||||
| 82711-12200 | ||||
| 90179-06158 | ||||
| 90179-08044 | ||||
| 90461-08226 | ||||
| 90461-10226 | ||||
| 90462-10051 | ||||
| 90463-10032 | ||||
| 90464-00389 | ||||
| 90468-04099 | ||||
| 90950-01056 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 93385-26020 | ||||
| 94110-40800 | ||||
| 94611-10600 | ||||

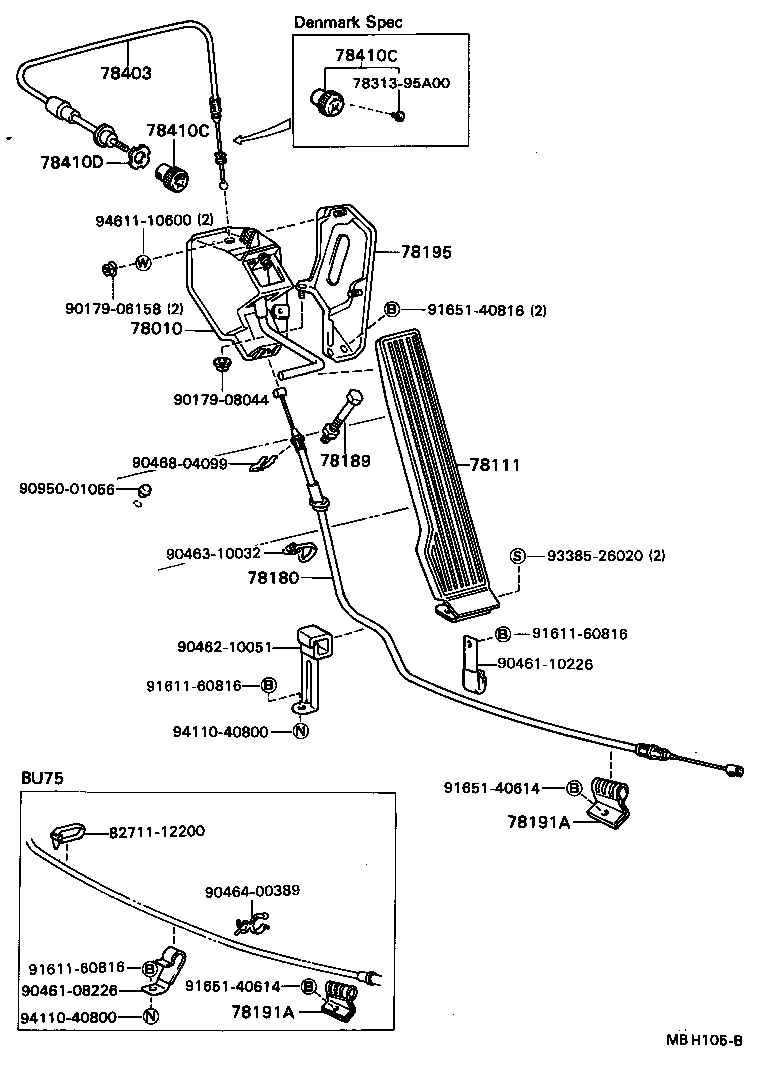

(8409- )YU6#,7#,8#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 90179-06158 | ||||
| 90179-08044 | ||||
| 90461-10226 | ||||
| 90462-10051 | ||||
| 90463-06161 | ||||
| 90464-00284 | ||||
| 90468-04099 | ||||
| 90989-01082 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
| 93385-26020 | ||||
| 94110-40800 | ||||
| 94611-10600 | ||||
