BU75L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU75,76,85..LHD

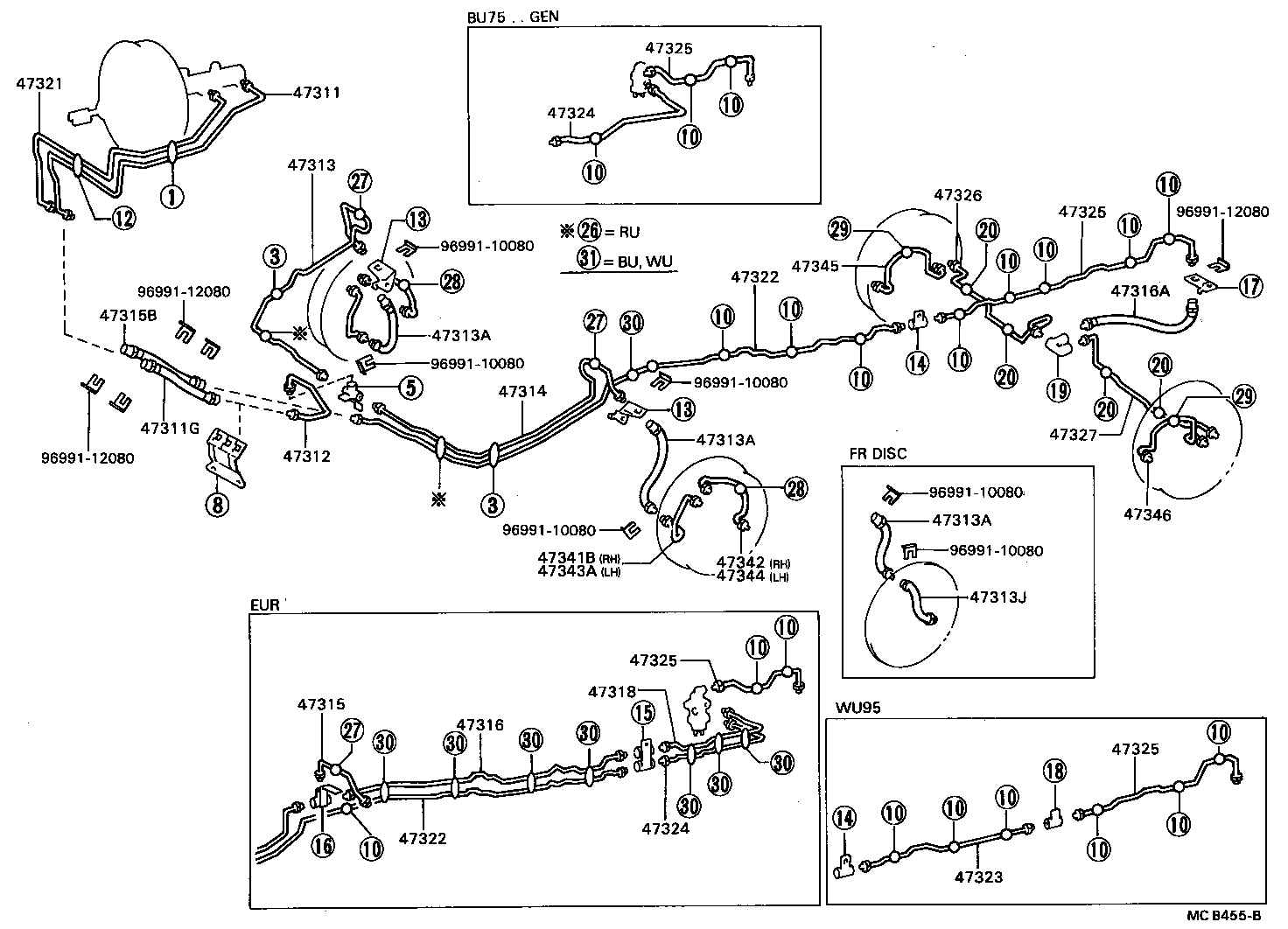

Click highlighted areas on diagram

diagram 47311 47311G 47312 47313 47313A 47313A 47313A 47313J 47314 47315 47315B 47316 47316A 47318 47321 47322 47322 47323 47324 47324 47325 47325 47325 47325 47326 47327 47341B 47342 47343A 47344 47345 47346 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699112080 9699112080 9699112080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36290

BU75,76..LHD;BU85..LHD..GEN

 1
47311-36290

BU75,85..LHD

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96932-34305

BU75,76,85,86

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-36240

BU75,76,85..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36140

BU75,76,85

 1
47313-36180

BU75,76,85,86

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-34005

BU75,76,86

FR DISC

 2
90947-02471

BU75,76,85,86

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-34005

BU75,76,86

FR DISC

 2
90947-02471

BU75,76,85,86

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-34005

BU75,76,86

FR DISC

 2
90947-02471

BU75,76,85,86

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02431

BU60,61,75,76,86..(T3,TW1)..WT

 2
90947-02521

BU60,61,75,76,86..(T3,TW1)..WT

 2
90947-02431

BU60,61,75,76..T3..WT..(ARL,GEN)

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-36250

BU75,76,85,86..ARL,GEN

 1
47314-36200

BU75,76,85..ARL,GEN

 1
47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96932-34305

BU75,76,85,86

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96912-34105

BU75,76,85,86

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36190

BU75,76..LHD

 1
47321-36190

BU75,76..LHD;BU85..LHD..GEN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36180

BU75,76,85..LHD

 1
47322-36270

BU75,76,85..LHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36180

BU75,76,85..LHD

 1
47322-36270

BU75,76,85..LHD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-36070

BU75..LHD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-36070

BU75..LHD

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU75,76..GEN

 1
47325-36150

BU75..LHD..GEN

W/LSPV

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU75,76..GEN

 1
47325-36150

BU75..LHD..GEN

W/LSPV

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU75,76..GEN

 1
47325-36150

BU75..LHD..GEN

W/LSPV

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU75,76..GEN

 1
47325-36150

BU75..LHD..GEN

W/LSPV

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-36140

BU60,61,75,76,80,81,86..(T3,TW1)..WT..(ARL,EUR,GEN,SA)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36140

BU60,61,75,76,80,81,86..(T3,TW1)..WT..(ARL,EUR,GEN,SA)

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-36090

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36030

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-36090

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36030

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36040

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 2
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36040

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 1
Common parts
96991-10080
96991-12080

(8409- )

Click highlighted areas on diagram

diagram 47311B 47311B 47312E 47321D 47321D 47322B 47323A 47351 47351 47352 47352 47353 47354 47354 47381 47381 47381 9017010082 9017908146 9017908146 9020110282 9046106112 9046106112 9046108779 9046110616 9046206017 9048008343 9094901005 9094901006 9094901034 9094901035 9094901157 9094901159 9094901160 9094901164 9094901164 9094901164 9094901165 9094901165 9094901188 9094901190 9111271030 9161160812 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160835 9161540814 9161560825 9161561040 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040820
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12006

BU75,76,85,86

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12006

BU75,76,85,86

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12014

BU6#,7#,8#..ARL,GEN,GHD,SA

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12014

BU6#,7#,8#..ARL,GEN,GHD,SA

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-10125

BU61,7#,81,86..ARL,EUR,GEN,SA;BU60,80..(T1,T3,TW1)..(ARL,GEN)

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36150

BU75,76,85,86

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36150

BU75,76,85,86

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36150

BU75,76,85,86

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36150

BU75,76,85,86

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-36140

BU75,76,85,86

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-36060

BU75,76,85,86

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-36060

BU75,76,85,86

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU75,76,85,86

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU75,76,85,86

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU75,76,85,86

 2
Common parts
90170-10082
90179-08146
90201-10282
90461-06112
90461-08779
90461-10616
90462-06017
90480-08343
90949-01005
90949-01006
90949-01034
90949-01035
90949-01157
90949-01159
90949-01160
90949-01164
90949-01165
90949-01188
90949-01190
91112-71030
91611-60812
91611-60816
91611-60820
91611-60835
91615-40814
91615-60825
91615-61040
91651-60614
94110-40800
94110-40820

(8409- )

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9017908146 9017908146 9017908146 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9165140820 9411041000 9414140800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

BU60,75,80..LHD..WT..GEN

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-36050

BU60,75,80..LHD..WT..GEN

 1
47920 - SPRING ASSY, LOAD SENSING
47920-36050

BU60,75,80..LHD..WT..GEN

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BU60,75,80..LHD..WT..GEN

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BU60,75,80..LHD..WT..GEN

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

BU60,75,80..LHD..WT..GEN

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BU60,75,80..LHD..WT..GEN

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BU60,75,80..LHD..WT..GEN

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-36060

BU60,75,80..LHD..WT..GEN

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36050

BU60,75,80..LHD..WT..GEN

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

BU60,75,80..LHD..WT..GEN

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

BU60,75,80..LHD..WT..GEN

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BU60,75,80..LHD..WT..GEN

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BU60,75,80..LHD..WT..GEN

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

BU60,75,80..LHD..WT..GEN

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

BU60,75,80..LHD..WT..GEN

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

BU60,75,80..LHD..WT..GEN

 1
Common parts
90179-08146
90201-23360
91131-50840
91611-60816
91651-40820
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

(8409- )

Click highlighted areas on diagram

diagram 47910A 47910A 47910B 47910B 47910G 47931 47931 9017908146 9046108602 9046110629 9161160820 9165140816 9165140820 9165160614
Part # Description Qty Price
47931 - BRACKET, LOAD SENSING VALVE
47931-36060

BU60,75,80..LHD..WT..GEN

 1
47931 - BRACKET, LOAD SENSING VALVE
47931-36060

BU60,75,80..LHD..WT..GEN

 1
Common parts
90179-08146
90461-08602
90461-10629
91611-60820
91651-40816
91651-40820
91651-60614

(8409- )YU60,62,7#..LHD

Click highlighted areas on diagram

diagram 47311 47311G 47312 47313 47313A 47313A 47313A 47313J 47314 47315B 47316A 47321 47322 47322 47324 47324 47325 47325 47325 47326 47327 47341B 47342 47343A 47344 47345 47346 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699112080 9699112080 9699112080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36290

BU75,76..LHD;BU85..LHD..GEN

 1
47311-36290

BU75,85..LHD

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96932-34305

BU75,76,85,86

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-36240

BU75,76,85..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36140

BU75,76,85

 1
47313-36180

BU75,76,85,86

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-34005

BU75,76,86

FR DISC

 2
90947-02471

BU75,76,85,86

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-34005

BU75,76,86

FR DISC

 2
90947-02471

BU75,76,85,86

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-34005

BU75,76,86

FR DISC

 2
90947-02471

BU75,76,85,86

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02431

BU60,61,75,76,86..(T3,TW1)..WT

 2
90947-02521

BU60,61,75,76,86..(T3,TW1)..WT

 2
90947-02431

BU60,61,75,76..T3..WT..(ARL,GEN)

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-36250

BU75,76,85,86..ARL,GEN

 1
47314-36200

BU75,76,85..ARL,GEN

 1
47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96932-34305

BU75,76,85,86

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96912-34105

BU75,76,85,86

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36190

BU75,76..LHD

 1
47321-36190

BU75,76..LHD;BU85..LHD..GEN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36180

BU75,76,85..LHD

 1
47322-36270

BU75,76,85..LHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36180

BU75,76,85..LHD

 1
47322-36270

BU75,76,85..LHD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-36070

BU75..LHD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-36070

BU75..LHD

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU75,76..GEN

 1
47325-36150

BU75..LHD..GEN

W/LSPV

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU75,76..GEN

 1
47325-36150

BU75..LHD..GEN

W/LSPV

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU75,76..GEN

 1
47325-36150

BU75..LHD..GEN

W/LSPV

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-36140

BU60,61,75,76,80,81,86..(T3,TW1)..WT..(ARL,EUR,GEN,SA)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36140

BU60,61,75,76,80,81,86..(T3,TW1)..WT..(ARL,EUR,GEN,SA)

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-36090

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36030

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-36090

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36030

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36040

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 2
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36040

BU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT

 1
Common parts
96991-10080
96991-12080

(8409- )

Click highlighted areas on diagram

diagram 47311B 47311B 47312E 47321D 47321D 47322B 47323A 47351 47351 47352 47352 47353 47354 47354 47381 47381 47381 9017010082 9017908146 9017908146 9020110282 9046106112 9046106112 9046108779 9046110616 9046206017 9048008343 9094901005 9094901006 9094901034 9094901035 9094901157 9094901159 9094901160 9094901164 9094901164 9094901164 9094901165 9094901165 9094901188 9094901190 9111271030 9161160812 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160835 9161540814 9161560825 9161561040 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040820
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12006

BU75,76,85,86

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12006

BU75,76,85,86

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12014

BU6#,7#,8#..ARL,GEN,GHD,SA

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12014

BU6#,7#,8#..ARL,GEN,GHD,SA

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-10125

BU61,7#,81,86..ARL,EUR,GEN,SA;BU60,80..(T1,T3,TW1)..(ARL,GEN)

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36150

BU75,76,85,86

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36150

BU75,76,85,86

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36150

BU75,76,85,86

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36150

BU75,76,85,86

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-36140

BU75,76,85,86

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-36060

BU75,76,85,86

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-36060

BU75,76,85,86

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU75,76,85,86

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU75,76,85,86

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU75,76,85,86

 2
Common parts
90170-10082
90179-08146
90201-10282
90461-06112
90461-08779
90461-10616
90462-06017
90480-08343
90949-01005
90949-01006
90949-01034
90949-01035
90949-01157
90949-01159
90949-01160
90949-01164
90949-01165
90949-01188
90949-01190
91112-71030
91611-60812
91611-60816
91611-60820
91611-60835
91615-40814
91615-60825
91615-61040
91651-60614
94110-40800
94110-40820

(8409- )

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9017908146 9017908146 9017908146 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9165140820 9411041000 9414140800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

BU60,75,80..LHD..WT..GEN

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-36050

BU60,75,80..LHD..WT..GEN

 1
47920 - SPRING ASSY, LOAD SENSING
47920-36050

BU60,75,80..LHD..WT..GEN

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BU60,75,80..LHD..WT..GEN

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BU60,75,80..LHD..WT..GEN

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

BU60,75,80..LHD..WT..GEN

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BU60,75,80..LHD..WT..GEN

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BU60,75,80..LHD..WT..GEN

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-36060

BU60,75,80..LHD..WT..GEN

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36050

BU60,75,80..LHD..WT..GEN

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

BU60,75,80..LHD..WT..GEN

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

BU60,75,80..LHD..WT..GEN

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BU60,75,80..LHD..WT..GEN

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BU60,75,80..LHD..WT..GEN

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

BU60,75,80..LHD..WT..GEN

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

BU60,75,80..LHD..WT..GEN

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

BU60,75,80..LHD..WT..GEN

 1
Common parts
90179-08146
90201-23360
91131-50840
91611-60816
91651-40820
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

(8409- )

Click highlighted areas on diagram

diagram 47910A 47910A 47910B 47910B 47910G 47931 47931 9017908146 9046108602 9046110629 9161160820 9165140816 9165140820 9165160614
Part # Description Qty Price
47931 - BRACKET, LOAD SENSING VALVE
47931-36060

BU60,75,80..LHD..WT..GEN

 1
47931 - BRACKET, LOAD SENSING VALVE
47931-36060

BU60,75,80..LHD..WT..GEN

 1
Common parts
90179-08146
90461-08602
90461-10629
91611-60820
91651-40816
91651-40820
91651-60614
