BU70LB-MD (1984)
Toyota Dyna
(8409- )LHD

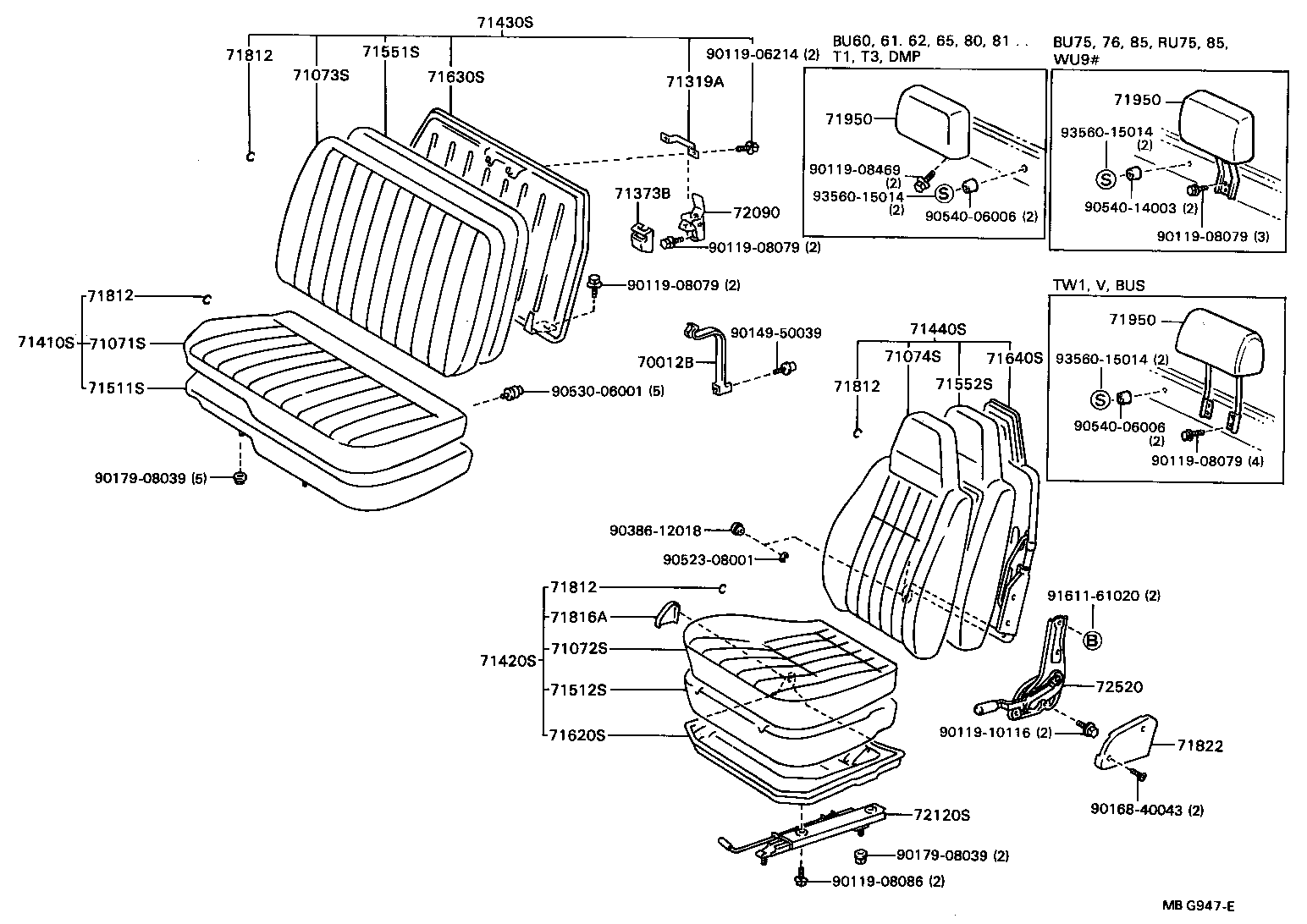

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58930-9570003 |
BU6#,7#,8# GRAY,SHADOW GRAY |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-9544103 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71071-9545703 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71071-9545703 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71071-95A0304 |
BU60,61,62,70,80,81..LHD FB,BLUE,BLUE |
1 | ||
| 71071-9548903 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-9544803 |
BU60,61,62,7#,80,81,85..LHD..GEN VL,GRAY,SHADOW GRAY |
1 | ||
| 71072-9547104 |
BU60,61,62,7#,80,81,85..LHD..GEN FB,BLUE,BLUE |
1 | ||
| 71072-9545903 |
BU60,61,62,65,7#,80,81,85..LHD..GEN VL,GRAY,SHADOW GRAY |
1 | ||
| 71072-9545903 |
BU60,61,62,7#,80,81,85..LHD..GEN VL,GRAY,SHADOW GRAY |
1 | ||
| 71072-95B1503 |
BU60,61,62,65,7#,80,81,85..LHD..GEN VL,GRAY,SHADOW GRAY |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71074-95B0803 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71074-9545903 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71074-95B0803 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71073-9547204 |
BU60,61,62,70,80,81..LHD FB,BLUE,BLUE |
1 | ||
| 71074-95B5703 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-9261003 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71073-95A0603 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71074-95A1204 |
BU70..BUS;BU60..LHD..TW1 FB,BLUE,BLUE |
1 | ||
| 71073-95A0703 |
BU70..BUS;BU60..LHD..TW1 VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY |
1 | ||
| 71074-95A3303 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71074-95A3403 |
BU70..BUS;BU60..LHD..TW1 VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY |
1 | ||
| 71319A - STRIKER, FRONT SEAT BACK | ||||
| 71319-95400 |
BU60,61,62,63,70,80,81,82 |
1 | ||
| 71373B - COVER, FRONT SEAT BACK LOCK | ||||
| 71373-9540003 |
BU6#,7#,8#..CBU,IV3 GRAY,SHADOW GRAY |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-9542703 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71410-9544303 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71410-9544303 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71410-95A5404 |
BU60,61,62,70,80,81..LHD FB,BLUE,BLUE |
1 | ||
| 71410-9548003 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95A1303 |
BU70;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71420-9260203 |
BU70;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71420-9545404 |
BU60,61,62,7#,80,81,85..LHD..GEN FB,BLUE,BLUE |
1 | ||
| 71420-95A2303 |
BU70;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71440-9542503 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71440-9547403 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71440-9547403 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71430-9545404 |
BU60,61,62,70,80,81..LHD FB,BLUE,BLUE |
1 | ||
| 71440-95B4303 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9261903 |
BU70..BUS;BU60..LHD..TW1 VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY |
1 | ||
| 71440-9261703 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71440-95A2203 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71440-95A2303 |
BU70..BUS;BU60..LHD..TW1 VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY |
1 | ||
| 71440-95A2404 |
BU70..BUS;BU60..LHD..TW1 FB,BLUE,BLUE |
1 | ||
| 71440-95A4403 |
BU70..BUS;BU60..LHD..TW1 VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY |
1 | ||
| 71440-95A4303 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-95400 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-95400 |
BU60,61,62,65,7#,80,81,85..LHD..GEN |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71552-95403 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95405 |
BU60,61,62,65,7#,80,81,85..LHD..GEN |
1 | ||
| 71551-95404 |
BU60,61,62,7#,80,81,85..LHD W/*HR=ASSISTANT |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71012-95412 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71014-95411 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-95412 |
BU60,61,62,7#,80,81,85..LHD W/*HR=ASSISTANT |
1 | ||
| 71160-95J06 |
BU60,61,62,65,7#,80,81,85..LHD..GEN |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BU6#,7#,8# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BU6#,7#,8# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BU6#,7#,8# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BU6#,7#,8# |
1 | ||
| 71816A - COVER, FRONT SEAT CUSHION HINGE, LH | ||||
| 71816-95J0003 |
BU60,61,62,65,7#,80,81,85..LHD GRAY,SHADOW GRAY |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71812-9540003 |
BU60,61,62,65,7#,80,81,85..LHD GRAY,SHADOW GRAY |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9260303 |
BU70;BU60..TW1 GRAY,GRAY |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9260303 |
BU70;BU60..TW1 GRAY,GRAY |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9260303 |
BU70;BU60..TW1 GRAY,GRAY |
1 | ||
| 72090 - LOCK ASSY, FRONT SEAT BACK | ||||
| 72090-9540003 |
BU6#,7#,8#..CBU,IV3 GRAY,SHADOW GRAY |
1 | ||
| 72090-95400 |
BU6#,7#,8#..CBU,IV3 |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-95408 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-9540203 |
BU60,61,62,65,7#,80,81,85..LHD GRAY,SHADOW GRAY |
1 | ||
| Common parts | ||||
| 90119-06214 | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-08469 | ||||
| 90119-10116 | ||||
| 90149-50039 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 90530-06001 | ||||
| 90540-06006 | ||||
| 90540-14003 | ||||
| 91611-61020 | ||||
| 93560-15014 | ||||
(8508- )
W/SUSPENSION SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08075 | ||||
| 90179-08039 | ||||
| 91611-60816 | ||||

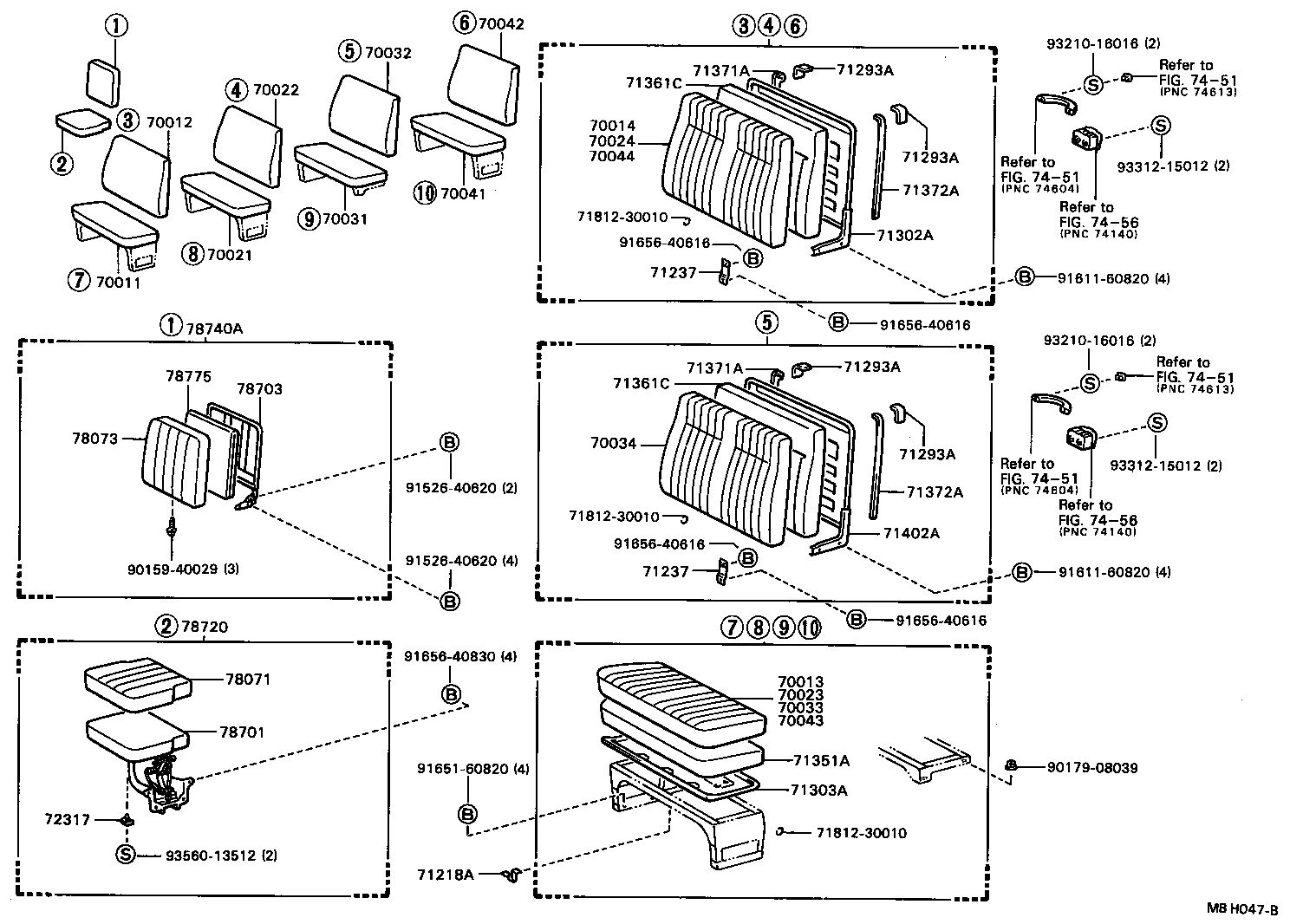

(8409- )BUS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

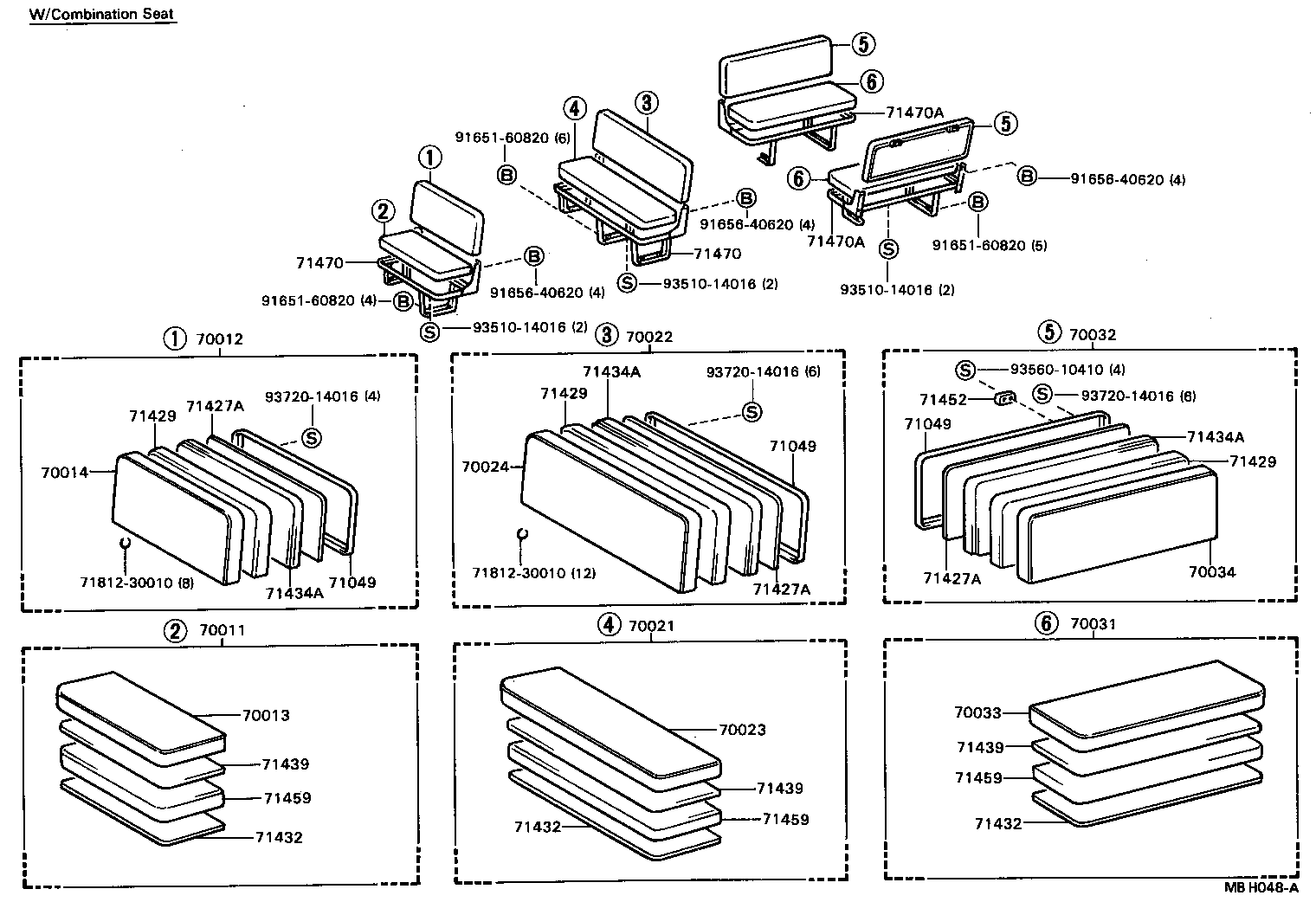

| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260804 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260603 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 79140-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260804 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79140-9260603 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79140-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79011-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260504 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79011-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79013-9260604 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260404 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 79240-9260704 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79140-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79140-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79021-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79021-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79021-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71092-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 71092-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 71092-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 79340-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79240-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79340-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79340-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79240-9260303 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 79031-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79031-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79031-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 79033-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79033-9260204 |
BU70..BUS FB,W/*CS,BLUE,BLUE |
1 | ||
| 79033-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70041 - CUSHION ASSY, NO.4 SEAT | ||||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70042 - BACK ASSY, NO.4 SEAT | ||||
| 79140-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79140-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70043 - COVER ASSY, NO.4 SEAT CUSHION | ||||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70044 - COVER ASSY, NO.4 SEAT BACK | ||||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 71218A - SPRING, PASSENGER SEAT LOCK | ||||
| 71218-90502 |
BU70..BUS |
4 | ||
| 71237 - BRACKET, REAR SEAT | ||||
| 79171-92601 |
BU70..BUS |
4 | ||
| 71237 - BRACKET, REAR SEAT | ||||
| 79171-92601 |
BU70..BUS |
4 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71293-90500 |
BU70..BUS |
16 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71293-90500 |
BU70..BUS |
16 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71293-90500 |
BU70..BUS |
16 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71293-90500 |
BU70..BUS |
16 | ||
| 71302A - FRAME SUB-ASSY, PASSENGER SEAT, NO.1 | ||||
| 71302-90740 |
BU70..BUS |
3 | ||
| 71303A - PANEL SUB-ASSY, PASSENGER SEAT CUSHION | ||||
| 71303-90504 |
BU70..BUS |
4 | ||
| 71351A - PAD, PASSENGER SEAT CUSHION | ||||
| 71351-90740 |
BU70..BUS |
4 | ||
| 71361C - PAD, PASSENGER SEAT BACK | ||||
| 71361-90502 |
BU70..BUS |
4 | ||
| 71361C - PAD, PASSENGER SEAT BACK | ||||
| 71361-90502 |
BU70..BUS |
4 | ||
| 71371A - PAD, PASSENGER SEAT BACK SAFETY SIDE, RH | ||||
| 71371-90501 |
BU70..BUS |
4 | ||
| 71371A - PAD, PASSENGER SEAT BACK SAFETY SIDE, RH | ||||
| 71371-90501 |
BU70..BUS |
4 | ||
| 71372A - PAD, PASSENGER SEAT BACK SAFETY SIDE, LH | ||||
| 71372-90501 |
BU70..BUS |
4 | ||
| 71372A - PAD, PASSENGER SEAT BACK SAFETY SIDE, LH | ||||
| 71372-90501 |
BU70..BUS |
4 | ||
| 71402A - FRAME SUB-ASSY, PASSENGER SEAT, NO.2 | ||||
| 71402-90741 |
BU70..BUS |
1 | ||
| 72317 - GROMMET, SUB SEAT CUSHION | ||||
| 72317-90500 |
BU70..BUS |
2 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
4 | ||
| 78071-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 78071-9260204 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 78073-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
4 | ||
| 78073-9260204 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 78701 - FRAME SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78070-92601 |
BU70..BUS |
1 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 72304-90518 |
BU70..BUS |
1 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
4 | ||
| 78720-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 78720-9260204 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 78740-9260204 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 78740-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
4 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 72362-90500 |
BU70..BUS |
1 | ||
| Common parts | ||||
| 71812-30010 | ||||
| 90159-40029 | ||||
| 90179-08039 | ||||
| 91526-40620 | ||||
| 91611-60820 | ||||
| 91651-60820 | ||||
| 91656-40616 | ||||
| 91656-40830 | ||||
| 93210-16016 | ||||
| 93312-15012 | ||||
| 93560-13512 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
(8409- )BUS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260804 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260603 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 79140-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260804 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79140-9260603 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79140-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79011-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260504 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79011-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79013-9260604 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260404 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 79240-9260704 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79140-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79140-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79021-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79021-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79021-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71092-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 71092-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 71092-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 79340-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79240-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79340-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79340-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79240-9260303 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 79031-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79031-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79031-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 79033-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79033-9260204 |
BU70..BUS FB,W/*CS,BLUE,BLUE |
1 | ||
| 79033-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 71049 - FRAME SUB-ASSY, REAR SEAT BACK, NO.5 | ||||
| 71049-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71049-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71049-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71049 - FRAME SUB-ASSY, REAR SEAT BACK, NO.5 | ||||
| 71049-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71049-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71049-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71049 - FRAME SUB-ASSY, REAR SEAT BACK, NO.5 | ||||
| 71049-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71049-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71049-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71427A - BOARD, REAR SEAT BACK, NO.5 | ||||
| 71427-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71427-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71427-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71427A - BOARD, REAR SEAT BACK, NO.5 | ||||
| 71427-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71427-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71427-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71427A - BOARD, REAR SEAT BACK, NO.5 | ||||
| 71427-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71427-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71427-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71429 - CUSHION, REAR SEAT BACK, A NO.5 | ||||
| 71429-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71429-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71429-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71429 - CUSHION, REAR SEAT BACK, A NO.5 | ||||
| 71429-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71429-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71429-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71429 - CUSHION, REAR SEAT BACK, A NO.5 | ||||
| 71429-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71429-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71429-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71432 - BOARD, REAR SEAT CUSHION, NO.5 | ||||
| 71432-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71432-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71432-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71432 - BOARD, REAR SEAT CUSHION, NO.5 | ||||
| 71432-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71432-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71432-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71432 - BOARD, REAR SEAT CUSHION, NO.5 | ||||
| 71432-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71432-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71432-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71434A - CUSHION, REAR SEAT BACK, B NO.5 | ||||
| 71434-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71434-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71434-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71434A - CUSHION, REAR SEAT BACK, B NO.5 | ||||
| 71434-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71434-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71434-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71434A - CUSHION, REAR SEAT BACK, B NO.5 | ||||
| 71434-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71434-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71434-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71439 - CUSHION, REAR SEET CUSHION, A NO.5 | ||||
| 71439-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71439-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71439-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71439 - CUSHION, REAR SEET CUSHION, A NO.5 | ||||
| 71439-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71439-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71439-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71439 - CUSHION, REAR SEET CUSHION, A NO.5 | ||||
| 71439-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71439-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71439-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71452 - STOP, REAR SEAT BACK | ||||
| 71452-92120 |
BU70..BUS |
4 | ||
| 71459 - CUSHION, REAR SEAT CUSHION, B NO.5 | ||||
| 71459-92123 |
BU70..BUS N0.1 SEAT |
1 | ||
| 71459-92122 |
BU70..BUS N0.3 SEAT |
2 | ||
| 71459-92124 |
BU70..BUS N0.2 SEAT |
1 | ||
| 71459 - CUSHION, REAR SEAT CUSHION, B NO.5 | ||||
| 71459-92123 |
BU70..BUS N0.1 SEAT |
1 | ||
| 71459-92122 |
BU70..BUS N0.3 SEAT |
2 | ||
| 71459-92124 |
BU70..BUS N0.2 SEAT |
1 | ||
| 71459 - CUSHION, REAR SEAT CUSHION, B NO.5 | ||||
| 71459-92123 |
BU70..BUS N0.1 SEAT |
1 | ||
| 71459-92122 |
BU70..BUS N0.3 SEAT |
2 | ||
| 71459-92124 |
BU70..BUS N0.2 SEAT |
1 | ||
| 71470 - FRAME ASSY, REAR SEAT CUSHION, FRONT | ||||
| 79102-9260001 |
BU70..BUS FR,BLACK,BLACK |
1 | ||
| 79202-9260001 |
BU70..BUS RR,BLACK,BLACK |
1 | ||
| 71470 - FRAME ASSY, REAR SEAT CUSHION, FRONT | ||||
| 79102-9260001 |
BU70..BUS FR,BLACK,BLACK |
1 | ||
| 79202-9260001 |
BU70..BUS RR,BLACK,BLACK |
1 | ||
| 71470A - FRAME ASSY, REAR SEAT CUSHION, REAR | ||||
| 79302-9260001 |
BU70..BUS LH,BLACK,BLACK |
1 | ||
| 79301-9260001 |
BU70..BUS RH,BLACK,BLACK |
1 | ||
| 71470A - FRAME ASSY, REAR SEAT CUSHION, REAR | ||||
| 79302-9260001 |
BU70..BUS LH,BLACK,BLACK |
1 | ||
| 79301-9260001 |
BU70..BUS RH,BLACK,BLACK |
1 | ||
| Common parts | ||||
| 71812-30010 | ||||
| 91651-60820 | ||||
| 91656-40620 | ||||
| 93510-14016 | ||||
| 93560-10410 | ||||
| 93720-14016 | ||||
(8409- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58930-9570003 |
BU6#,7#,8# GRAY,SHADOW GRAY |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-9544103 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71071-9545703 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71071-9545703 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71071-95A0304 |
BU60,61,62,70,80,81..LHD FB,BLUE,BLUE |
1 | ||
| 71071-9548903 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-9544803 |
BU60,61,62,7#,80,81,85..LHD..GEN VL,GRAY,SHADOW GRAY |
1 | ||
| 71072-9547104 |
BU60,61,62,7#,80,81,85..LHD..GEN FB,BLUE,BLUE |
1 | ||
| 71072-9545903 |
BU60,61,62,65,7#,80,81,85..LHD..GEN VL,GRAY,SHADOW GRAY |
1 | ||
| 71072-9545903 |
BU60,61,62,7#,80,81,85..LHD..GEN VL,GRAY,SHADOW GRAY |
1 | ||
| 71072-95B1503 |
BU60,61,62,65,7#,80,81,85..LHD..GEN VL,GRAY,SHADOW GRAY |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71074-95B0803 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71074-9545903 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71074-95B0803 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71073-9547204 |
BU60,61,62,70,80,81..LHD FB,BLUE,BLUE |
1 | ||
| 71074-95B5703 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-9261003 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71073-95A0603 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71074-95A1204 |
BU70..BUS;BU60..LHD..TW1 FB,BLUE,BLUE |
1 | ||
| 71073-95A0703 |
BU70..BUS;BU60..LHD..TW1 VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY |
1 | ||
| 71074-95A3303 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71074-95A3403 |
BU70..BUS;BU60..LHD..TW1 VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY |
1 | ||
| 71319A - STRIKER, FRONT SEAT BACK | ||||
| 71319-95400 |
BU60,61,62,63,70,80,81,82 |
1 | ||
| 71373B - COVER, FRONT SEAT BACK LOCK | ||||
| 71373-9540003 |
BU6#,7#,8#..CBU,IV3 GRAY,SHADOW GRAY |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-9542703 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71410-9544303 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71410-9544303 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71410-95A5404 |
BU60,61,62,70,80,81..LHD FB,BLUE,BLUE |
1 | ||
| 71410-9548003 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95A1303 |
BU70;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71420-9260203 |
BU70;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71420-9545404 |
BU60,61,62,7#,80,81,85..LHD..GEN FB,BLUE,BLUE |
1 | ||
| 71420-95A2303 |
BU70;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71440-9542503 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71440-9547403 |
BU60,61,62,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71440-9547403 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71430-9545404 |
BU60,61,62,70,80,81..LHD FB,BLUE,BLUE |
1 | ||
| 71440-95B4303 |
BU60,61,62,65,70,80,81..LHD VL,GRAY,SHADOW GRAY |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9261903 |
BU70..BUS;BU60..LHD..TW1 VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY |
1 | ||
| 71440-9261703 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71440-95A2203 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71440-95A2303 |
BU70..BUS;BU60..LHD..TW1 VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY |
1 | ||
| 71440-95A2404 |
BU70..BUS;BU60..LHD..TW1 FB,BLUE,BLUE |
1 | ||
| 71440-95A4403 |
BU70..BUS;BU60..LHD..TW1 VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY |
1 | ||
| 71440-95A4303 |
BU70..BUS;BU60..LHD..TW1 VL,GRAY,SHADOW GRAY |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-95400 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-95400 |
BU60,61,62,65,7#,80,81,85..LHD..GEN |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71552-95403 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95405 |
BU60,61,62,65,7#,80,81,85..LHD..GEN |
1 | ||
| 71551-95404 |
BU60,61,62,7#,80,81,85..LHD W/*HR=ASSISTANT |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71012-95412 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71014-95411 |
BU60,61,62,65,70,80,81..LHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-95412 |
BU60,61,62,7#,80,81,85..LHD W/*HR=ASSISTANT |
1 | ||
| 71160-95J06 |
BU60,61,62,65,7#,80,81,85..LHD..GEN |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BU6#,7#,8# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BU6#,7#,8# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BU6#,7#,8# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BU6#,7#,8# |
1 | ||
| 71816A - COVER, FRONT SEAT CUSHION HINGE, LH | ||||
| 71816-95J0003 |
BU60,61,62,65,7#,80,81,85..LHD GRAY,SHADOW GRAY |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71812-9540003 |
BU60,61,62,65,7#,80,81,85..LHD GRAY,SHADOW GRAY |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9260303 |
BU70;BU60..TW1 GRAY,GRAY |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9260303 |
BU70;BU60..TW1 GRAY,GRAY |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9260303 |
BU70;BU60..TW1 GRAY,GRAY |
1 | ||
| 72090 - LOCK ASSY, FRONT SEAT BACK | ||||
| 72090-9540003 |
BU6#,7#,8#..CBU,IV3 GRAY,SHADOW GRAY |
1 | ||
| 72090-95400 |
BU6#,7#,8#..CBU,IV3 |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-95408 |
BU60,61,62,65,7#,80,81,85..LHD |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-9540203 |
BU60,61,62,65,7#,80,81,85..LHD GRAY,SHADOW GRAY |
1 | ||
| Common parts | ||||
| 90119-06214 | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-08469 | ||||
| 90119-10116 | ||||
| 90149-50039 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 90530-06001 | ||||
| 90540-06006 | ||||
| 90540-14003 | ||||
| 91611-61020 | ||||
| 93560-15014 | ||||
(8508- )
W/SUSPENSION SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08075 | ||||
| 90179-08039 | ||||
| 91611-60816 | ||||
(8409- )BUS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260804 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260603 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 79140-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260804 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79140-9260603 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79140-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79011-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260504 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79011-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79013-9260604 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260404 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 79240-9260704 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79140-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79140-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79021-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79021-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79021-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71092-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 71092-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 71092-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 79340-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79240-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79340-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79340-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79240-9260303 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 79031-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79031-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79031-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 79033-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79033-9260204 |
BU70..BUS FB,W/*CS,BLUE,BLUE |
1 | ||
| 79033-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70041 - CUSHION ASSY, NO.4 SEAT | ||||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70042 - BACK ASSY, NO.4 SEAT | ||||
| 79140-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79140-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70043 - COVER ASSY, NO.4 SEAT CUSHION | ||||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70044 - COVER ASSY, NO.4 SEAT BACK | ||||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 71218A - SPRING, PASSENGER SEAT LOCK | ||||
| 71218-90502 |
BU70..BUS |
4 | ||
| 71237 - BRACKET, REAR SEAT | ||||
| 79171-92601 |
BU70..BUS |
4 | ||
| 71237 - BRACKET, REAR SEAT | ||||
| 79171-92601 |
BU70..BUS |
4 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71293-90500 |
BU70..BUS |
16 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71293-90500 |
BU70..BUS |
16 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71293-90500 |
BU70..BUS |
16 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71293-90500 |
BU70..BUS |
16 | ||
| 71302A - FRAME SUB-ASSY, PASSENGER SEAT, NO.1 | ||||
| 71302-90740 |
BU70..BUS |
3 | ||
| 71303A - PANEL SUB-ASSY, PASSENGER SEAT CUSHION | ||||
| 71303-90504 |
BU70..BUS |
4 | ||
| 71351A - PAD, PASSENGER SEAT CUSHION | ||||
| 71351-90740 |
BU70..BUS |
4 | ||
| 71361C - PAD, PASSENGER SEAT BACK | ||||
| 71361-90502 |
BU70..BUS |
4 | ||
| 71361C - PAD, PASSENGER SEAT BACK | ||||
| 71361-90502 |
BU70..BUS |
4 | ||
| 71371A - PAD, PASSENGER SEAT BACK SAFETY SIDE, RH | ||||
| 71371-90501 |
BU70..BUS |
4 | ||
| 71371A - PAD, PASSENGER SEAT BACK SAFETY SIDE, RH | ||||
| 71371-90501 |
BU70..BUS |
4 | ||
| 71372A - PAD, PASSENGER SEAT BACK SAFETY SIDE, LH | ||||
| 71372-90501 |
BU70..BUS |
4 | ||
| 71372A - PAD, PASSENGER SEAT BACK SAFETY SIDE, LH | ||||
| 71372-90501 |
BU70..BUS |
4 | ||
| 71402A - FRAME SUB-ASSY, PASSENGER SEAT, NO.2 | ||||
| 71402-90741 |
BU70..BUS |
1 | ||
| 72317 - GROMMET, SUB SEAT CUSHION | ||||
| 72317-90500 |
BU70..BUS |
2 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
4 | ||
| 78071-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 78071-9260204 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 78073-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
4 | ||
| 78073-9260204 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 78701 - FRAME SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78070-92601 |
BU70..BUS |
1 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 72304-90518 |
BU70..BUS |
1 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
4 | ||
| 78720-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 78720-9260204 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 78740-9260204 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 78740-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
4 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 72362-90500 |
BU70..BUS |
1 | ||
| Common parts | ||||
| 71812-30010 | ||||
| 90159-40029 | ||||
| 90179-08039 | ||||
| 91526-40620 | ||||
| 91611-60820 | ||||
| 91651-60820 | ||||
| 91656-40616 | ||||
| 91656-40830 | ||||
| 93210-16016 | ||||
| 93312-15012 | ||||
| 93560-13512 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
(8409- )BUS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260804 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260603 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 79140-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260804 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79140-9260603 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79140-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79011-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260504 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79011-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79013-9260604 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260303 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260404 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79220-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 79240-9260704 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79140-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260203 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79140-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79140-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79021-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79021-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79021-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71092-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 71092-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 71092-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 79120-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79120-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79320-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79120-9260704 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 79340-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79240-9260503 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79240-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79340-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79340-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79240-9260303 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 79031-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79011-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79011-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79031-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79031-9260204 |
BU70..BUS FB,VL,W/*CS,BLUE,BLUE |
1 | ||
| 79011-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 79033-9260103 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260103 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 79013-9260404 |
BU70..BUS FB,BLUE,BLUE |
1 | ||
| 79033-9260204 |
BU70..BUS FB,W/*CS,BLUE,BLUE |
1 | ||
| 79033-9260003 |
BU70..BUS VL,W/*CS,GRAY,SHADOW GRAY |
2 | ||
| 79013-9260003 |
BU70..BUS VL,GRAY,SHADOW GRAY |
1 | ||
| 71049 - FRAME SUB-ASSY, REAR SEAT BACK, NO.5 | ||||
| 71049-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71049-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71049-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71049 - FRAME SUB-ASSY, REAR SEAT BACK, NO.5 | ||||
| 71049-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71049-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71049-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71049 - FRAME SUB-ASSY, REAR SEAT BACK, NO.5 | ||||
| 71049-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71049-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71049-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71427A - BOARD, REAR SEAT BACK, NO.5 | ||||
| 71427-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71427-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71427-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71427A - BOARD, REAR SEAT BACK, NO.5 | ||||
| 71427-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71427-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71427-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71427A - BOARD, REAR SEAT BACK, NO.5 | ||||
| 71427-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71427-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71427-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71429 - CUSHION, REAR SEAT BACK, A NO.5 | ||||
| 71429-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71429-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71429-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71429 - CUSHION, REAR SEAT BACK, A NO.5 | ||||
| 71429-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71429-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71429-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71429 - CUSHION, REAR SEAT BACK, A NO.5 | ||||
| 71429-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71429-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71429-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71432 - BOARD, REAR SEAT CUSHION, NO.5 | ||||
| 71432-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71432-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71432-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71432 - BOARD, REAR SEAT CUSHION, NO.5 | ||||
| 71432-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71432-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71432-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71432 - BOARD, REAR SEAT CUSHION, NO.5 | ||||
| 71432-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71432-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71432-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71434A - CUSHION, REAR SEAT BACK, B NO.5 | ||||
| 71434-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71434-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71434-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71434A - CUSHION, REAR SEAT BACK, B NO.5 | ||||
| 71434-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71434-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71434-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71434A - CUSHION, REAR SEAT BACK, B NO.5 | ||||
| 71434-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71434-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71434-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71439 - CUSHION, REAR SEET CUSHION, A NO.5 | ||||
| 71439-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71439-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71439-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71439 - CUSHION, REAR SEET CUSHION, A NO.5 | ||||
| 71439-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71439-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71439-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71439 - CUSHION, REAR SEET CUSHION, A NO.5 | ||||
| 71439-92123 |
BU70..BUS NO.1 SEAT |
1 | ||
| 71439-92124 |
BU70..BUS NO.2 SEAT |
1 | ||
| 71439-92122 |
BU70..BUS NO.3 SEAT |
2 | ||
| 71452 - STOP, REAR SEAT BACK | ||||
| 71452-92120 |
BU70..BUS |
4 | ||
| 71459 - CUSHION, REAR SEAT CUSHION, B NO.5 | ||||
| 71459-92123 |
BU70..BUS N0.1 SEAT |
1 | ||
| 71459-92122 |
BU70..BUS N0.3 SEAT |
2 | ||
| 71459-92124 |
BU70..BUS N0.2 SEAT |
1 | ||
| 71459 - CUSHION, REAR SEAT CUSHION, B NO.5 | ||||
| 71459-92123 |
BU70..BUS N0.1 SEAT |
1 | ||
| 71459-92122 |
BU70..BUS N0.3 SEAT |
2 | ||
| 71459-92124 |
BU70..BUS N0.2 SEAT |
1 | ||
| 71459 - CUSHION, REAR SEAT CUSHION, B NO.5 | ||||
| 71459-92123 |
BU70..BUS N0.1 SEAT |
1 | ||
| 71459-92122 |
BU70..BUS N0.3 SEAT |
2 | ||
| 71459-92124 |
BU70..BUS N0.2 SEAT |
1 | ||
| 71470 - FRAME ASSY, REAR SEAT CUSHION, FRONT | ||||
| 79102-9260001 |
BU70..BUS FR,BLACK,BLACK |
1 | ||
| 79202-9260001 |
BU70..BUS RR,BLACK,BLACK |
1 | ||
| 71470 - FRAME ASSY, REAR SEAT CUSHION, FRONT | ||||
| 79102-9260001 |
BU70..BUS FR,BLACK,BLACK |
1 | ||
| 79202-9260001 |
BU70..BUS RR,BLACK,BLACK |
1 | ||
| 71470A - FRAME ASSY, REAR SEAT CUSHION, REAR | ||||
| 79302-9260001 |
BU70..BUS LH,BLACK,BLACK |
1 | ||
| 79301-9260001 |
BU70..BUS RH,BLACK,BLACK |
1 | ||
| 71470A - FRAME ASSY, REAR SEAT CUSHION, REAR | ||||
| 79302-9260001 |
BU70..BUS LH,BLACK,BLACK |
1 | ||
| 79301-9260001 |
BU70..BUS RH,BLACK,BLACK |
1 | ||
| Common parts | ||||
| 71812-30010 | ||||
| 91651-60820 | ||||
| 91656-40620 | ||||
| 93510-14016 | ||||
| 93560-10410 | ||||
| 93720-14016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
