BU70LB-MD (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

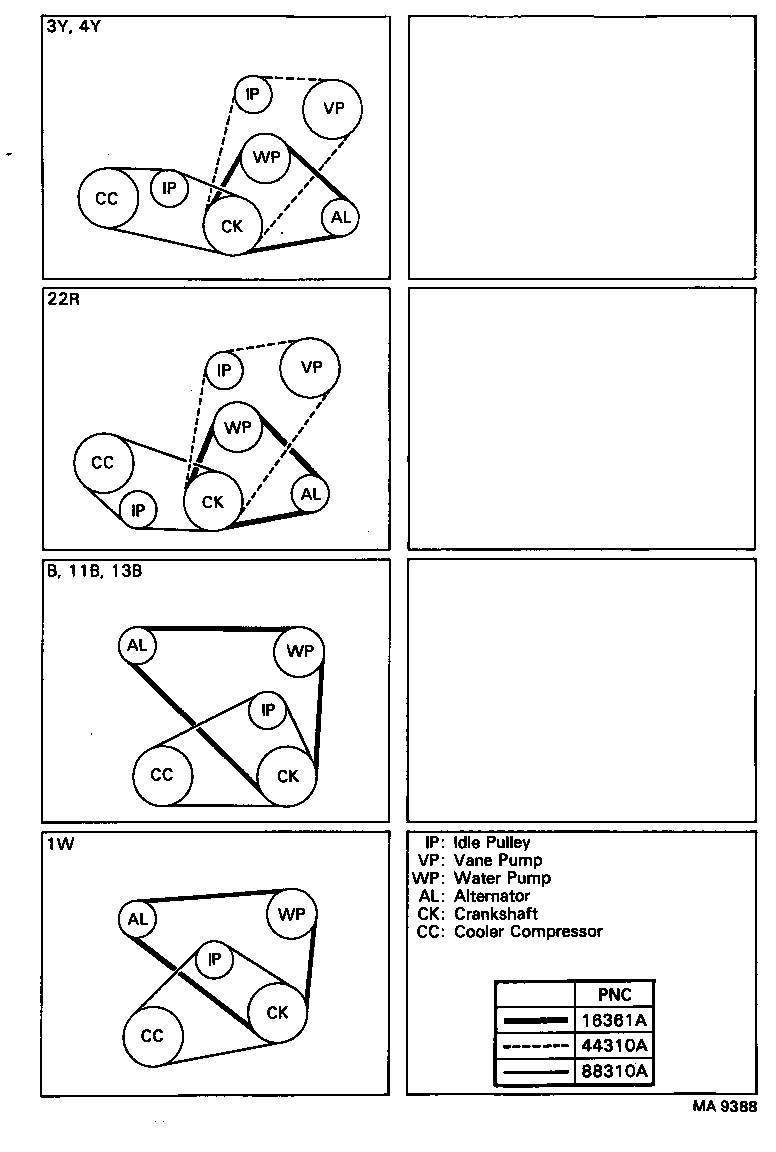

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99343-01195

B,11B,13B..BU6#,7#,8#..5F

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01030

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1

(8409- )

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99343-01195

B,11B,13B..BU6#,7#,8#..5F

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01030

BU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA

 1
